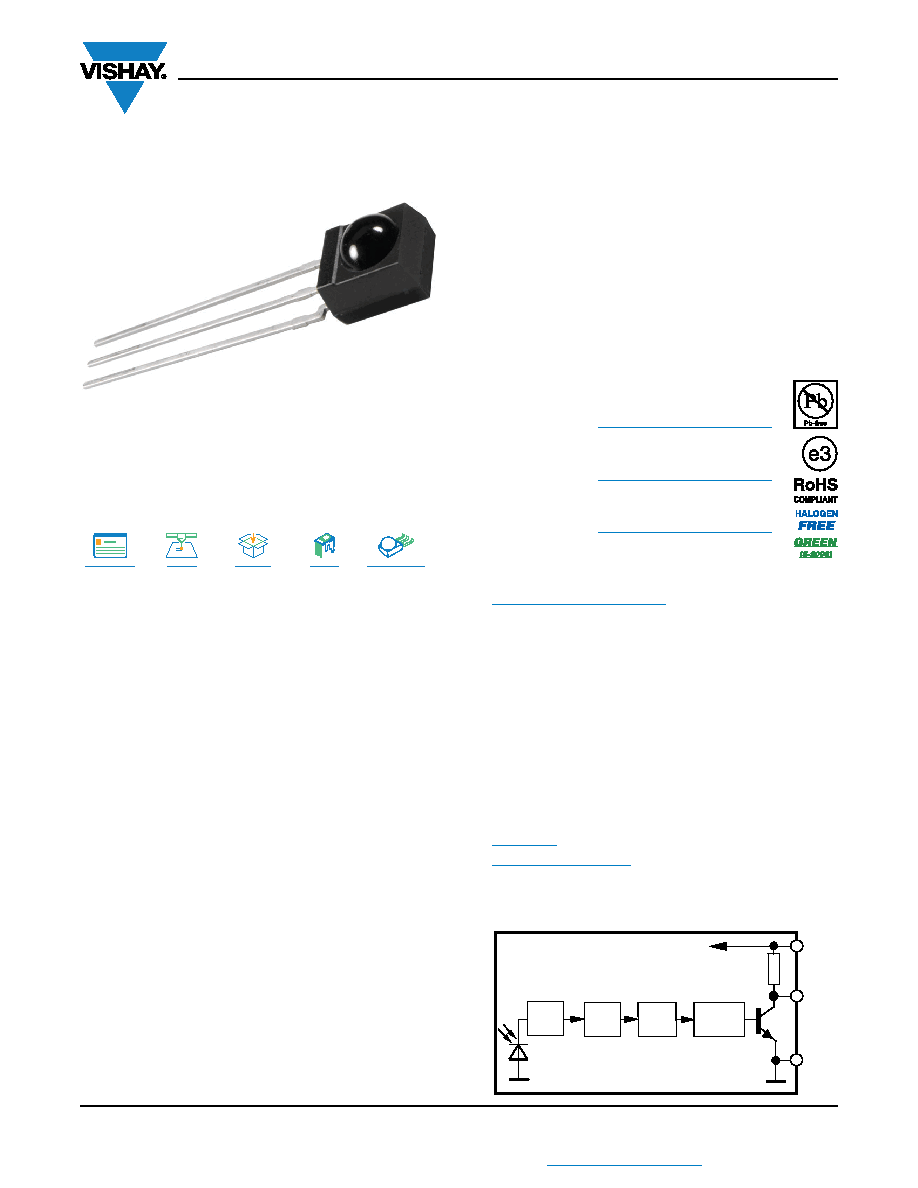

TSSP40..SS1XB

www.vishay.com

Vishay Semiconductors

Datasheet Values Refer to PCN-OPT-1224-2022

Rev. 2.0, 19-Aug-2022

1

Document Number: 82737

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

IR Receiver Module for Light Barrier Systems

LINKS TO ADDITIONAL RESOURCES

DESCRIPTION

The

TSSP40..SS1XB

are

compact

infrared

detector

modules for presence sensing applications. They provide an

active low output in response to infrared bursts at 940 nm.

The TSSP40..SS1XB are 20 x less sensitive than the

TSSP40.., for ease of use in reflective applications at less

than 1 m range where high sensitivity is not needed and

can complicate the design.

This component has not been qualified to automotive

specifications.

FEATURES

• Presence sensor: up to 2 m distance,

find more info at: www.vishay.com/doc?49009

• Light barrier: up to 12 m distance, TSAL6200

with IF = 50 mA,

find more info at: www.vishay.com/doc?49650

• Fast proximity: up to 2 m range at 5 ms

response time,

find more info at: www.vishay.com/doc?82741

• Supply voltage: 2.0 V to 5.5 V

• Material categorization:

for

definitions

of

compliance

please

see

www.vishay.com/doc?99912

APPLICATIONS

• Reflective sensors for hand dryers, towel or soap

dispensers, water faucets, toilet flush

• Vending machine fall detection

• Security and pet gates

• Person or object vicinity switch

• Fast proximity sensors for toys, robotics, drones, and

other consumer and industrial uses

DESIGN SUPPORT TOOLS

• 3D models

• Window size calculator

BLOCK DIAGRAM

23196

23196

Product Page

Marking

Packages

Holders

Bends and Cuts

33 k

Ω

2

3

1

V

S

OUT

Demo-

GND

pass

AMP

Input

PIN

Band

dulator

16833_8
