TSSP530..DF1P

www.vishay.com

Vishay Semiconductors

Datasheet Values Refer to PCN-OPT-1225-2022-REV-0

Rev. 1.2, 17-Jan-2023

5

Document Number: 82893

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

The typical application of these devices is a reflective or

beam break sensor with active low “detect” or “no detect”

information contained in its output. The TSSP53056DF1P is

also suitable for fast (~ 5 ms) proximity sensor applications

for ranges between 10 cm and 2 m. Please see application

note “Vishay’s TSSP4056 Sensor for Fast Proximity

Sensing” (www.vishay.com/doc?82741).

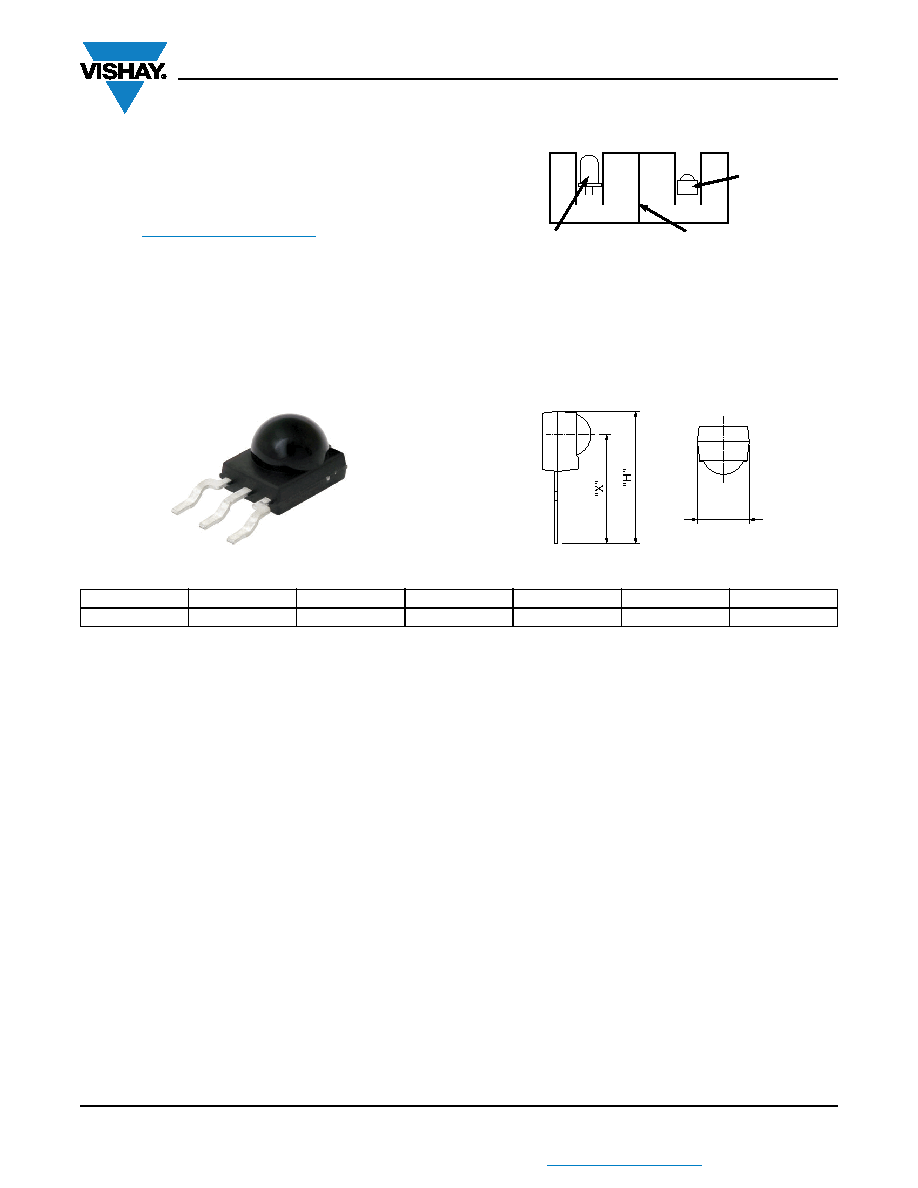

Example for a sensor hardware:

There should be no common window in front of the emitter

and detector in order to avoid crosstalk via guided light

through the window.

BENT LEADS: H = 11.4 mm, W = 5.4 mm, X = 8.85 mm

IR emitter

IR detector

Separation to avoid

crosstalk by stray light inside

the housing

22911

22911

20258

“W”

NAME

LENS AXIS (X)

VIEW

TYPE

HEIGHT (H)

WIDTH (W)

DEPTH (D)

DF1P

8.85

-

Bend

11.4

5.4

-
