General description

5.1

Block diagram

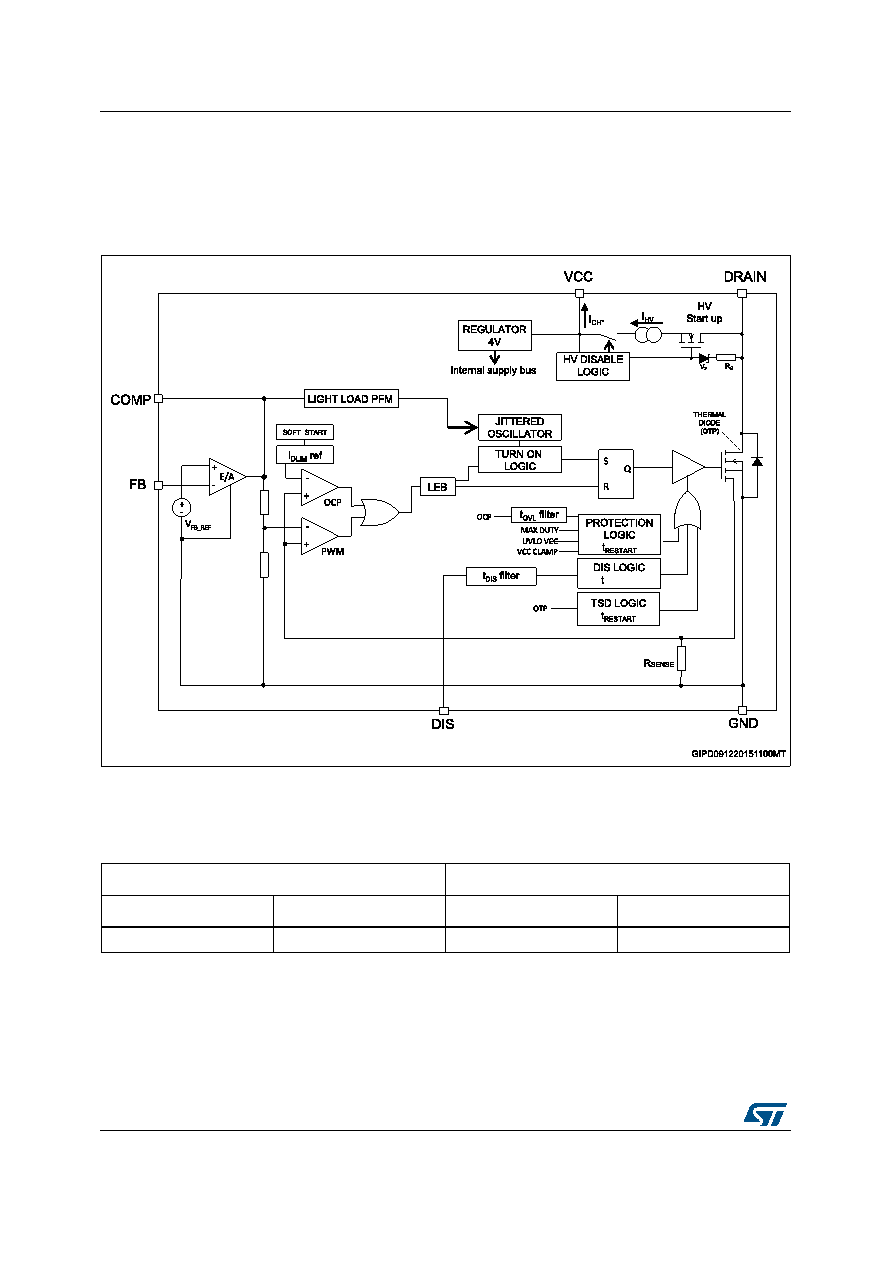

Figure 25. Block diagram

5.2

Typical power capability

Table 8. Typical power

Vin: 230 VAC

Vin: 85-265 VAC

Adapter(1)

Open frame(2)

Adapter

Open frame

10 W

12 W

6 W

7 W

1. Typical continuous power in non-ventilated enclosed adapter measured at 50 °C ambient.

2. Maximum practical continuous power in an open frame design at 50 °C ambient, with adequate heat-sinking.
