AOZ9510QI

Ordering Information

All AOS Products are offering in packaging with Pb-free plating and compliant to RoHS standards.

Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.

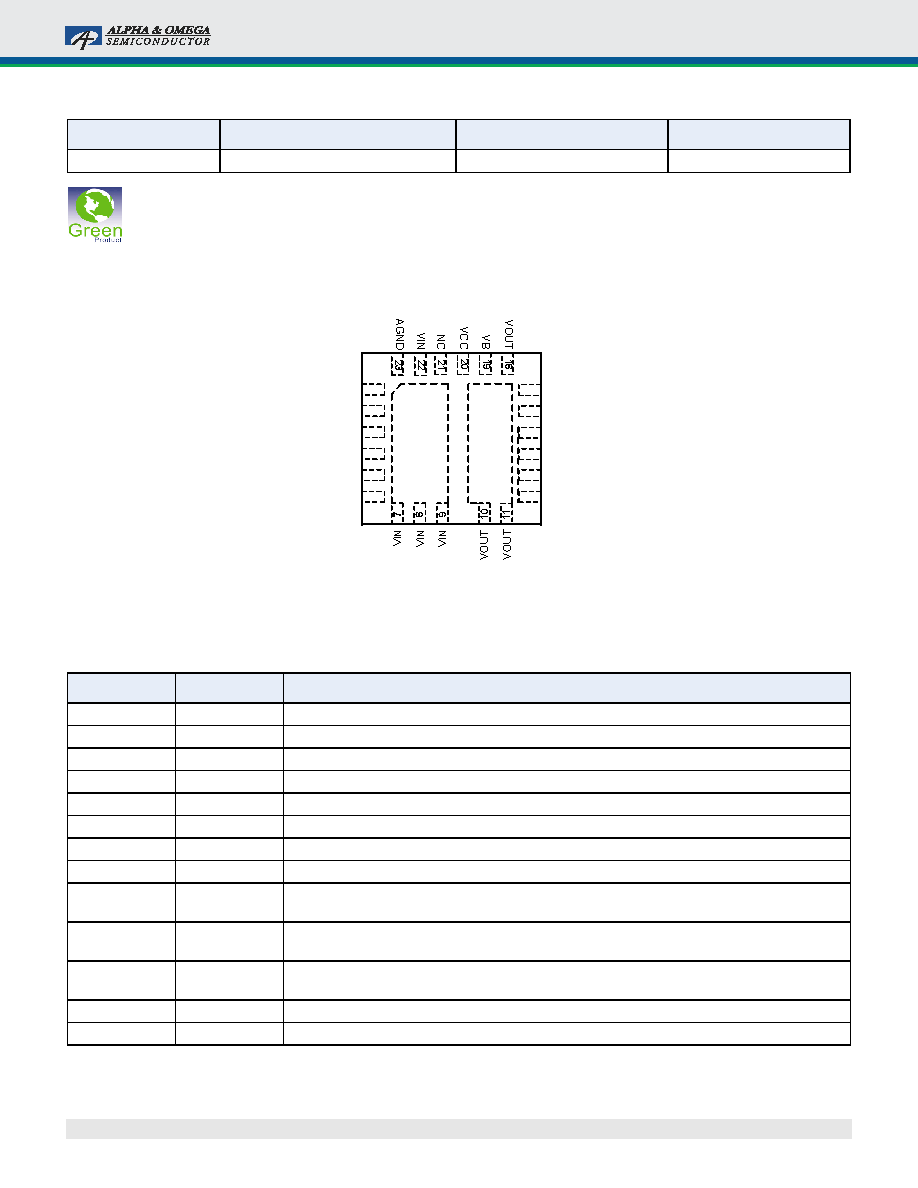

Pin Configuration

23-Pin 4mm x 4mm QFN

(Top View)

Pin Description

Part Number

Ambient Temperature Range

Package

Environmental

AOZ9510QI

-40°C to +85°C

23-Pin 4x4 QFN

RoHS

Pin Number

Pin Name

Pin Function

1

DVS2

Adjustable gate drive sink current.

2

DVS1

Adjustable gate drive source current.

3

NC

No connect, keep it floating.

4

HIN

PWM input for high-side MOSFET.

5

LIN

PWM input for low-side MOSFET.

6

VTP

Junction temperature monitor

7, 8, 9, 22

VIN

Supply input. All IN pins must be connected together.

10,11,16,17,18

VOUT

Motor drive output.

12, 13, 14, 15

PGND

Power ground. Reserved one 0603 X7R ceramic capacitor (0.1uF~1uF) between PGND and

AGND is needed.

19

VB

Bootstrap capacitor connection. Connect an external capacitor between VB and VOUT for

supplying high-side MOSFET.

20

VCC

Supply input for analog functions. Bypass VCC to AGND with a 0.1uF~10uF ceramic capac-

itor and as close to VCC pin as possible.

21

NC

No connect, keep it floating.

23

AGND

Analog ground.

1

2

3

4

5

6

DVS2

DVS1

NC

HIN

LIN

VTP

16

15

13

12

VOUT

VOUT

VOUT

PGND

PGND

VIN

14

PGND

17

PGND
