Ordering Information

Part Number

Temperature Range

Package

Environmental

AOZ9530QV

-40 °C to +125 °C

QFN3x3-18L

Green

Green

Product

AOS products are offered in packages with Pb-free plating and compliant to RoHS standards.

Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.

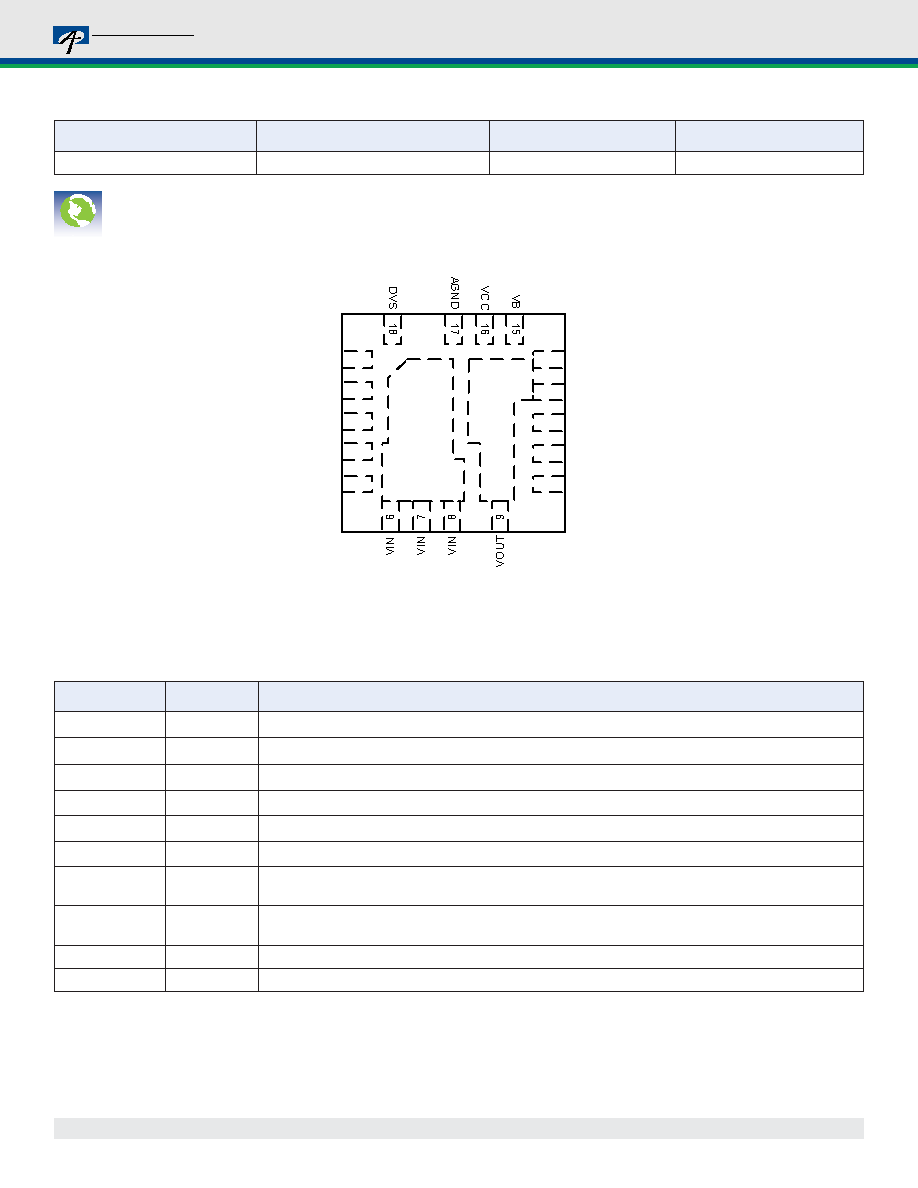

Pin Configuration

1

2

3

4

5

10

11

12

13

14

HIN

LIN

NC

VIN

VIN

PGND

PGND

PGND

VOUT

VOUT

VIN

VOUT

Figure 1. AOZ9530QV

QFN3x3-18L

Pin Description

Pin Number

Pin Name

Pin Function

1

HIN

PWM input for high-side MOSFET.

2

LIN

PWM input for low-side MOSFET.

3

NC

No connect.

4, 5, 6, 7, 8

VIN

Supply input. All VIN pins must be connected together.

9, 13, 14

VOUT

Motor drive output. All VOUT pins must be connected together.

10, 11, 12

PGND

Power ground.

15

VB

Bootstrap capacitor connection. Connect an external capacitor between VB and VOUT for

supplying high-side MOSFET.

16

VCC

Supply input for analog functions. Bypass VCC to AGND with a 0.1μF~10μF ceramic capacitor

and as close to VCC pin as possible.

17

AGND

Analog ground.

18

DVS

Adjustable gate drive source/sink current.
