11

Datasheet

ANT-W63WS4-ccc

Average Gain

Average gain (Figure 14), is the average of all antenna gain in 3-dimensional space at each frequency,

providing an indication of overall performance without expressing antenna directionality.

-20

-15

-10

-5

0

5

10

2400

2800

3200

3600

4000

4400

4800

5200

5600

6000

6400

6800

7200

Frequency (MHz)

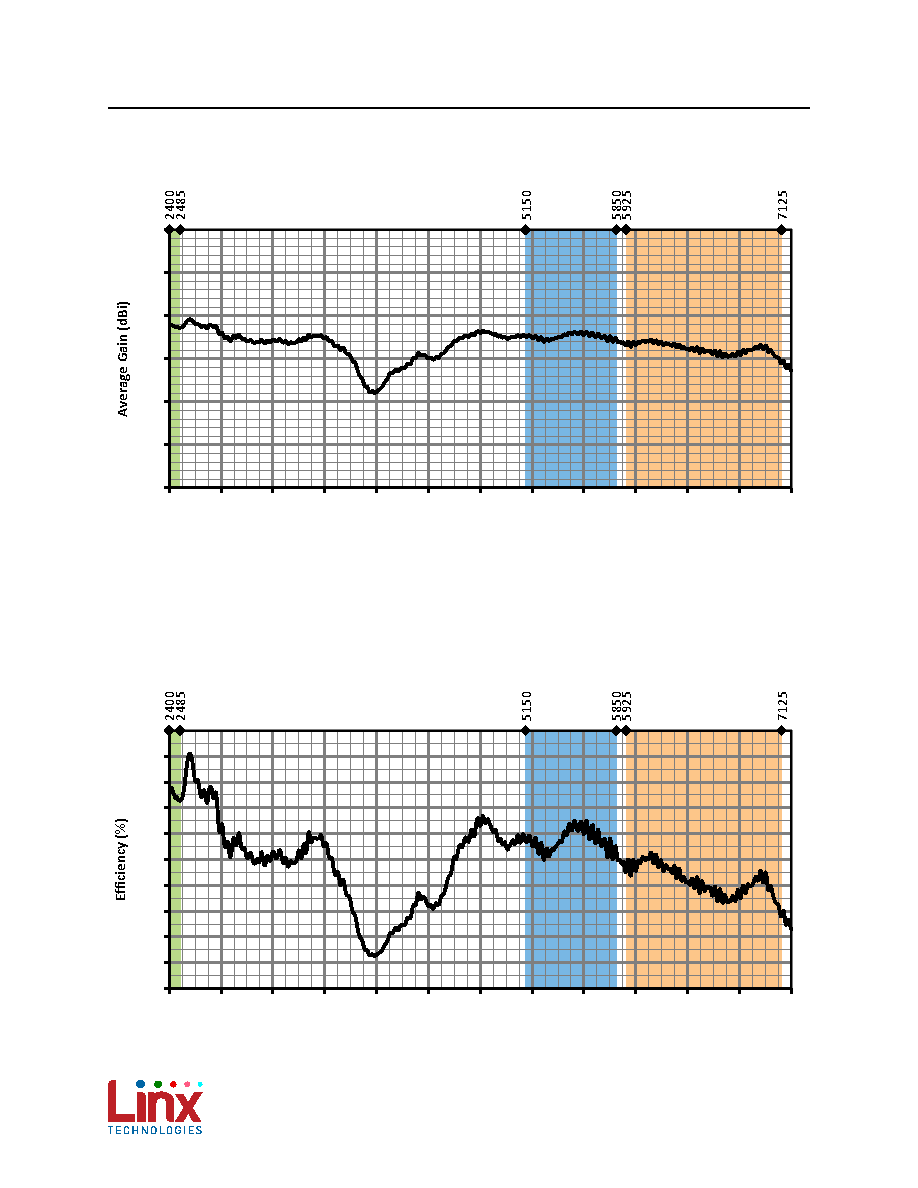

Figure 14. ANT-W63WS4-ccc Antenna Average Gain, Edge-Bent

Radiation Efficiency

Radiation efficiency (Figure 15), shows the ratio of power delivered to the antenna relative to the power

radiated at the antenna, expressed as a percentage, where a higher percentage indicates better performance

at a given frequency.

0

10

20

30

40

50

60

70

80

90

100

2400

2800

3200

3600

4000

4400

4800

5200

5600

6000

6400

6800

7200

Frequency (MHz)

Figure 15. ANT-W63WS4-ccc Antenna Efficiency, Edge-Bent
