ECO-4

Specifications (measured @ t

amb

= 25°C, nom. VIN, full load and after warm-up unless otherwise stated)

RSK-RUW

Series

DC/DC Converter

DIMENSION AND PHYSICAL CHARACTERISTICS

Parameter

Type

Value

Material

case

black plastic, (UL94 V-0)

potting

PU, (UL94 V-0)

PCB

FR4, (UL94 V-0)

Dimension (LxWxH)

21.8 x 9.2 x 11.1mm

Weight

4.7g typ.

2.54

Ø1.0

1 2 3

5 6 7 8

1 2 3

5 6 7 8

7X 2.54

□0.64±0.05

21.8

embossed logo

22.4 min.

2.01

PACKAGING INFORMATION

Parameter

Type

Value

Packaging Dimension (LxWxH)

tube

520.0 x 11.5 x 19.0mm

Packaging Quantity

tube

22pcs

Storage Temperature Range

-50°C to +125°C

Storage Humidity

non-condensing

95% RH max.

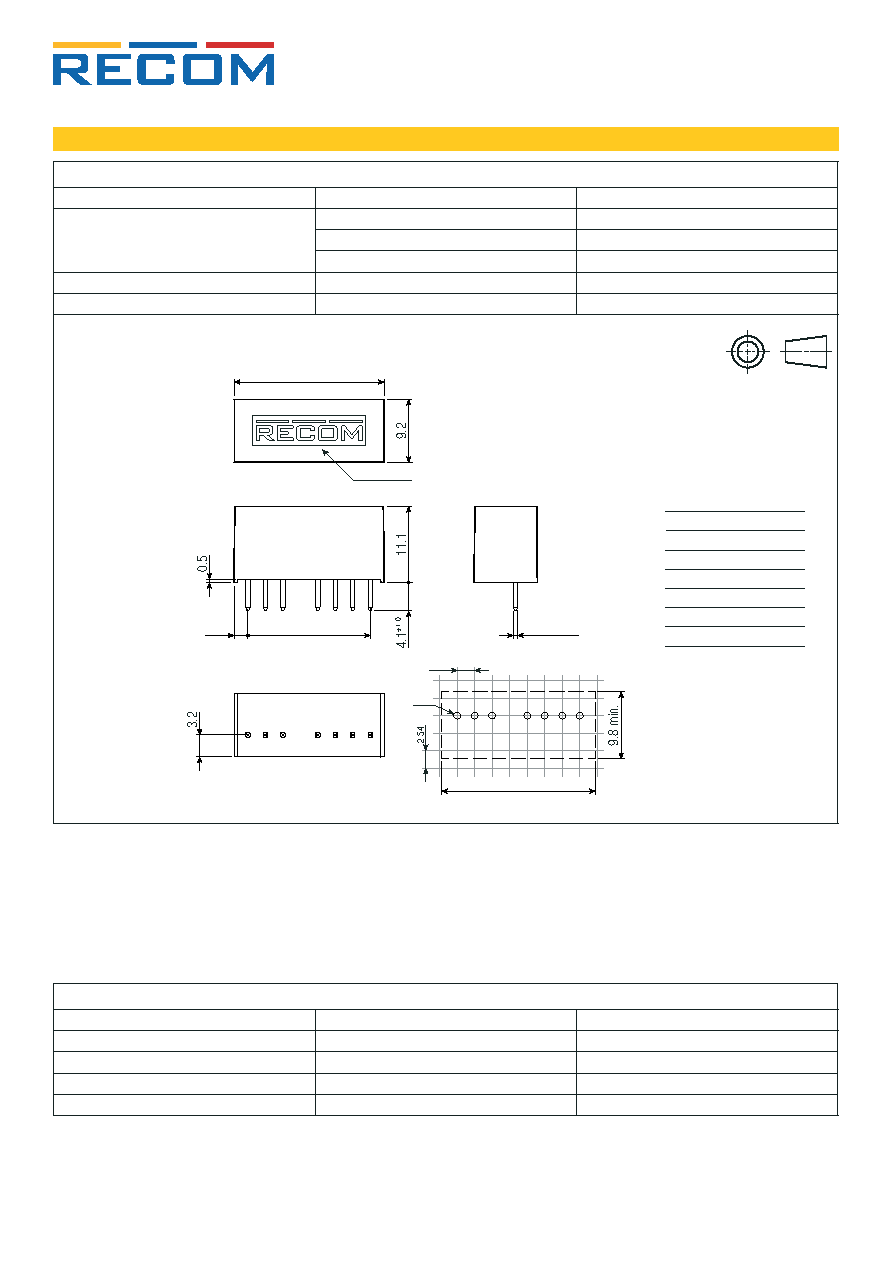

Dimension Drawing (mm)

Recommended Footprint Details

Pinning Information

Pin #

Single

1

-Vin

2

+Vin

3

CTRL

5

NC

6

+Vout

7

-Vout

8

NC

NC= no connection
