INDUCTORS

SPM5030VT-D type

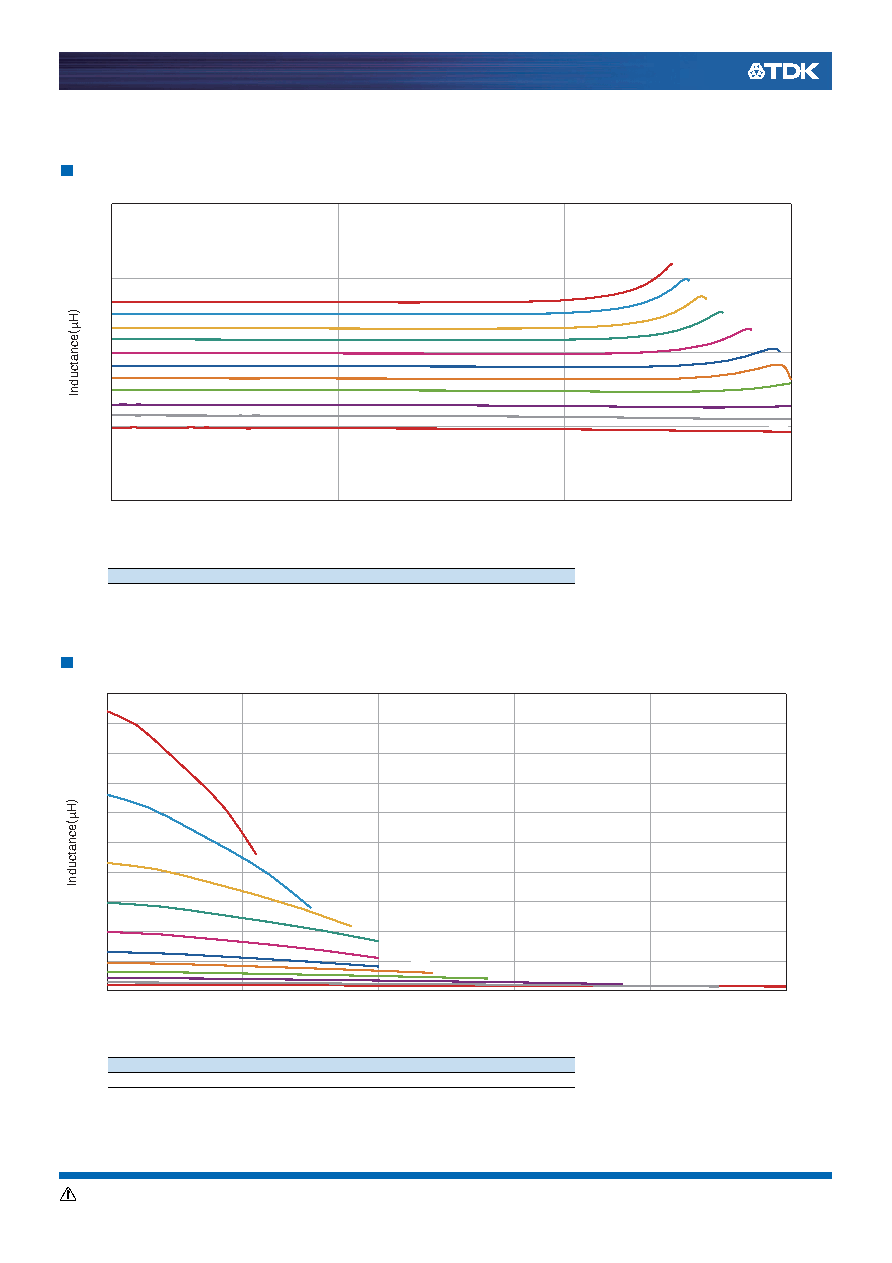

L FREQUENCY CHARACTERISTICS

Measurement equipment

＊ Equivalent measurement equipment may be used.

L VS. DC BIAS CHARACTERISTICS

Measurement equipment

＊ Equivalent measurement equipment may be used.

Product No.

Manufacturer

4294A

Keysight Technologies

Product No.

Manufacturer

4284A+42841A

Keysight Technologie

Frequency(kHz)

0.01

0.1

1

10

100

100

1000

10000

100000

4R7

R10

3R3

2R2

1R5

1R0

R68

R47

R33

R22

R15

DC current(A)

010

20

3050

40

0

0.5

1

1.5

2

2.5

3

3.5

4

4.5

5

R10

4R7

3R3

2R2

1R5

1R0

R68

R47

R33

R22

R15
