 13 / 23 page
background image
DocID029059 Rev 1
13/23
STGIPL30C60
Electrical characteristics
3.1.1
NTC thermistor
Below the relation between resistance variation vs temperature:
Equation 1:
Where T is the temperature in Kelvin.
Table 14. NTC thermistor
Symbol
Parameter
Test conditions
Min.
Typ.
Max.
Unit
R25
Resistance
T = 25 °C
5
k
Ω
R125
Resistance
T = 125 °C
300
Ω
BB-constant
T = 25 °C to 85 °C
3340
K
T
Operating temperature
-40
125
°C
RT
()
R
25
e
B
1
T
---
1
298
----------
–


⋅
=

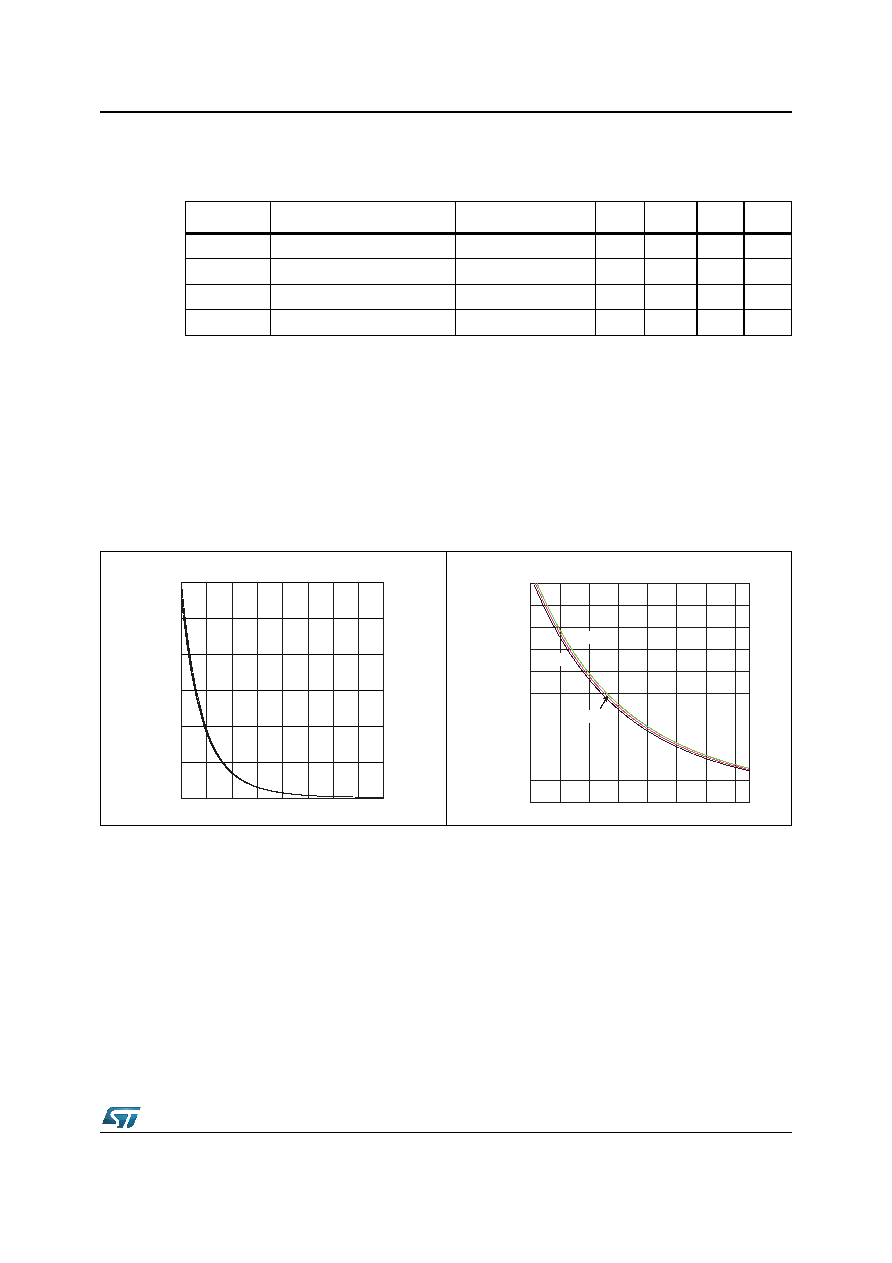

Figure 7. NTC resistance vs temperature
Figure 8. NTC resistance vs temperature zoom
