STM32U535NET6QTR 데이터시트(PDF) 127 Page - STMicroelectronics |
|
|
|||||||||||||||||||||||||||||
STM32U535NET6QTR 데이터시트(HTML) 127 Page - STMicroelectronics |
|
|

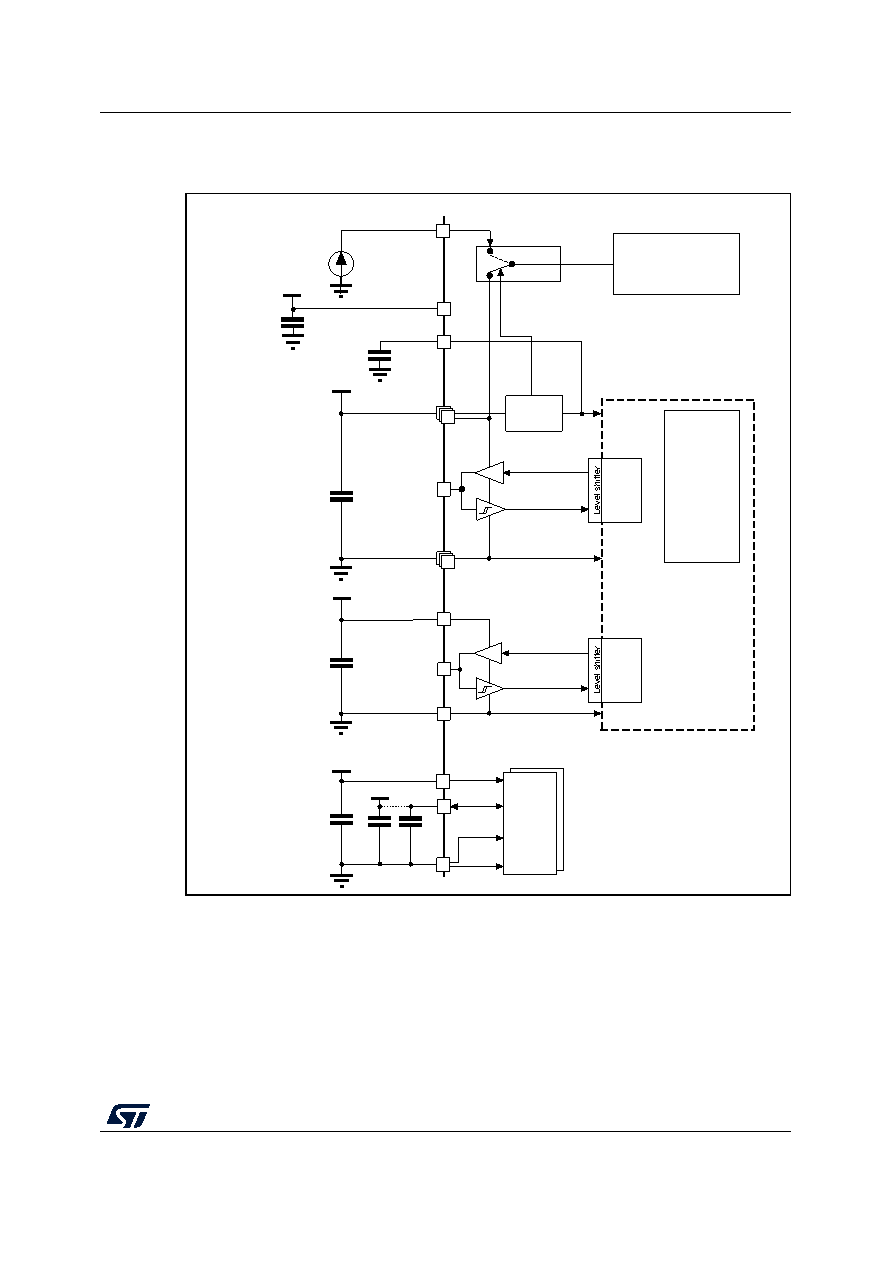

127 / 278 page  DS14217 Rev 1 127/278 STM32U535xx Electrical characteristics 253 5.1.6 Power supply scheme Figure 23. STM32U535xx power supply scheme (without SMPS) MSv64358V3 VDDIO2 VDD I/O logic Kernel logic (CPU, digital and memories) Backup circuitry (LSE, RTC, TAMP backup registers, backup SRAM) IN OUT LDO regulator GPIOs 1.65 – 3.6 V IN OUT GPIOs n x 100 nF + 1 x 10 μF m x 100 nF I/O logic + 4.7 μF m x VDDIO2 m x VSS n x VSS n x VDD VBAT VCORE Power switch VDDIO2 VDDIO1 ADCs/ DACs/ OPAMPs/ COMPs/ VREFBUF VREF+ VREF- VDDA 100 nF +1 μF VDDA VSSA VREF 100 nF+ 1 μF VCORE 4.7 μF VCAP VDDUSB VDDUSB 100 nF |
|
