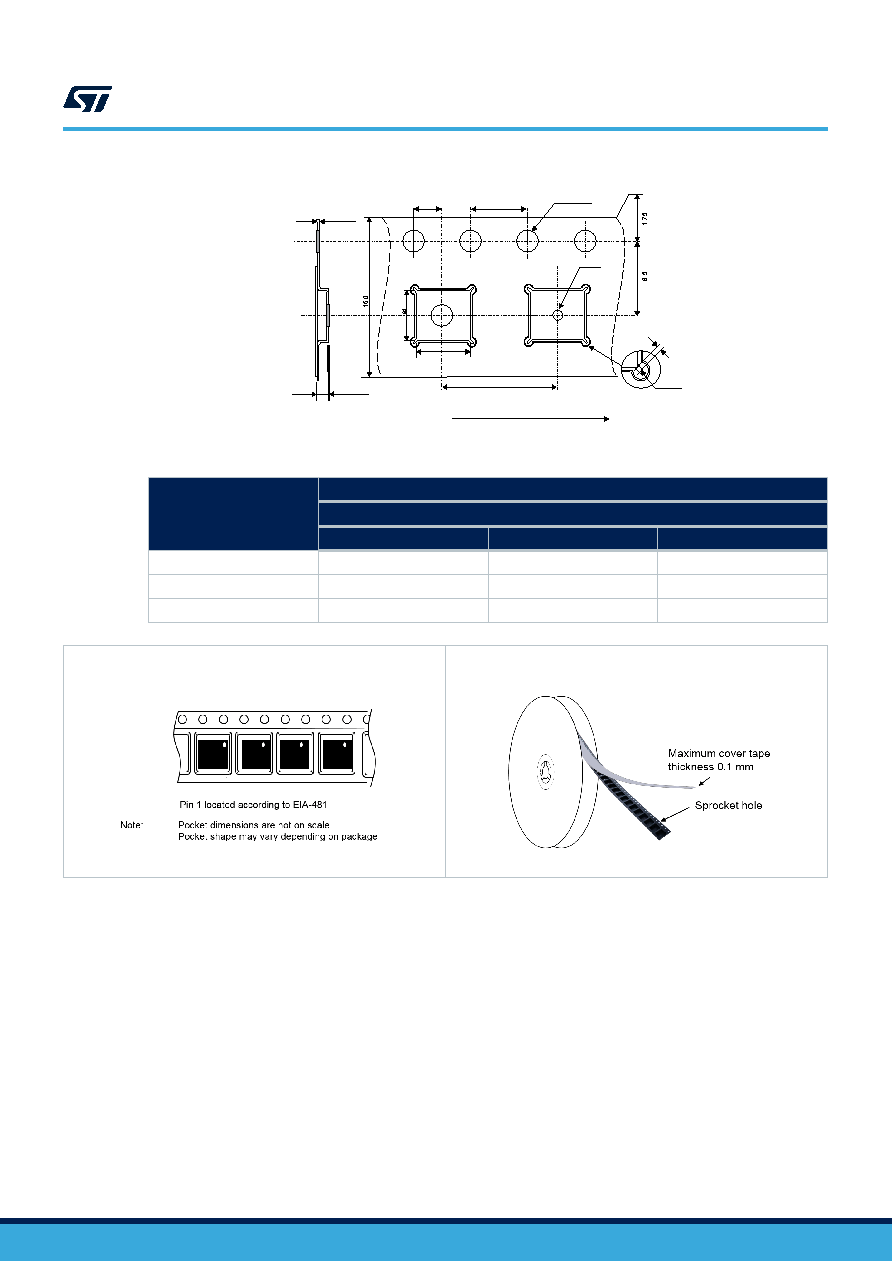

Figure 13. Tape and reel outline
User direction of unreeling
All dimensions are typical values in mm
4.0
8.0
A0
2.0
0.25
Ø 1.5
K0
0.30
Ø 1.5
Ø 1.5
Table 19. Tape and reel mechanical data
Ref.
Dimensions
Millimeters
Min.
Typ.
Max.
A0
3.76
3.81
3.86
B0
3.76
3.81
3.86
K0
0.71
0.76
0.81
Figure 14. Package orientation in reel
Figure 15. Tape and reel orientation
TCPP02-M18
QFN18L 3.5x3.5 mm package information
DS13787 - Rev 4
page 21/27
