User Guide

EVAL-AD74115H

SOFTWARE QUICK START PROCEDURES

analog.com

Rev. 0 | 6 of 24

ACCESSING THE AD74115H EVALUATION

SOFTWARE GRAPHICAL USER INTERFACE

(GUI)

A MyAnalog account is required to gain access to the AD74115H

evaluation software, which is used to communicate with the EVAL-

AD74115H-ARDZ. Register for a MyAnalog account here. Once

your account is activated, contact the Analog Devices, Inc., sales

team to request access to the AD74115H evaluation software.

Download and extract the file from the Special Resources

section in your MyAnalog account to your PC. Run the

AD74115H_Eval_Software_setup executable. Once installation is

complete, restart the PC before launching the GUI.

CONFIGURING THE EVAL-AD74115H-ARDZ

To set up the EVAL-AD74115H-ARDZ, take the following steps:

1. Set VIO_ADJUST to 3.3 V using the P14 header on the SDP-

K1 board.

2. Connect a USB cable to the PC and then to the SDP-K1 board.

3. Connect the SDP-K1 board to the EVAL-AD74115H-ARDZ.

4. Power up the EVAL-AD74115H-ARDZ with the relevant power

supplies.

If not opened already, open the AD74115H evaluation software

GUI. The GUI displays a green indicator to confirm that the

AD74115H is connected (see Figure 3).

5. Click START to begin configuration.

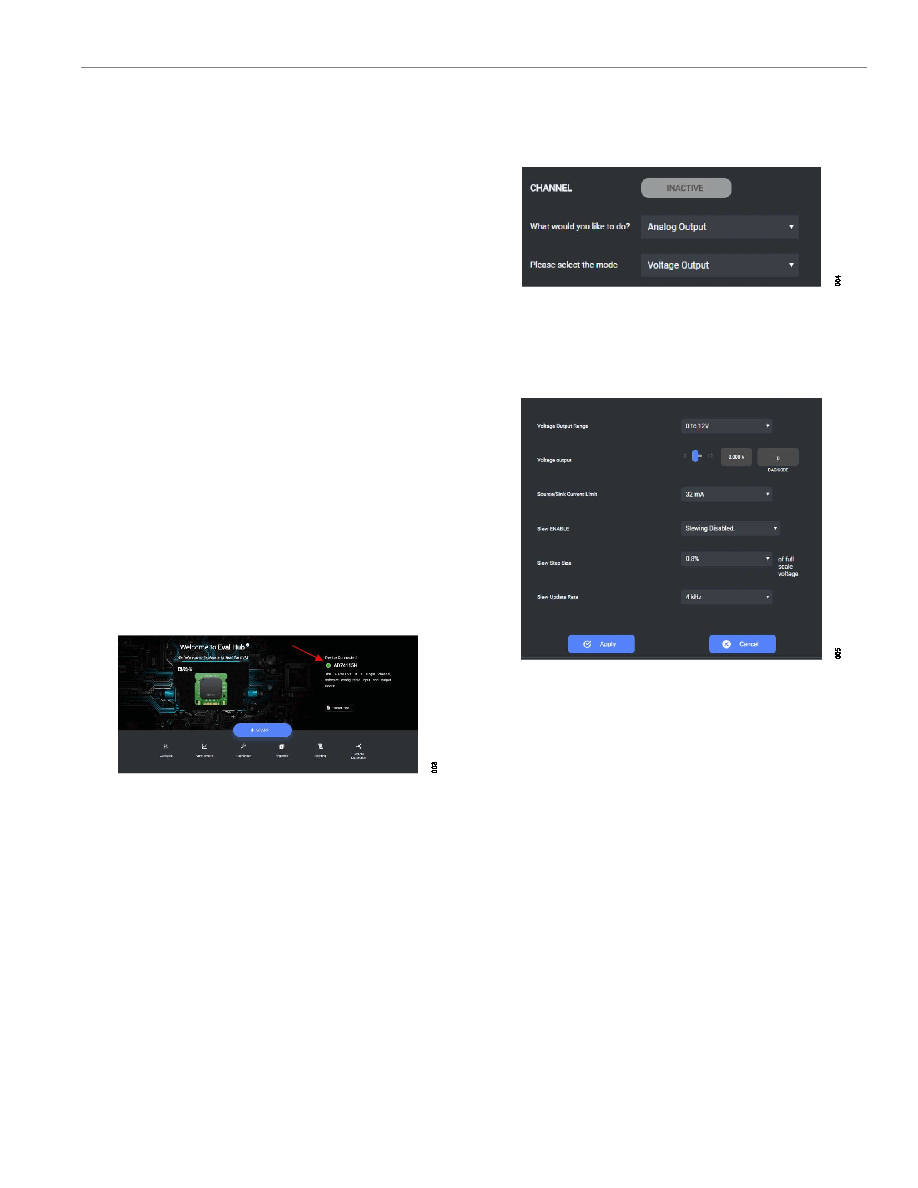

Figure 3. AD74115H Evaluation Software Start Page

USING THE SOFTWARE FOR EVALUATION

Configure Tab

Use The Configure tab to configure the channel of the AD74115H.

The channel can be configured as described in the AD74115H data

sheet. Use the dropdown menus to configure the required function

(see Figure 4).

Figure 4. Channel Function View

When the function is selected, the associated advanced settings

are displayed (see Figure 5). Click Apply to update the device with

the selected settings.

Figure 5. Channel Function Advanced Settings

View Results Tab

When the channel configuration is applied, click the View Results

tab to see the channel monitor. Results from the selected channel

measurement are shown in the CONVERSION 1 graph. CONVER-

SION 2 can also be configured using the available dropdown me-

nus. This conversion is typically used for auxiliary measurements

(see Figure 6).
