ADL5310
Rev. A | Page 9 of 20
–25
–20
–15
–10
–5
0
5
10
15
20
25
–40 –30 –20 –10
0
20
60
10
30
40
50
70
80
90
TEMPERATURE (°C)
MEAN + 3
σ
MEAN – 3
σ

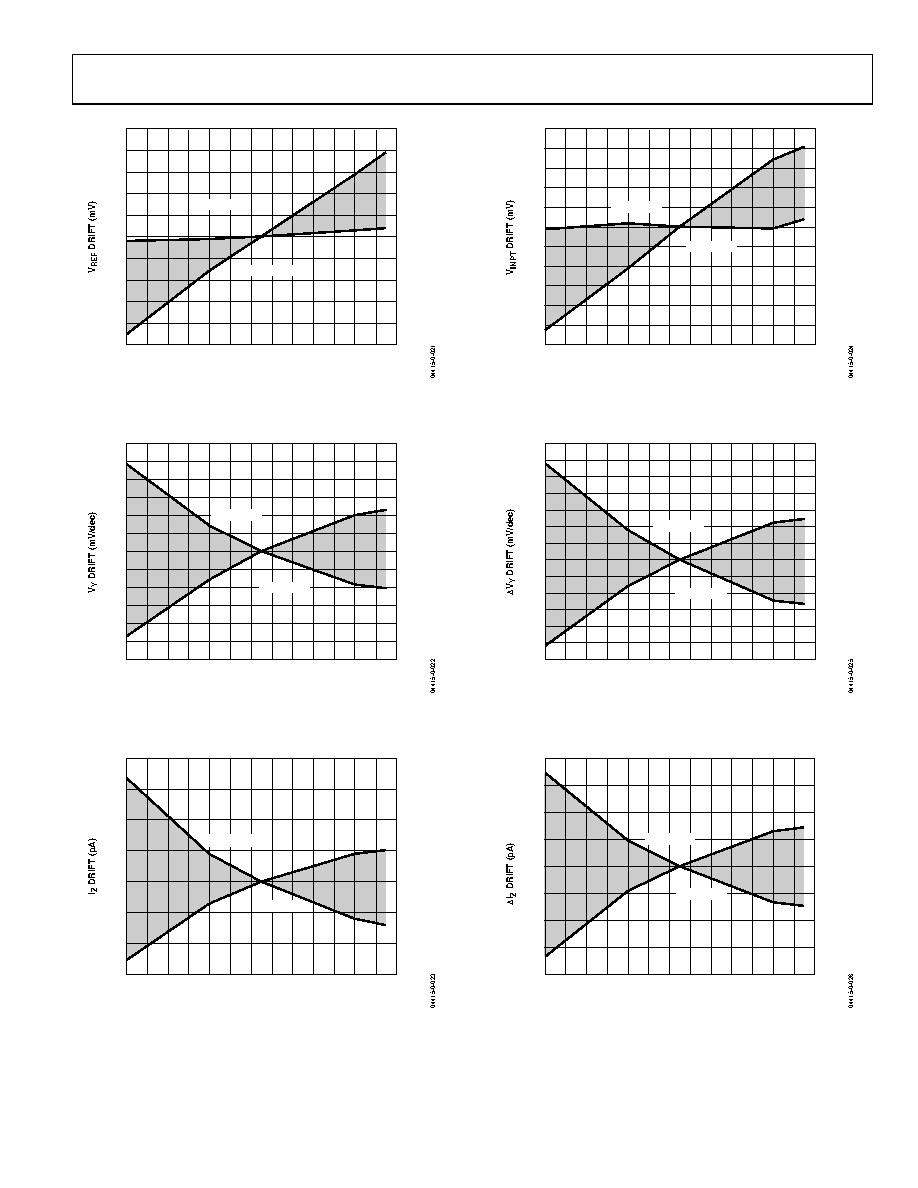

Figure 21. VREF Drift vs. Temperature (3σ to Either Side of Mean)
Normalized to 25°C
–6
–4
–2
–3
–5
0
–1
2
1
4
3
6
5
–40 –30 –20 –10
0
20
60
10
30
40
50
70
80
90
TEMPERATURE (°C)
MEAN + 3
σ
MEAN – 3
σ
Figure 22. Slope Drift vs. Temperature (3σ to Either Side of Mean)
Normalized to 25°C
–150
–100
–50
0
50
100
150
200
–40 –30 –20 –10
0
20
60
10
30
40
50
70
80
90
TEMPERATURE (°C)
MEAN + 3
σ
MEAN – 3
σ
Figure 23. Intercept Drift vs. Temperature
(3σ to Either Side of Mean) Normalized to 25°C
–5
–6
–3
1
3
5
–1
–4
0
2
4
–2
–40 –30 –20 –10
0
20
60
10
30
40
50
70
80
90
TEMPERATURE (°C)
MEAN + 3
σ
MEAN – 3
σ
Figure 24. VINPT Drift vs. Temperature (3σ to Either Side of Mean)
Normalized to 25°C
–6
–5
–3
1
3
5
6
7
–1
–4
0
2
4
–2
–40 –30 –20 –10
0
20
60
10
30
40
50
70
80
90
TEMPERATURE (°C)
MEAN + 3
σ
MEAN – 3
σ
Figure 25. Slope Mismatch Drift vs. Temperature
(VY1 – VY2, 3σ to Either Side of Mean) Normalized to 25°C
–200
–150
–100
–50
0
50
100
150
200
–40 –30 –20 –10
0
20
60
10
30
40
50
70
80
90
TEMPERATURE (°C)
MEAN + 3
σ
MEAN – 3
σ
Figure 26. Intercept Mismatch Drift vs. Temperature
(IZ1 – IZ2, 3σ to Either Side of Mean) Normalized to 25°C
