88C12L-AF5-R datasheet(5/16 Pages) UTC

5 / 16 page

88CXX

CMOS IC

UNISONICTECHNOLOGIESCO.,LTD

www.unisonic.com.tw

QW-R502-040,A

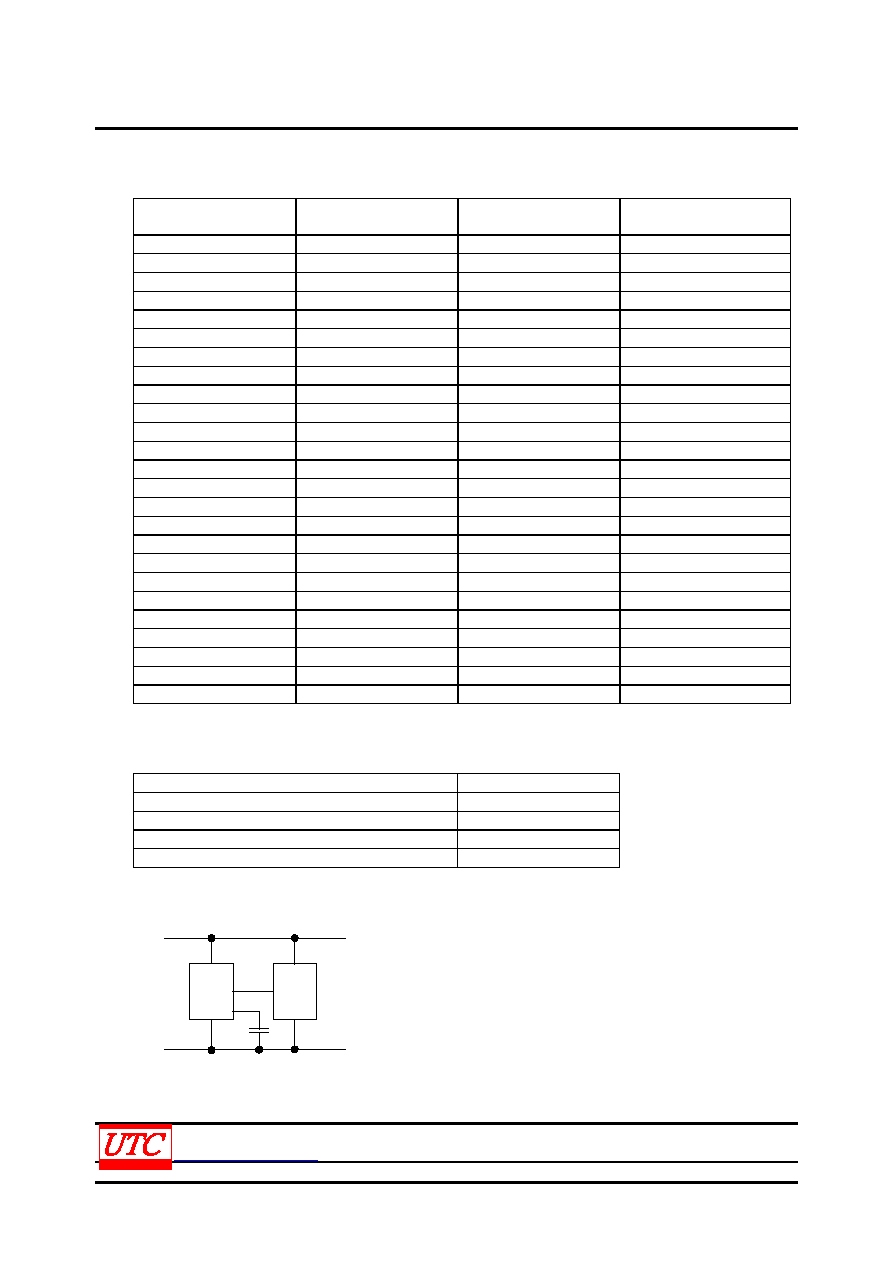

DECTECTION VOLTAGE RANGE vs HYSTERESIS WIDTH

DETECTION VOLTAGE

RANGE (V)

HYSTERESIS WIDTH

VHYS TYP (V)

DETECTION VOLTAGE

RANGE (V)

HYSTERESIS WIDTH

VHYS TYP (V)

1.1V±2.0%

0.055

3.6V±2.0%

0.180

1.2V±2.0%

0.060

3.7V±2.0%

0.185

1.3V±2.0%

0.065

3.8V±2.0%

0.190

1.4V±2.0%

0.070

3.9V±2.0%

0.195

1.5V±2.0%

0.075

4.0V±2.0%

0.200

1.6V±2.0%

0.080

4.1V±2.0%

0.205

1.7V±2.0%

0.085

4.2V±2.0%

0.210

1.8V±2.0%

0.090

4.3V±2.0%

0.215

1.9V±2.0%

0.095

4.4V±2.0%

0.220

2.0V±2.0%

0.100

4.5V±2.0%

0.225

2.1V±2.0%

0.105

4.6V±2.0%

0.230

2.2V±2.0%

0.110

4.7V±2.0%

0.235

2.3V±2.0%

0.115

4.8V±2.0%

0.240

2.4V±2.0%

0.120

4.9V±2.0%

0.245

2.5V±2.0%

0.125

5.0V±2.0%

0.250

2.6V±2.0%

0.130

5.1V±2.0%

0.255

2.7V±2.0%

0.135

5.2V±2.0%

0.260

2.8V±2.0%

0.140

5.3V±2.0%

0.265

2.9V±2.0%

0.145

5.4V±2.0%

0.270

3.0V±2.0%

0.150

5.5V±2.0%

0.275

3.1V±2.0%

0.155

5.6V±2.0%

0.280

3.2V±2.0%

0.160

5.7V±2.0%

0.285

3.3V±2.0%

0.165

5.8V±2.0%

0.290

3.4V±2.0%

0.170

5.9V±2.0%

0.295

3.5V±2.0%

0.175

6.0V±2.0%

0.300

OUTPUT CONFIGURATIONS

Implementation

CMOS

With different power supplies

With active low reset CPUs

Yes

With active high reset CPUs

With voltage divider variable resistors

Example with one power supply

VDD

V/D

CMOS

Vss

CPU

OUT
