STBC08

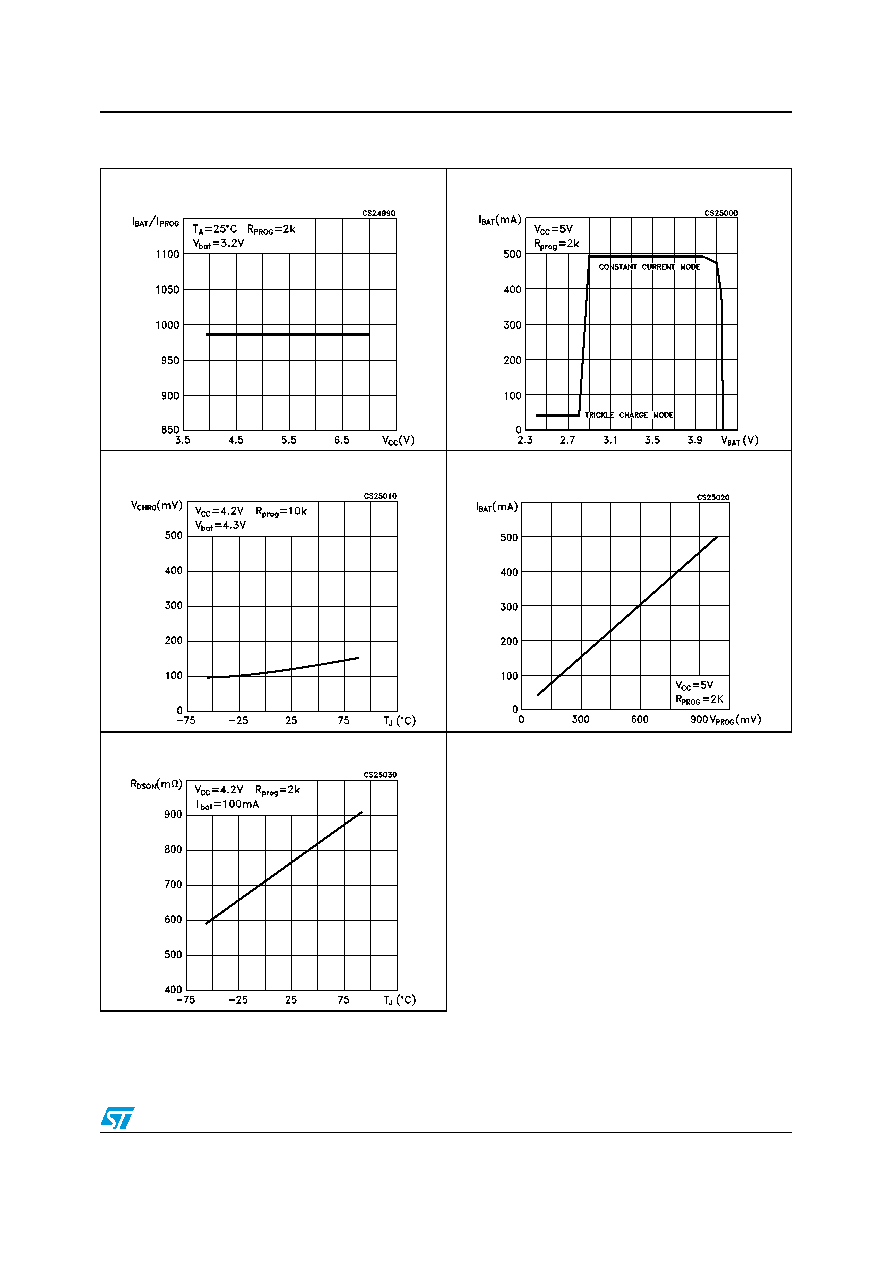

Typical performance characteristics
9/17
Figure 10. IBAT/IPROG vs VCC
Figure 11. IBAT vs VBAT
Figure 12. VCHRG vs temperature (CHRG pin
output low voltage)
Figure 13. IBAT vs VPROG
Figure 14. Power FET “ON” resistance
