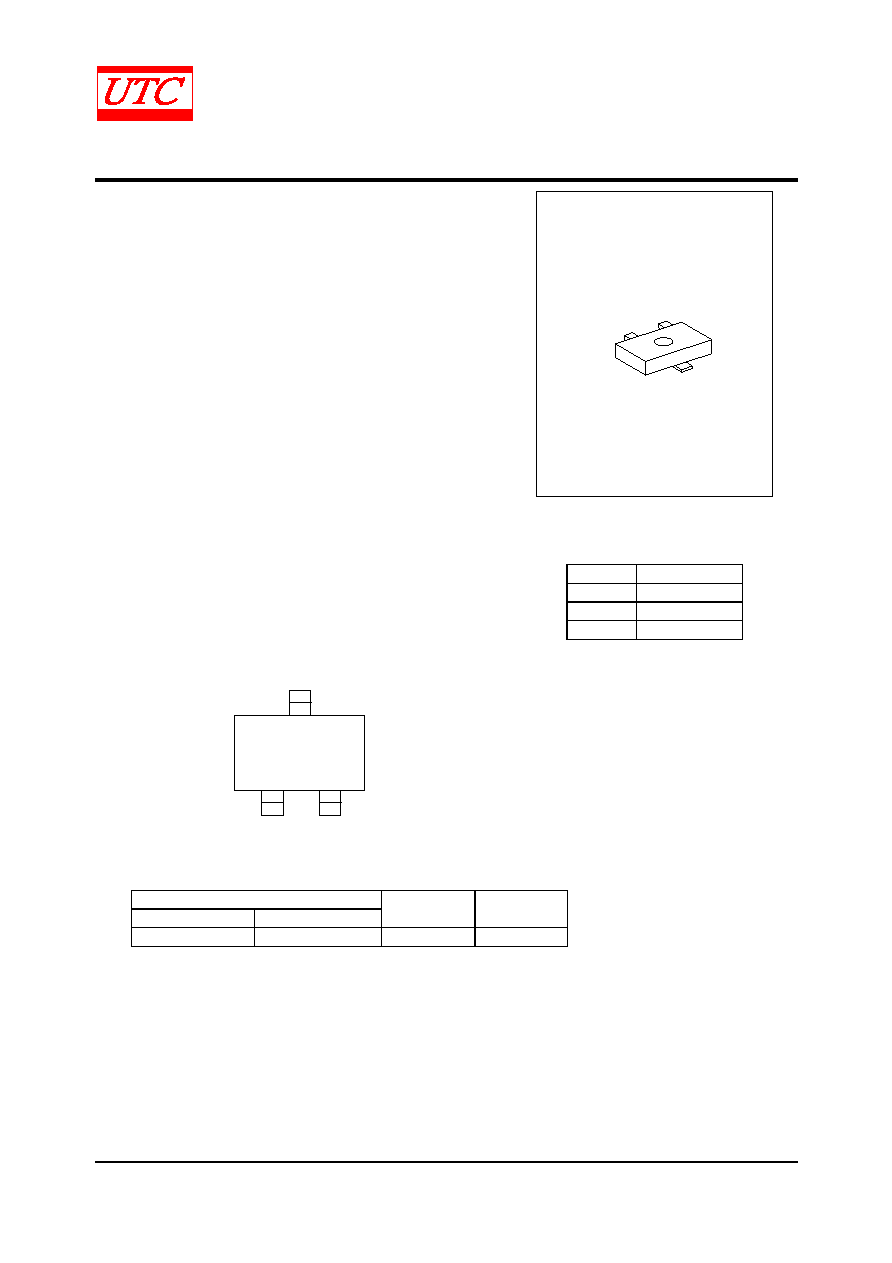

UNISONIC TECHNOLOGIES CO.,

2N7002

MOSFET

www.unisonic.com.tw

1

QW-R206-037,B

N-CHANNEL ENHANCEMENT

MODE FIELD EFFECT

TRANSISTOR

DESCRIPTION

The UTC 2N7002 has been designed to minimize on-state

resistance while provide rugged, reliable, and fast switching

performance. It can be used in most applications requiring up to

400mA DC and can deliver pulsed currents up to 2A. The product

is particularly suited for low voltage, low current applications such

as small servo motor control, power MOSFET gate drivers, and

other switching applications

FEATURES

* High density cell design for low RDS(ON).

* Voltage controlled small signal switch

* Rugged and reliable

* High saturation current capability

MARKING

3P

SOT-23

1

2

3

*Pb-free plating product number: 2N7002L

PIN CONFIGURATION

PIN NO.

PIN NAME

1

SOURCE

2

GATE

3

DRAIN

ORDERING INFORMATION

Order Number

Normal

Lead free

Package

Packing

2N7002-AE3-R

2N7002L-AE3-R

SOT-23

Tape Reel
