AD8224

Preliminary Technical Data

20mV/DIV

4µs/DIV

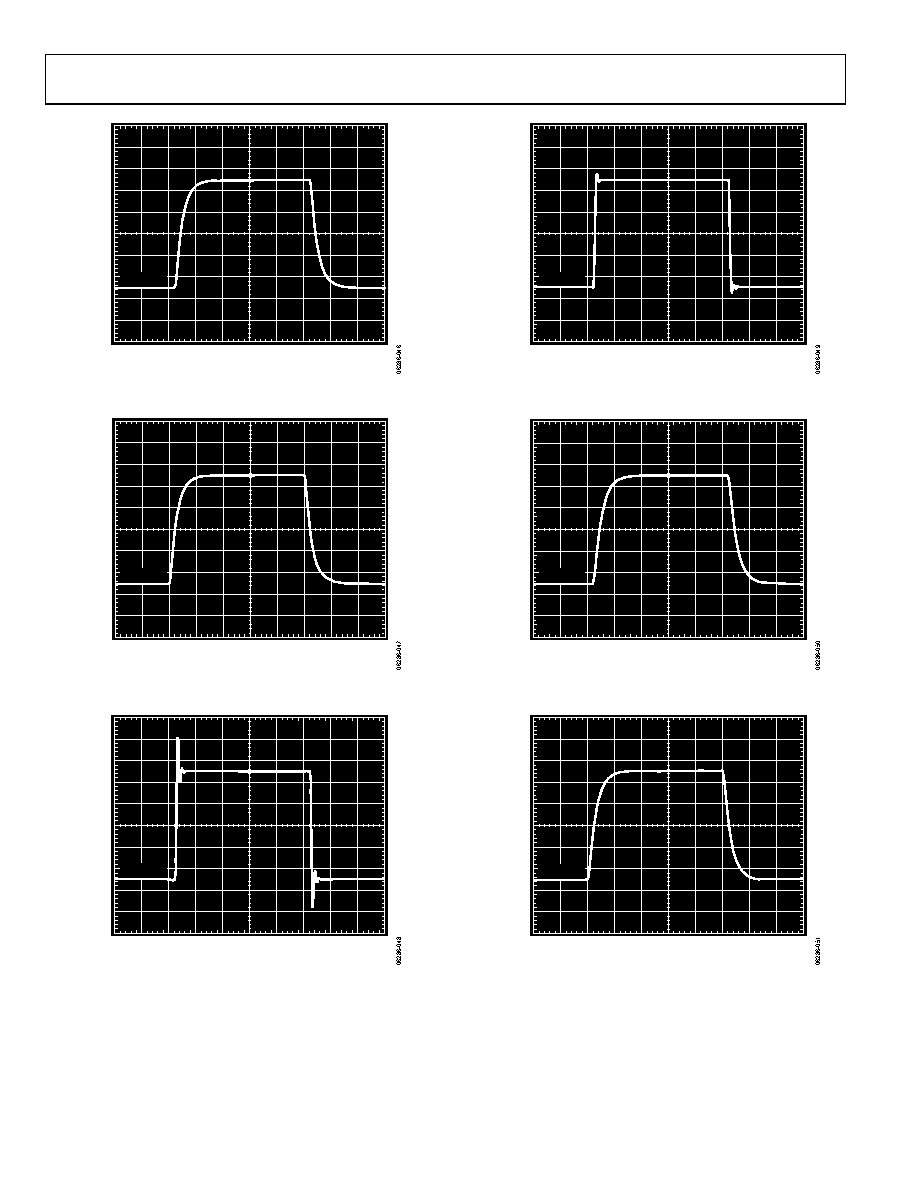

Figure 46. Small Signal Pulse Response, G = 100, RL = 2 kΩ, C L= 100 pF,

Figure 49. Small Signal Pulse Response, G = 10, RL = 2 kΩ, CL = 100 pF,

VS = ±15 V, VREF =0 V

VS = +5 V, VREF = 2.5 V

20mV/DIV

40µs/DIV

4µs/DIV

Figure 47. Small Signal Pulse Response, G = 1000, RL = 2 kΩ, CL = 100 pF,

Figure 50. Small Signal Pulse Response, G = 100, RL = 2 kΩ, CL = 100 pF,

VS = ±15 V, VREF = 0 V

VS = +5 V, VREF = 2.5 V

20mV/DIV

4µs/DIV

40µs/DIV

Figure 48. Small Signal Pulse Response, G = 1, RL = 2 kΩ, CL = 100 pF,

Figure 51. Small Signal Pulse Response, G = 1000,RL = 2 kΩ, CL = 100 pF,

VS = +5 V, VREF = 2.5 V

Rev. PrB | Page 18 of 27
