AD8655/AD8656
Rev. A | Page 6 of 20

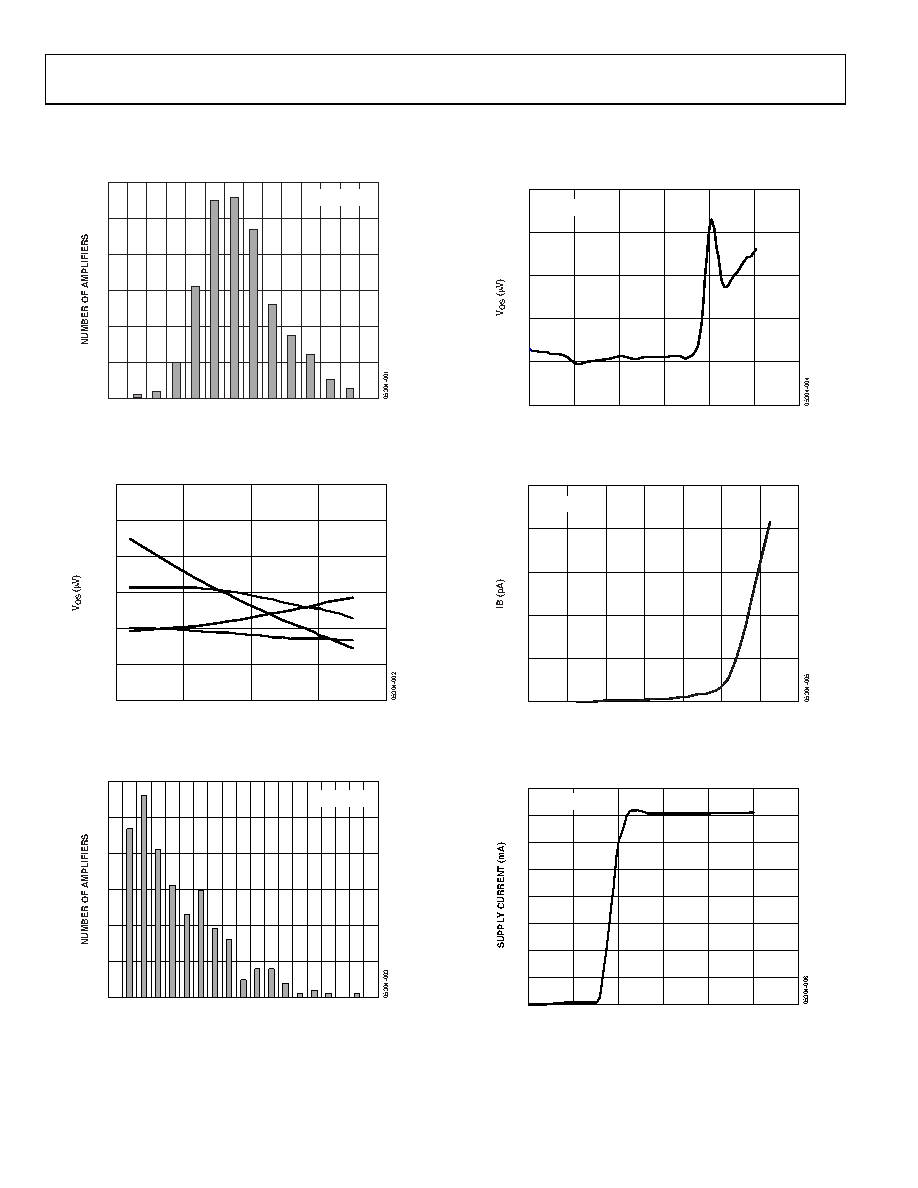

TYPICAL PERFORMANCE CHARACTERISTICS
60
50
40
30
20
10
0
–150
–100
–50
0
50
100
150
VOS (μV)
VS = ±2.5V
20
10
0
–10
–20
–30
01
2
3
4
COMMON-MODE VOLTAGE (V)
56
VS = ±2.5V
Figure 5. Input Offset Voltage Distribution
Figure 8. Input Offset Voltage vs. Common-Mode Voltage
150.0
100.0
50.0
0.0
–50.0
–100.0
–150.0
–50
0
50
TEMPERATURE (°C)
100
150
VS = ±2.5V
250
200
150
100
50
0
0
20
40
60
80
100
120
140
TEMPERATURE (°C)
VS = ±2.5V
Figure 6. Input Offset Voltage vs. Temperature
Figure 9. Input Bias Current vs. Temperature
60
50
40
30
20
10
0
0
0.2
0.4
0.6
0.8
1.0
1.2
|TCVOS| (μV/°C)
1.4
1.6
VS = ±2.5V
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
01
2
3
4
SUPPLY VOLTAGE (V)
56
VS = ±2.5V
Figure 10. Supply Current vs. Supply Voltage
Figure 7. |TCVOS | Distribution
