TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 10 of 18

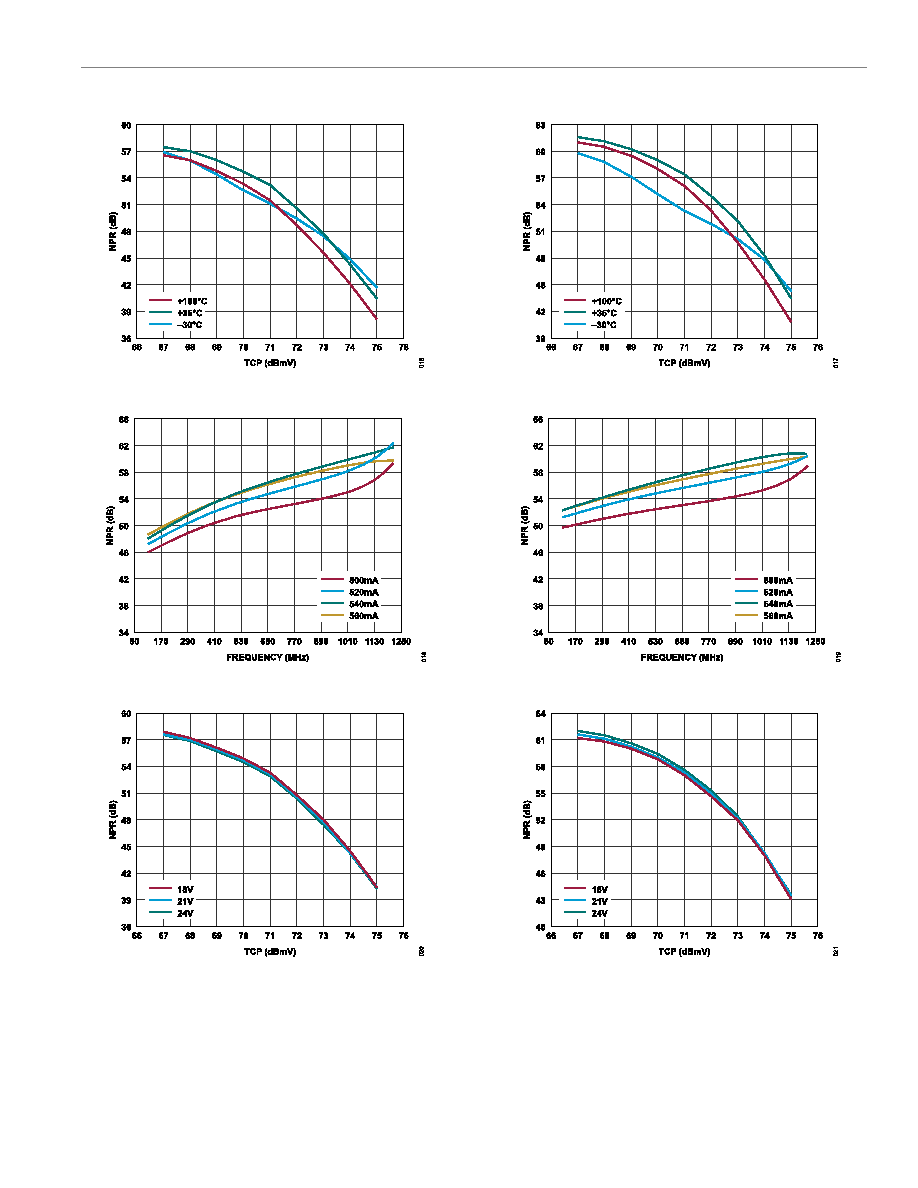

Figure 15. NPR vs. TCP over Temperature, 111 MHz, 18 dB Tilt

Figure 16. NPR vs. Frequency over Current, 73 dBmV TCP, 18 dB Tilt

Figure 17. NPR vs. TCP over Voltage, 111 MHz, 18 dB Tilt

Figure 18. NPR vs. TCP over Temperature, 111 MHz, 13 dB Tilt

Figure 19. NPR vs. Frequency over Current, 73 dBmV TCP, 13 dB Tilt

Figure 20. NPR vs. TCP over Voltage, 111 MHz, 13 dB Tilt
