전자부품 데이터시트 검색엔진
  Korean  ▼
ALLDATASHEET.CO.KR

X

Preview PDF HTML

PXAC210552FC-V1-R2 데이터시트(PDF) 5 Page - WOLFSPEED, INC.

부품명 PXAC210552FC-V1-R2
상세설명  Thermally-Enhanced High Power RF LDMOS FET 55 W, 28 V, 1805 – 2170 MHz
PDF  10 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  WOLFSPEED [WOLFSPEED, INC.]
홈페이지  https://www.wolfspeed.com/
Logo WOLFSPEED - WOLFSPEED, INC.

PXAC210552FC-V1-R2 데이터시트(HTML) 5 Page - WOLFSPEED, INC.

  PXAC210552FC-V1-R2 Datasheet HTML 1Page - WOLFSPEED, INC. PXAC210552FC-V1-R2 Datasheet HTML 2Page - WOLFSPEED, INC. PXAC210552FC-V1-R2 Datasheet HTML 3Page - WOLFSPEED, INC. PXAC210552FC-V1-R2 Datasheet HTML 4Page - WOLFSPEED, INC. PXAC210552FC-V1-R2 Datasheet HTML 5Page - WOLFSPEED, INC. PXAC210552FC-V1-R2 Datasheet HTML 6Page - WOLFSPEED, INC. PXAC210552FC-V1-R2 Datasheet HTML 7Page - WOLFSPEED, INC. PXAC210552FC-V1-R2 Datasheet HTML 8Page - WOLFSPEED, INC. PXAC210552FC-V1-R2 Datasheet HTML 9Page - WOLFSPEED, INC. Next Button
Zoom Inzoom in Zoom Outzoom out
 5 / 10 page
background image
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
Rev. 05, 2023-06-28
5
PXAC210552FC
Typical Performance (cont.)
See next page for load pull information
10
20
30
40
50
60
70
13
14
15
16
17
18
19
27
31
35
39
43
47
51
Output Power (dBm)

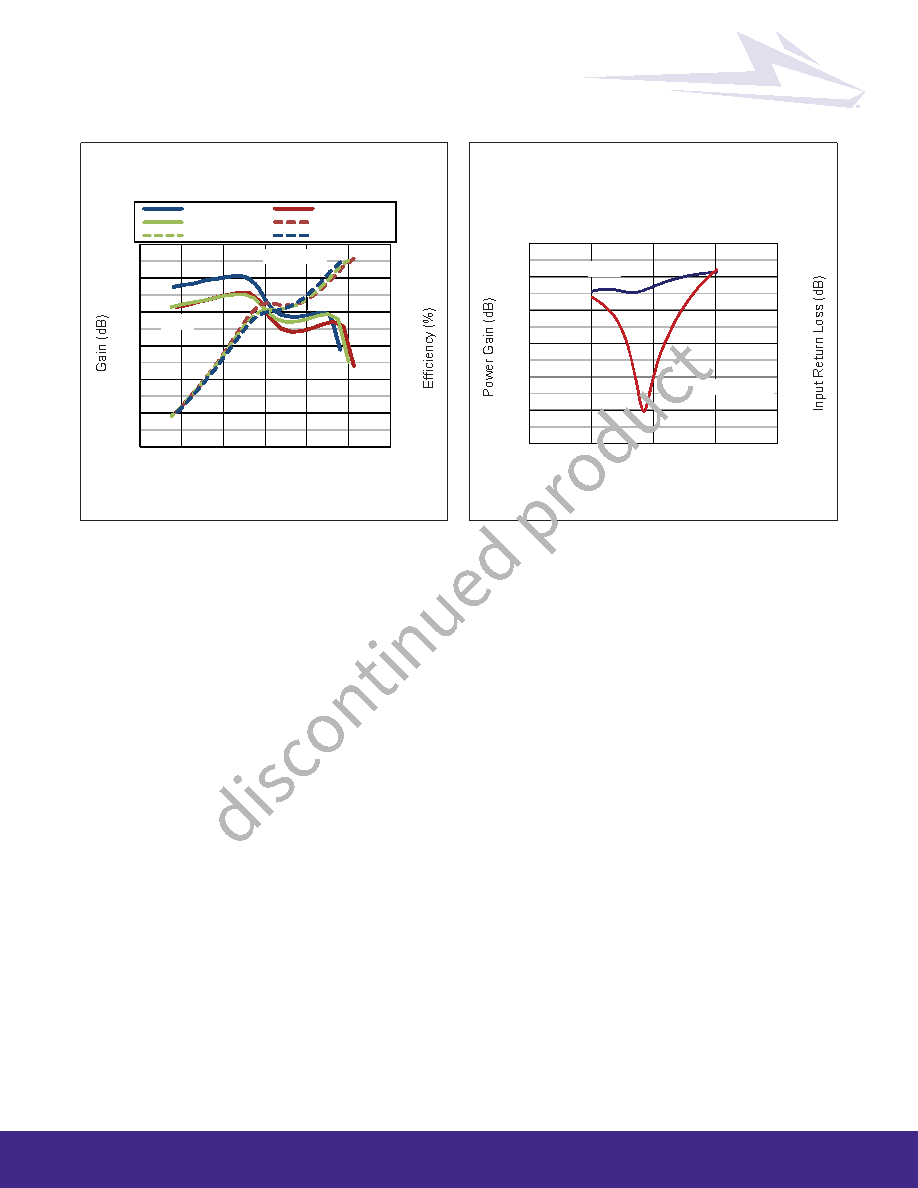

CW Performance
VDD = 26 V, IDQ = 120 mA
2170 MHz Gain
2110 MHz Gain
2140 MHz Gain
2110 MHz Eff
2140 MHz Eff
2170 MHz Eff
Gain
Efficiency
c210552fc-gr5
-40
-35
-30
-25
-20
-15
-10
8
10
12
14
16
18
20
2050
2100
2150
2200
2250
Frequency (MHz)
Small Signal CW Performance
VDD = 26 V, IDQ = 120 mA
Gain
Input Return Loss
c210552fc-gr7



Html Pages

1 2 3 4 5 6 7 8 9 10


데이터시트 다운로드

Go To PDF Page


링크 URL



ALLDATASHEET 가 귀하에 도움이 되셨나요?  [ DONATE ]

Alldatasheet는?   |   광고문의   |   운영자에게 연락하기   |   개인정보취급방침   |   링크 투 데이터시트    |   링크교환   |   제조사별 검색
All Rights Reserved©Alldatasheet.com


Mirror Sites
English : Alldatasheet.com  |   English : Alldatasheet.net  |   Chinese : Alldatasheetcn.com  |   German : Alldatasheetde.com  |   Japanese : Alldatasheet.jp
Russian : Alldatasheetru.com  |   Korean : Alldatasheet.co.kr  |   Spanish : Alldatasheet.es  |   French : Alldatasheet.fr  |   Italian : Alldatasheetit.com
Portuguese : Alldatasheetpt.com  |   Polish : Alldatasheet.pl  |   Vietnamese : Alldatasheet.vn
Indian : Alldatasheet.in  |   Mexican : Alldatasheet.com.mx  |   British : Alldatasheet.co.uk  |   New Zealand : Alldatasheet.co.nz
Family Site : ic2ic.com  |   icmetro.com
