Easy Wire Removable screw terminal block

No software needed: Simply plug in

any ethernet cable

Dual redundant power input:

+5VDC to +30VDC

Power consumption is optimised

based on the status of the link

device

All Ethernet ports are Auto MDI/

MDIX supporting straight through or

crossover Ethernet cables

2k Byte maximum packet size –

improves the efficiency of bulk data

transfer and system performance

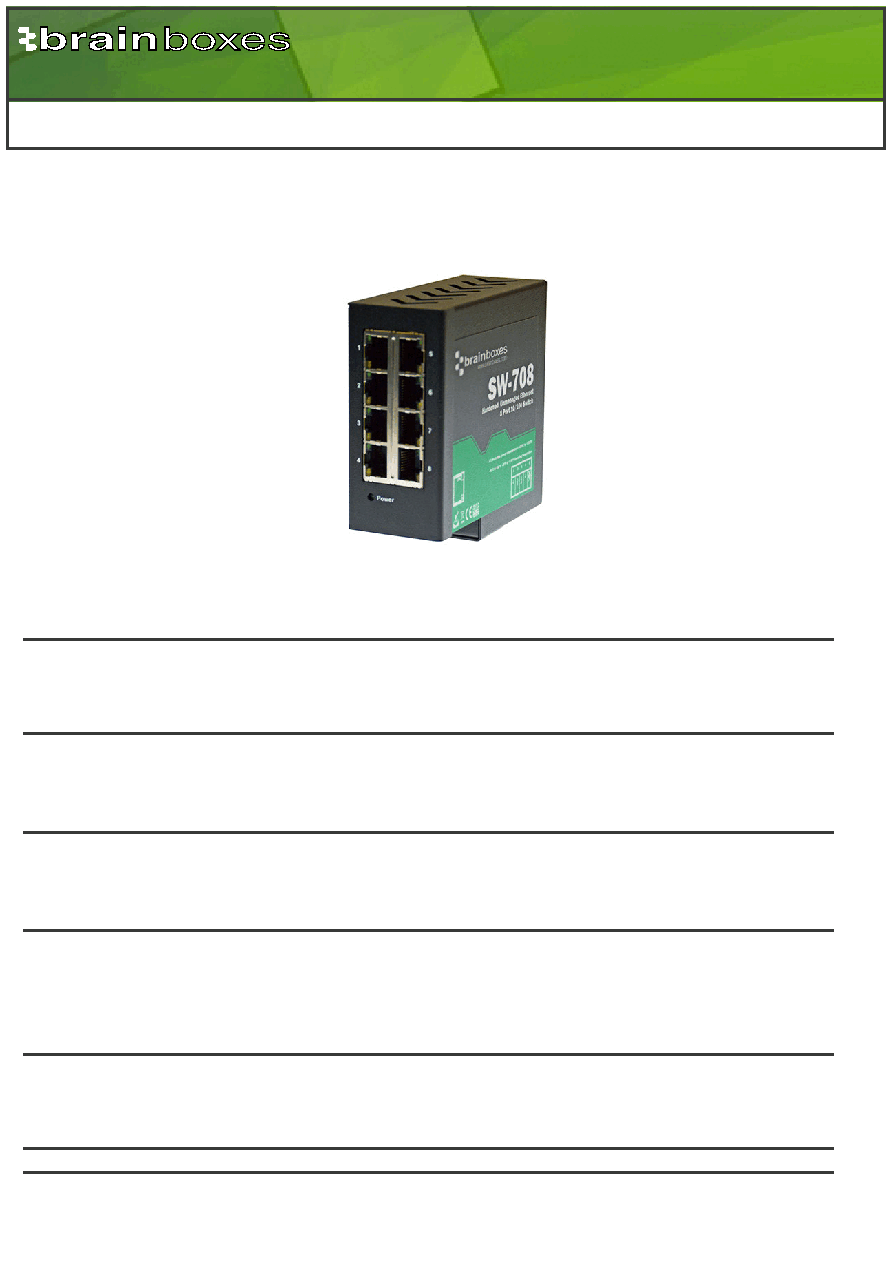

Hardened 8 Port Ethernet Switch 10/100

SW-708

Automatic detection of data

transmission speed: 10 or 100 MBps

Integral DIN mount with ground

Tough metal case

-40ºC to +80ºC/-40ºF to +176ºF

temperature range

Connectors

Screw Terminals

3.5mm pitch, #22 - #14, 0.5mm2-2.5mm2 pin power supply

Wire Thickness

0.150 inch, 3.81mm, 20 pins, 12+8 screw terminals, #26 - #16 AWG,

0.14mm2-1.3mm2

Power Supply

Power Consumption

1.5 Watts Max : 300 mAmps@+5VDC/50mAmps@+30VDC

Power Supply input

Unregulated +5V to +30Volts DC, reverse polarity protection

Isolation

1500VRMS Magnetic isolation from Ethernet

Environmental

Operating Temperature

-40ºC to +80ºC/-40ºF to +176ºF

Storage Temperature

-40ºC to +80ºC/-40ºF to +176ºF

Ambient Relative Humidity

5 to 95% (non-condensing)

Magjack LED Information

Link/Activity LED

Solid green

Connection established

Flashing Green

Data communication

Ethernet

Ethernet Port

8 x RJ45 jack, 10/100Mhz autosensing, crossover auto sensing (Auto

MDIX)

Protection

1,500 Volts magnetic isolation between ports

Housing

IP-20 rated metal case

Multiple ports in a small space
