1N6300AG datasheet(2/7 Pages) ONSEMI

2 / 7 page

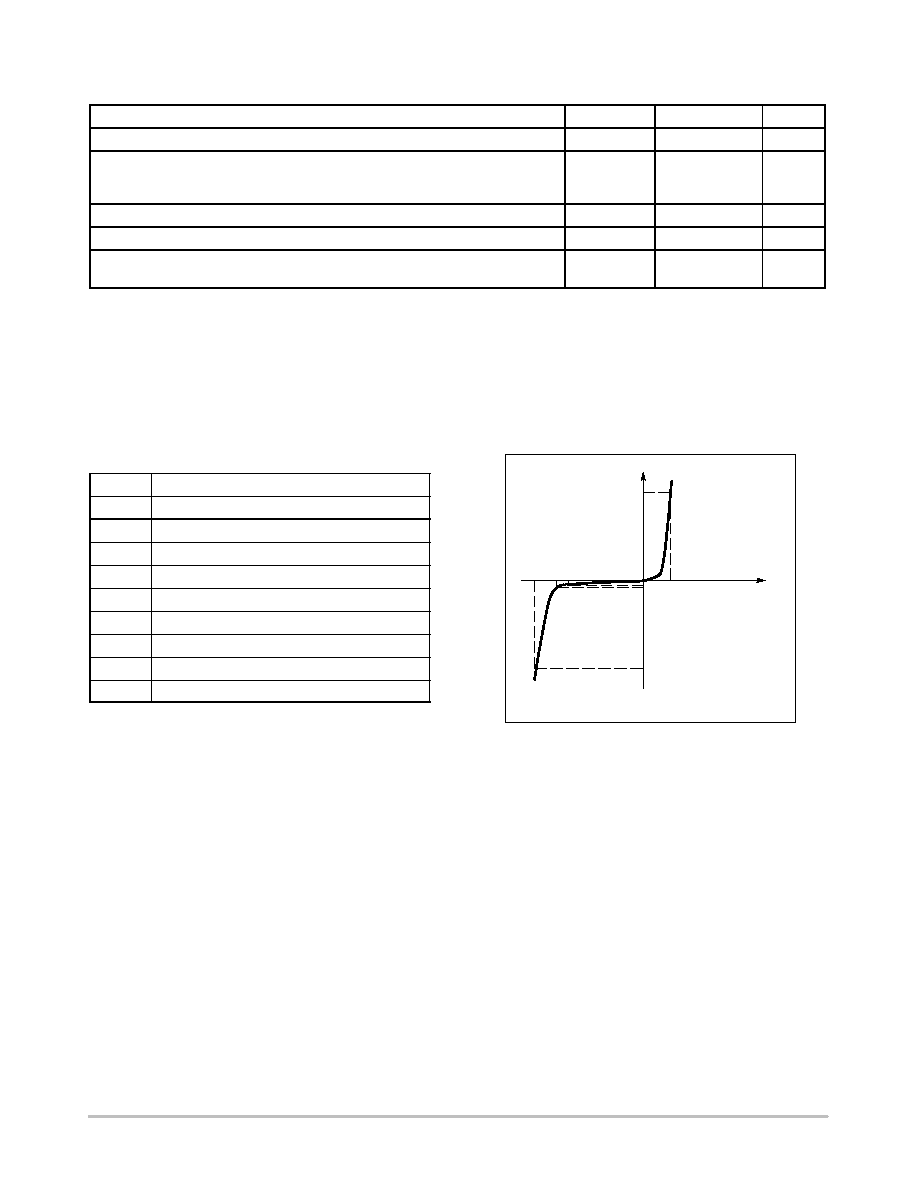

Uni−Directional TVS

IPP

VRWM

VC VBR

1N6267A Series

http://onsemi.com

MAXIMUM RATINGS

Rating

Symbol

Value

Unit

Peak Power Dissipation (Note 1) @ TL ≤ 25°C

PPK

1500

Steady State Power Dissipation

@ TL ≤ 75°C, Lead Length = 3/8 in

Derated above TL = 75°C

5.0

mW/

°C

Thermal Resistance, Junction−to−Lead

RqJL

°C/W

Forward Surge Current (Note 2) @ TA = 25°C

IFSM

200

Operating and Storage

Temperature Range

TJ, Tstg

− 65 to +175

°C

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the

Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect

device reliability.

1. Nonrepetitive current pulse per Figure 5 and derated above TA = 25°C per Figure 2.

2. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses per minute maximum.

NOTES: Please see 1.5KE6.8CA to 1.5KE250CA for Bidirectional Devices

ELECTRICAL CHARACTERISTICS (TA = 25°C unless

otherwise noted, VF = 3.5 V Max., IF (Note 3) = 100 A)

Symbol

Parameter

IPP

Maximum Reverse Peak Pulse Current

Clamping Voltage @ IPP

VRWM

Working Peak Reverse Voltage

Maximum Reverse Leakage Current @ VRWM

VBR

Breakdown Voltage @ IT

Test Current

QVBR

Maximum Temperature Coefficient of VBR

Forward Current

Forward Voltage @ IF
