Custom Silicon Solutions, Inc. ©2009
12
Version 1.1, May 2009
CSS555C
Micropower Timer (with Internal Timing Capacitor)
Typical Performance Characteristics (continued)

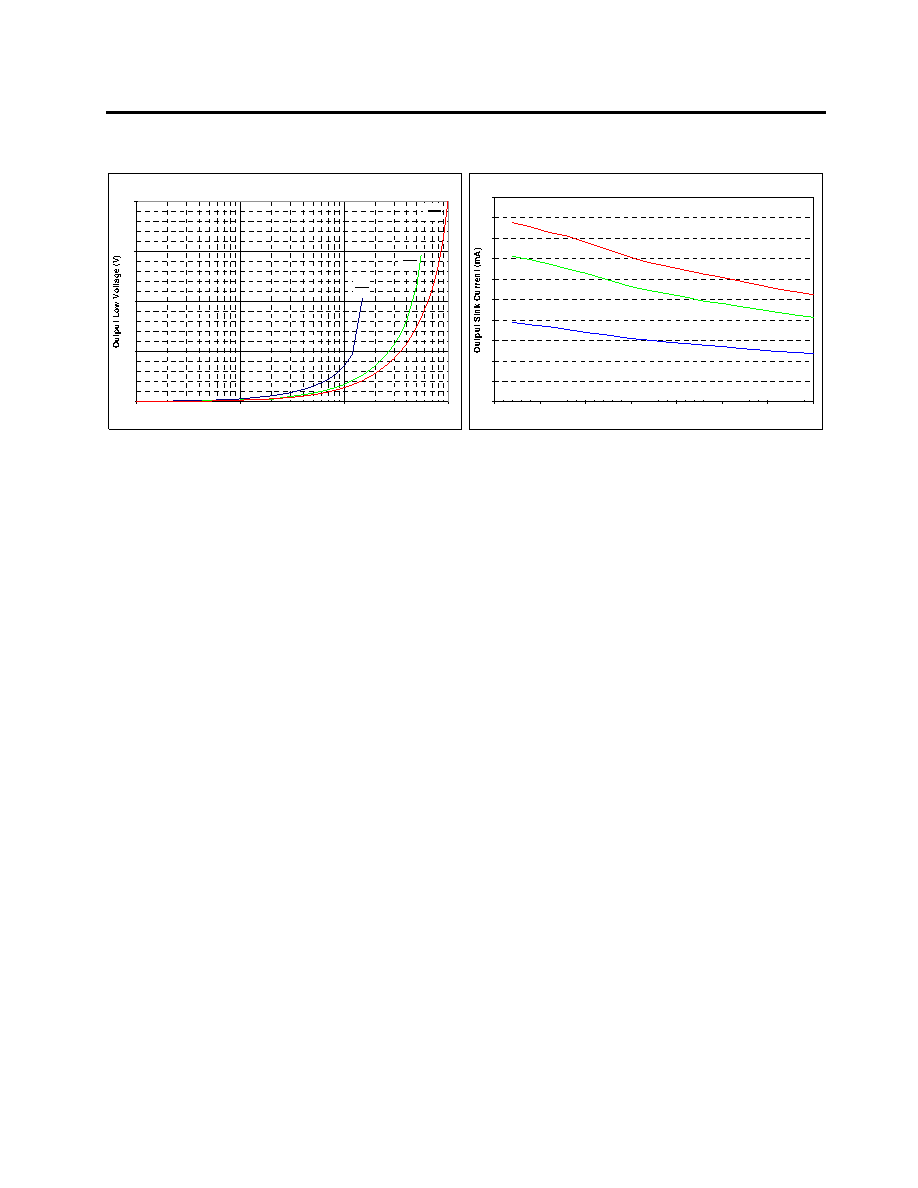

Figure 33 DISCHARGE VOL vs. IOL
Figure 34 DISCHARGE IOL vs. Temperature
DISCHARGE Low Voltage vs. Sink Current
0.0
0.5
1.0
1.5
2.0
0.1
1.0
10.0
100.0
Output Sink Current (mA)
VDD
5.0V
VDD
3.0V
VDD
1.5V
DISCHARGE Output Drive Low vs. Temperature
0
2
4
6
8
10
12
14
16
18
20
-50
-25
0
25
50
75
100
125
Temperature (degrees C)
VDD = 5.0V
VDD = 3.0V
VDD = 1.5V
IOL measured at VOL = 0.2V
