11 / 12 page

LMV358

LINEAR INTEGRATED CIRCUIT

UNISONICTECHNOLOGIESCO.,LTD

11 of 12

www.unisonic.com.tw

QW-R105-010,C

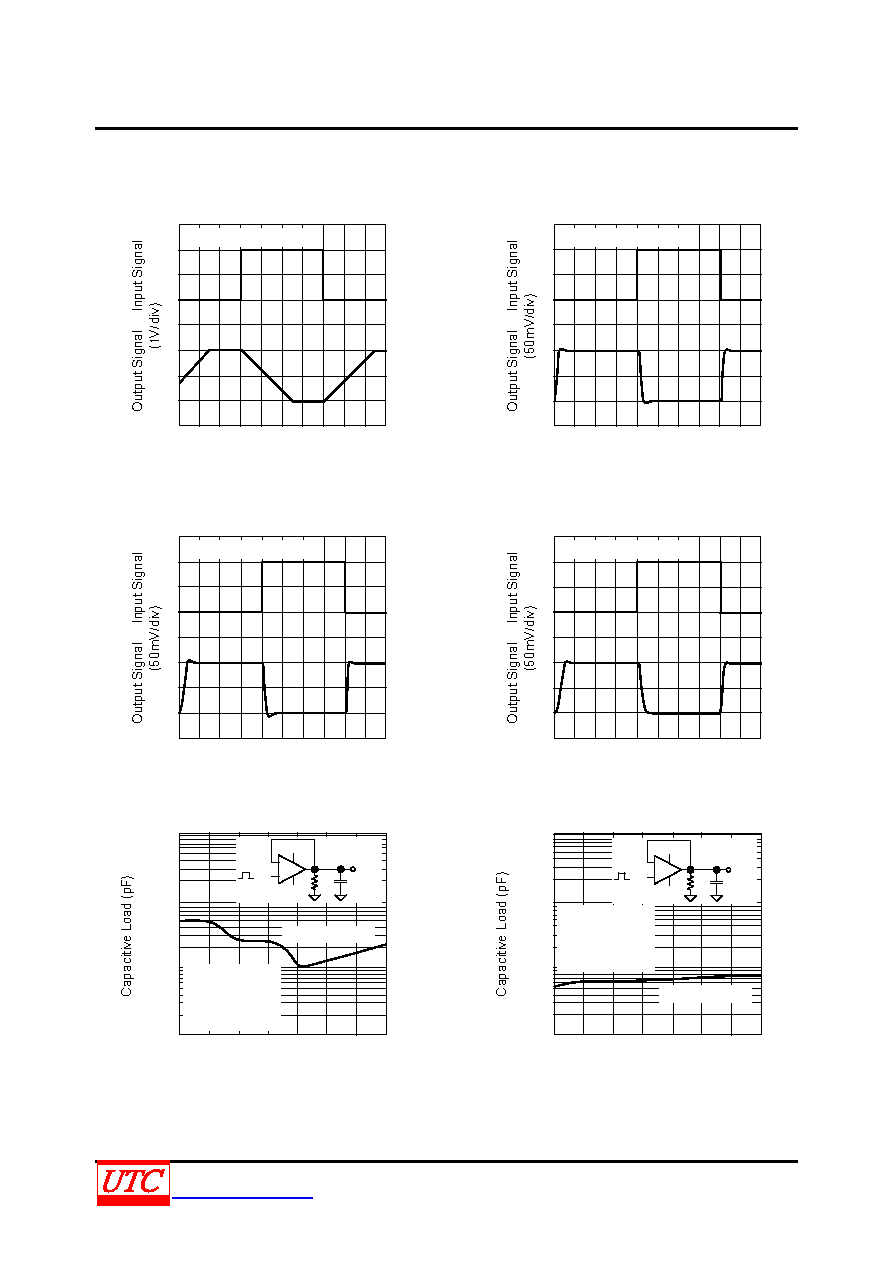

TYPICAL CHARACTERISTICS(Cont.)

Non-Inverting Large Signal

Pulse Response

Time (1μs/div)

TA = -40℃, RL = 2kΩ

Non-Inverting Small Signal

Pulse Response

Time (1μs/div)

TA = 25℃, RL = 2kΩ

Non-Inverting Small Signal

Pulse Response

Time (1μs/div)

TA = 85℃, RL = 2kΩ

Non-Inverting Small Signal

Pulse Response

Time (1μs/div)

TA = -40℃, RL = 2kΩ

Stability vs Capacitive Load

Output Voltage (V)

-2 -1.5 -1 -0.5 0

0.5

1 1.5

100

1000

10000

25% Overshoot

VSS = ±2.5V

AV = +1

RL = 2kΩ

VOUT = 100mVPP

VIN

+2.5V

-2.5V

VOUT

Stability vs Capacitive Load

Output Voltage (V)

-2 -1.5 -1 -0.5 0

0.5

1 1.5

100

1000

10000

25% Overshoot

VSS = ±2.5V

AV = +1

RL = 1MΩ

VOUT = 100mVPP

VIN

+2.5V

-2.5V

RL CL

VOUT
