CH1 10mV/DIV

CH2 2.00V/DIV

TIMEBASE: 3.00

μs/DIV

1

2

CH1 = (IN–) – IN+

CH2 = OUT

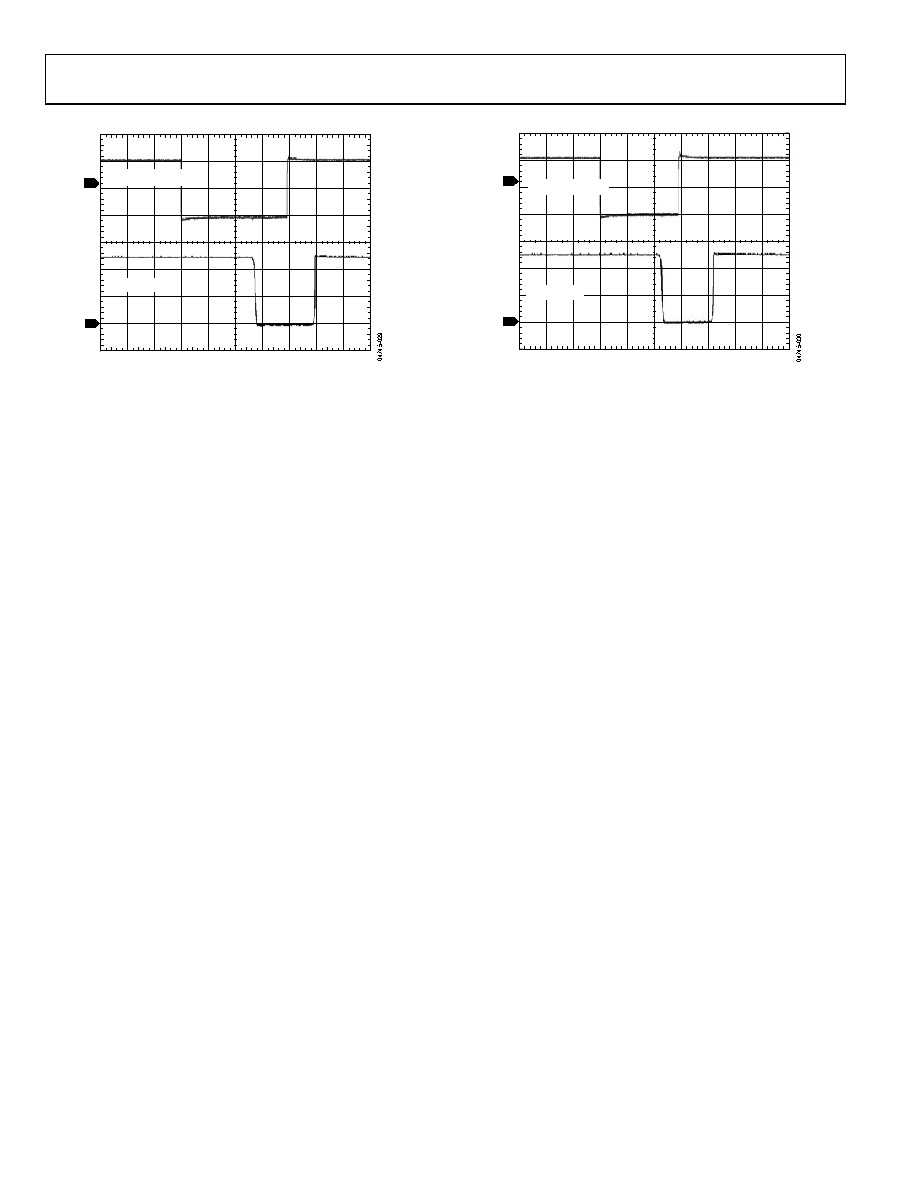

Figure 16. Propagation Delay Timing 10 mV Overdrive

CH1 100mV/DIV

TIMEBASE: 1.00

μs/DIV

1

2

CH2 2.00V/DIV

CH2 = OUT

CH1 = (IN–) – IN+

Figure 17. Propagation Delay Timing 100 mV Overdrive
