AD8138
Rev. F | Page 15 of 24

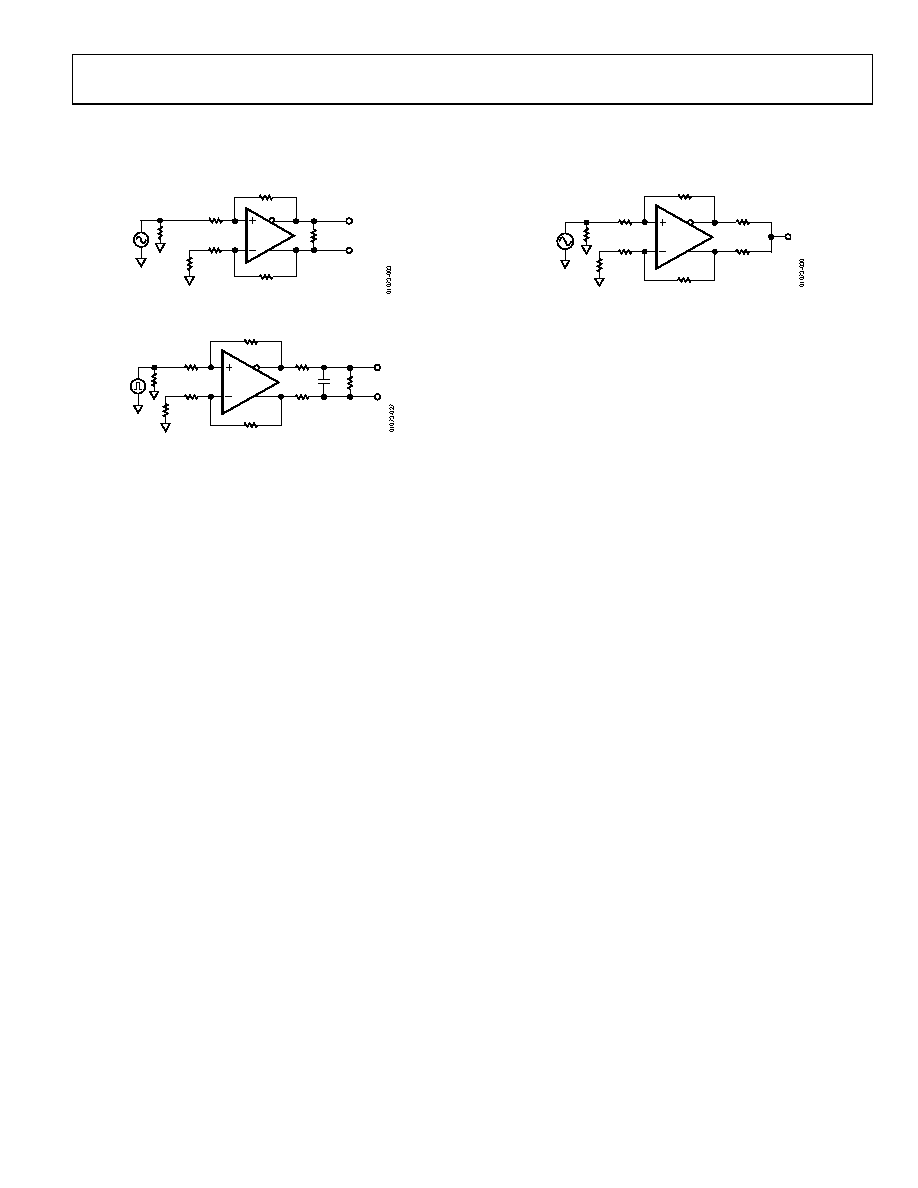

TEST CIRCUITS
AD8138
24.9Ω
49.9Ω
RF = 499Ω
RF = 499Ω
RL, dm =499Ω
RG = 499Ω
RG = 499Ω
Figure 39. Basic Test Circuit
CL
499Ω
49.9Ω
24.9Ω
453Ω
AD8138
24.9Ω
24.9Ω
499Ω
499Ω
499Ω
Figure 40. Test Circuit for Cap Load Drive
499Ω
49.9Ω
24.9Ω
AD8138
249Ω
249Ω
499Ω
499Ω
499Ω
Figure 41. Test Circuit for Output Balance
