35
AT89C5132
4173CS–USB–07/04

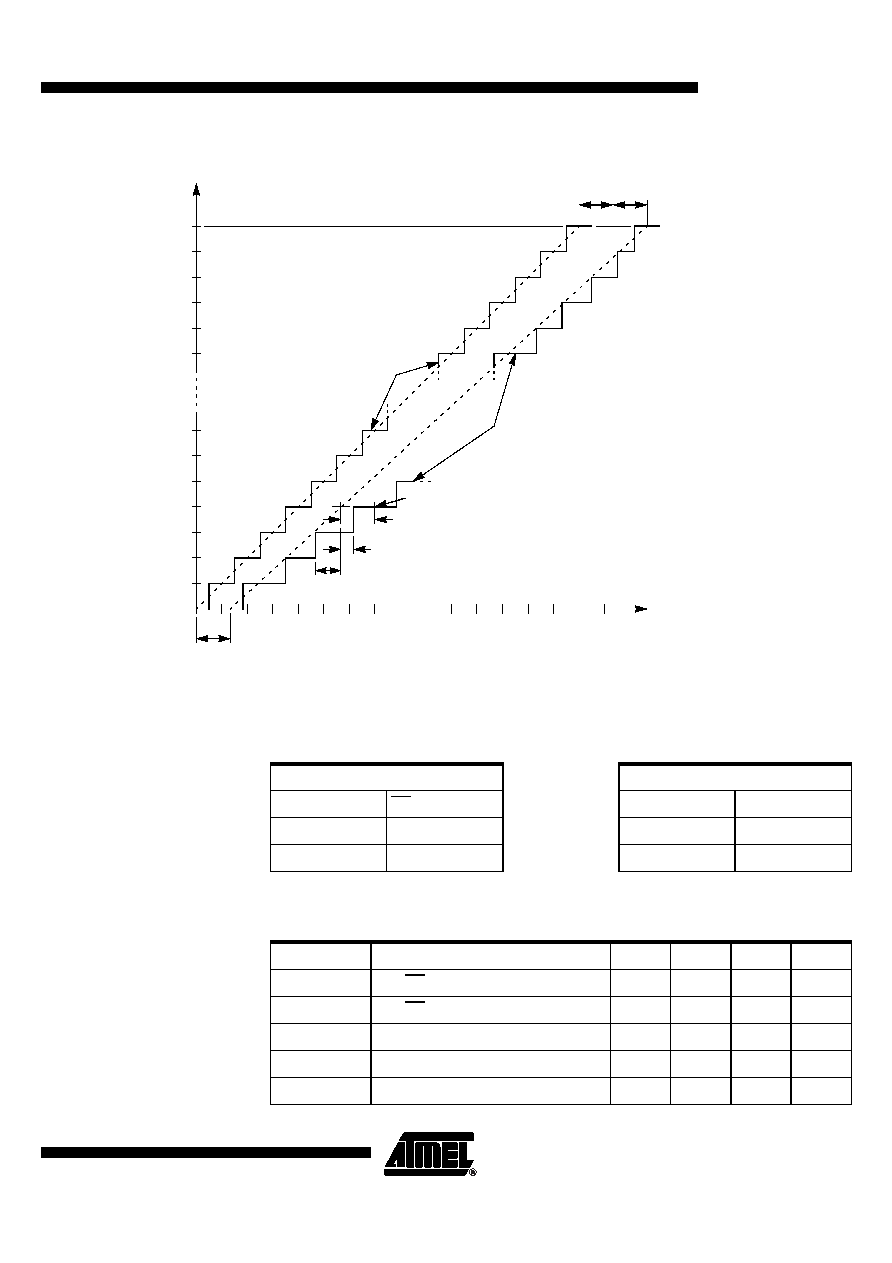

Figure 13. Analog-to-Digital Converter Characteristics
Flash Memory
Definition of Symbols
Table 14. Flash Memory Timing Symbol Definitions
Timings
Table 15. Flash Memory AC Timing
VDD = 2.7 to 3.3V, TA = -40° to +85°C
1
2
3
4
5
6
7
1018 1019 1020 1021 1022 1023 1024
1
2
3
4
5
6
7
1018
1019
1020
1021
1022
1023
Offset
Error
Code Out
AVIN (LSBideal)
OSe
Offset
Error
OSe
Gain
Error
Ge
Ideal Transfer Curve
1 LSB
(Ideal)
Integral Non-linearity (ILe)
Differential Non-linearity (DLe)
Center of a Step
Example of an Actual Transfer Curve
0
0
Signals
Conditions
SISP
L
Low
RRST
V
Valid
B
FBUSY flag
X
No Longer Valid
Symbol
Parameter
Min
Typ
Max
Unit
TSVRL
Input ISP Valid to RST Edge
50
ns
TRLSX
Input ISP Hold after RST Edge
50
ns
TBHBL
FLASH Internal Busy (Programming) Time
10
ms
NFCY
Number of Flash Write Cycles
100K
Cycle
TFDR
Flash Data Retention Time
10
Year
