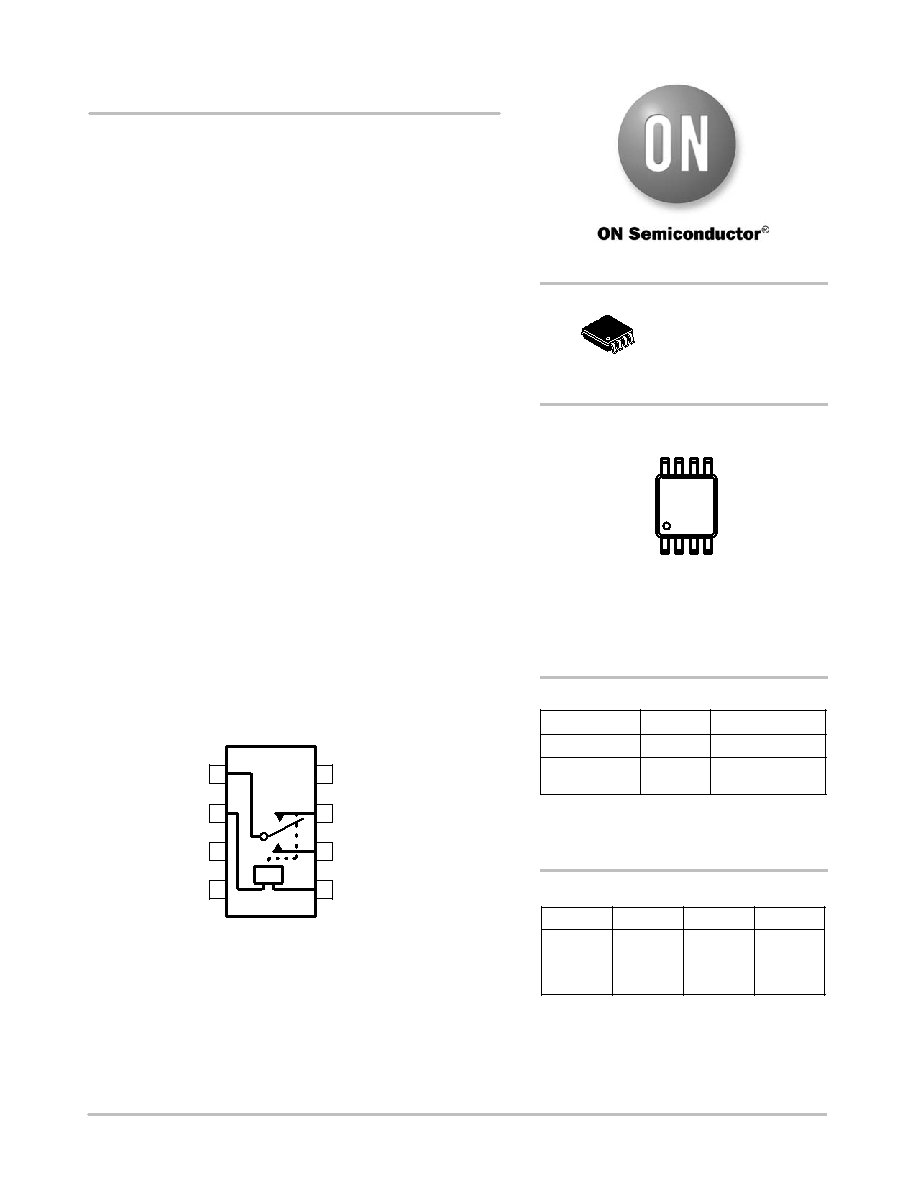

NLAS1053

2:1 Mux/Demux Analog

Switches

The NLAS1053 is an advanced CMOS analog switch fabricated

with silicon gate CMOS technology. It achieves very high speed

propagation delays and low ON resistances while maintaining CMOS

low power dissipation. The device consists of a single 2:1

Mux/Demux (SPDT), similar to ON Semiconductor’s NLAS4053

analog and digital voltages that may vary across the full power supply

range (from VCC to GND).

The inhibit and select input pins have over voltage protection that

allows voltages above VCC up to 7.0 V to be present without damage

or disruption of operation of the part, regardless of the operating

voltage.

Features

• High Speed: tPD = 1 ns (Typ) at VCC = 5.0 V

• Low Power Dissipation: ICC = 2 mA (Max) at TA = 25°C

• High Bandwidth, Improved Linearity, and Low RDSON

• INH Pin Allows a Both Channels ‘OFF’ Condition (With a High)

• RDSON ≅ 25 W, Performance Very Similar to the NLAS4053

• Break Before Make Circuitry, Prevents Inadvertent Shorts

• Useful For Switching Video Frequencies Beyond 50 MHz

• Latchup Performance Exceeds 300 mA

• ESD Performance: HBM > 2000 V; MM > 200 V, CDM > 1500 V

• Tiny US8 Package, Only 2.1 X 3.0 mm

• Pb−Free Package is Available

FUNCTION TABLE

H

L

INH

CH0

INH

8

1

2

3

7

6 CH1

Select

GND

N/C

Figure 1. Pin Assignment

X

L

H

Select

OFF

Ch 0

OFF

Ch 1

4

5

VCC

COM

ON

OFF

ON

MARKING DIAGRAMS

US8

US SUFFIX

CASE 493−01

AC

= Specific Device Code

M

= Date Code*

G

= Pb−Free Package

(Note: Microdot may be in either location)

1

8

AC M

G

*Date Code orientation may vary depending

upon manufacturing location.

http://onsemi.com

1

†For information on tape and reel specifications,

including part orientation and tape sizes, please

refer to our Tape and Reel Packaging Specifications

Brochure, BRD8011/D.

Device

Package

Shipping†

ORDERING INFORMATION

NLAS1053US

US8

3000 / Tape & Reel

NLAS1053USG

US8

(Pb−Free)

3000 / Tape & Reel
