ADA4351-2

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 21 of 36

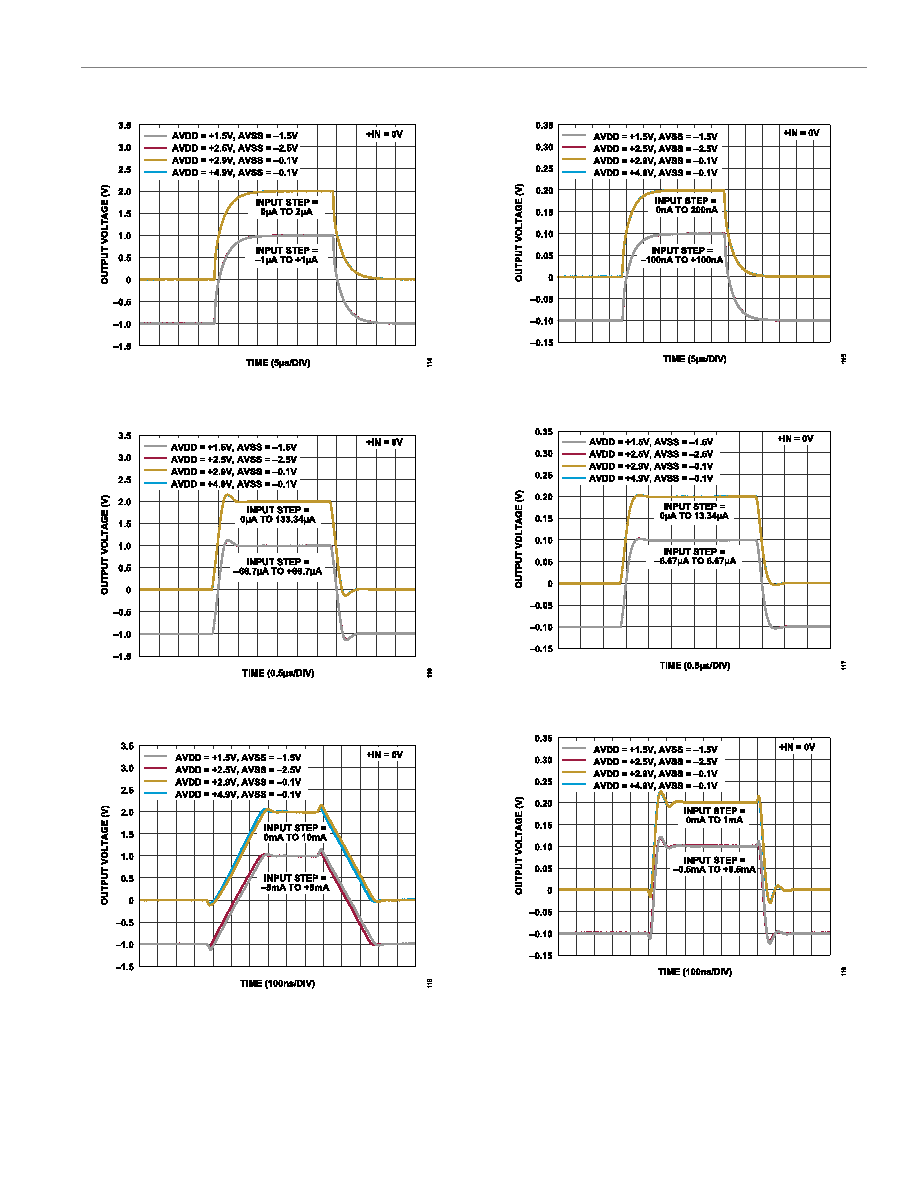

Figure 66. Large-Signal Step Response at Various Supplies, Input

Capacitance (CIN) = 10 pF, RF = 1 MΩ

Figure 67. Large-Signal Step Response at Various Supplies, CIN = 10 pF,

RF = 15 kΩ, External Feedback Capacitance (CF,EXT) = 5.6 pF

Figure 68. Large-Signal Step Response at Various Supplies, CIN = 10 pF,

RF = 200 Ω

Figure 69. Small-Signal Step Response at Various Supplies, CIN = 10 pF,

RF = 1 MΩ

Figure 70. Small-Signal Step Response at Various Supplies, CIN = 10 pF,

RF = 15 kΩ, CF,EXT = 5.6 pF

Figure 71. Small-Signal Step Response at Various Supplies, CIN = 10 pF,

RF = 200 Ω
