CUI DEVICES | SERIES: PR17 | DESCRIPTION: POWER RELAY
date 08/09/2022 | page 3 of 6
cuidevices.com
1.8±0.3
20.3±0.1
6-O1.3
5.08±0.1
+0.1
0
5.08±0.3
29.0±0.3
20.3±0.3
2-0.5±0.1
4-0.4±0.1
12.6±0.3
7.6±0.3
2-0.5±0.1
4-1.0±0.1

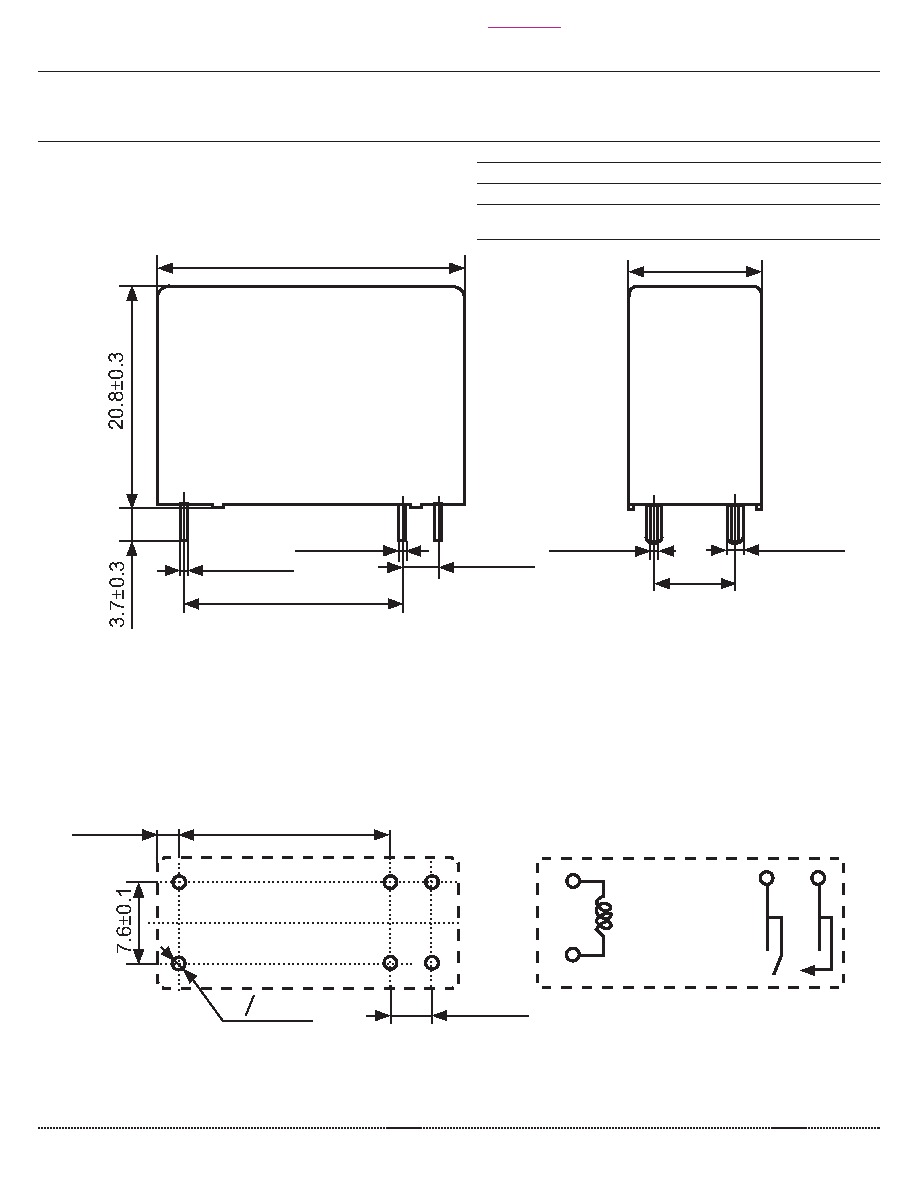

MECHANICAL DRAWING (1A = 1 FORM A)
units: mm
tolerance: ±0.3 mm
unless otherwise noted
ITEM DESCRIPTION
MATERIAL
PLATING/COLOR
A
housing
PBT (UL94V-0)
orange
B
terminals
copper covered
steel
tin
Recommended PCB Layout
Bottom View
Wiring Diagram
Bottom View
Additional Resources: Product Page
