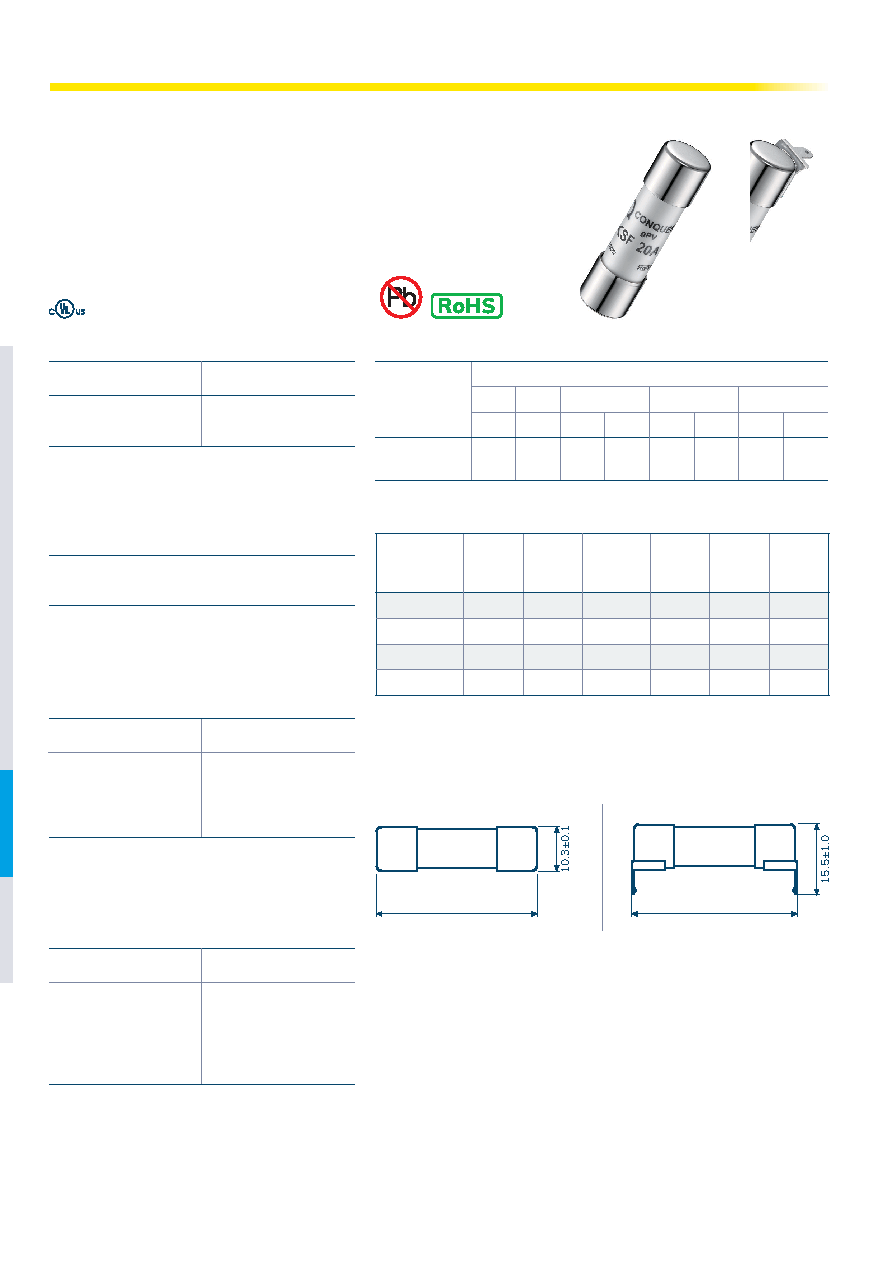

background image
90 |
Power Fuse
KSF/KSF-R
10Ø x 38 mm
Over current protection in solar system
Interrupting Rating
20,000 amperes at 1000V DC
Safety Approvals
Agency
Ampere Rating
Certified products for U.S.
and Canada
15A-30A
Electrical Characteristics
Ampere
Rating
Opening Time
1 ln 1.13 ln
1.35 ln
1.45 ln
2 ln
MIN
MIN
MIN
MAX
MIN
MAX
MIN
MAX
15A-30A
4
hr
60
min
-
60
min
-
60
min
-
240
sec
Packaging
Packaging Option
Quantity
Bulk
KSF:
10 pcs / inner box
10 inner box / outside box
KSF-R:
50 pcs / set
20 set / box
Product Characteristics
Operating Temperature
-55 ºC to 125 ºC
Material
Body: Ceramic /
Caps: Nickel Plated
Copper Alloy /
Terminal: Tin Plated
Copper
Mechanical Dimensions(mm)
KSF-R
39.35±0.5
KSF
38.0±0.6
Catalog
Number
Ampere
Rating (A)
Voltage
Rating (V)
Nominal Cold
Resistance
(Ohms)
Watts Loss
70% In
(W)
Watts Loss
100% In
(W)
Clearing
l2t
(A2 sec.)
KSF/KSF-R 015
15A
1000V
0.00854
1.24
3.06
365
KSF/KSF-R 020
20A
1000V
0.00505
1.33
3.22
804.3
KSF/KSF-R 025
25A
1000V
0.00396
1.66
4.28
1202
KSF/KSF-R 030
30A
1000V
0.00302
1.78
4.56
2229
Time constant ≤ 2.0 ms at DC test.
( * l2t measured at 20 kA / 1000 Vdc )
