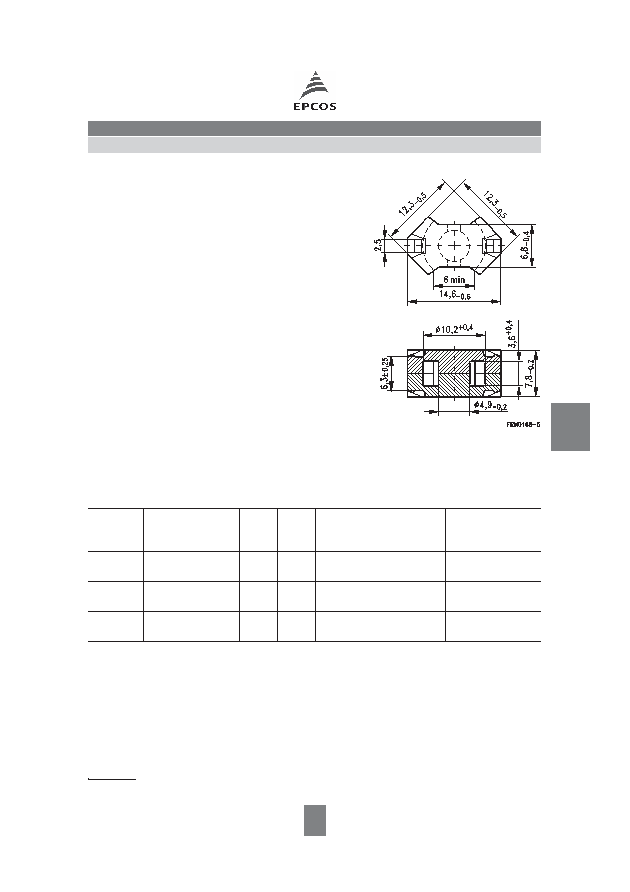

1 / 2 page

201 08/01

I In accordance with IEC 61860

I For compact transformers

I Without center hole

I RM cores are supplied in sets

Magnetic characteristics (per set)

Σl/A = 0,71 mm–1

le

= 17,5 mm

Ae

= 24,5 mm2

Amin = 18 mm2

Ve

= 430 mm3

Approx. weight 2,6 g/set

Ungapped

Material

AL value

nH

µe

AL1min

nH

PV

W/set

Ordering code

N49

1700 + 30/– 20 %

960

800

< 0,09

(50 mT, 500 kHz, 100

°C)

B65805-P-R49

N87

2400 + 30/– 20 %

1360

2590

< 0,26

(200 mT, 100 kHz, 100

°C)

B65805-P-R87

N921)

1900 + 30/– 20 %

1060

2590

< 0,29

(200 mT, 100 kHz, 100

°C)

B65805-P-R92

1) Preliminary data

B65805-P

Core

RM 5 »Low Profile«
