Coil former for power applications

Optimized for automatic winding

Material:

GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:

F

max. operating temperature 155

°C), color code black

Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): 235

°C, 2 s

Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350

°C, 3,5 s

Winding:

see “Processing Notes”, page 153

For matching clamp and insulating washer 1 see page 230

Sections

mm

µΩ

Pins

Ordering code

1

30

42

47

12

B65812-C1512-T1

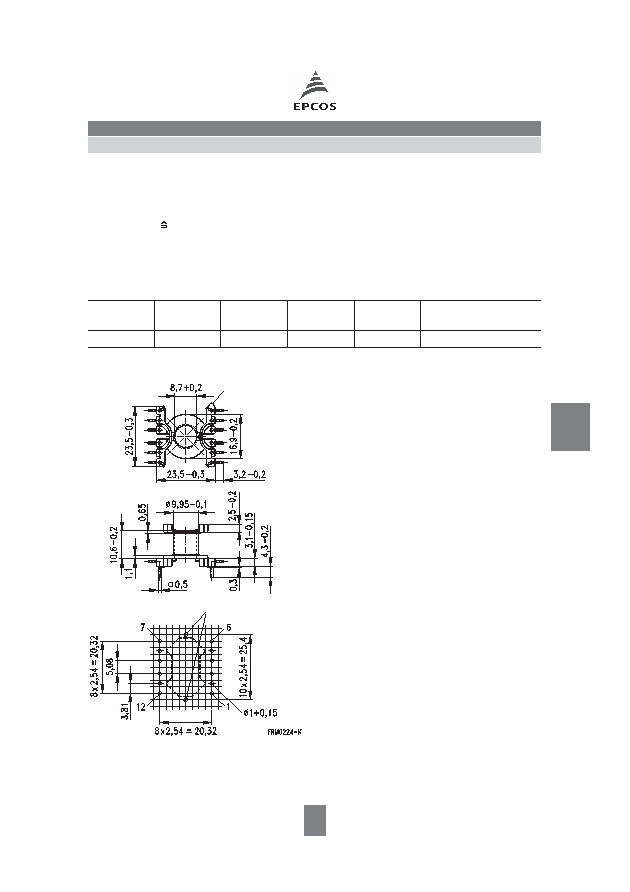

Hole arrangement

View in mounting direction

(Note half pitch!)

Ground Ø 1,3+0,1

Marking of pin 1

B65812

Accessories

RM 8
