ADA4304-2
Rev. 0 | Page 5 of 12

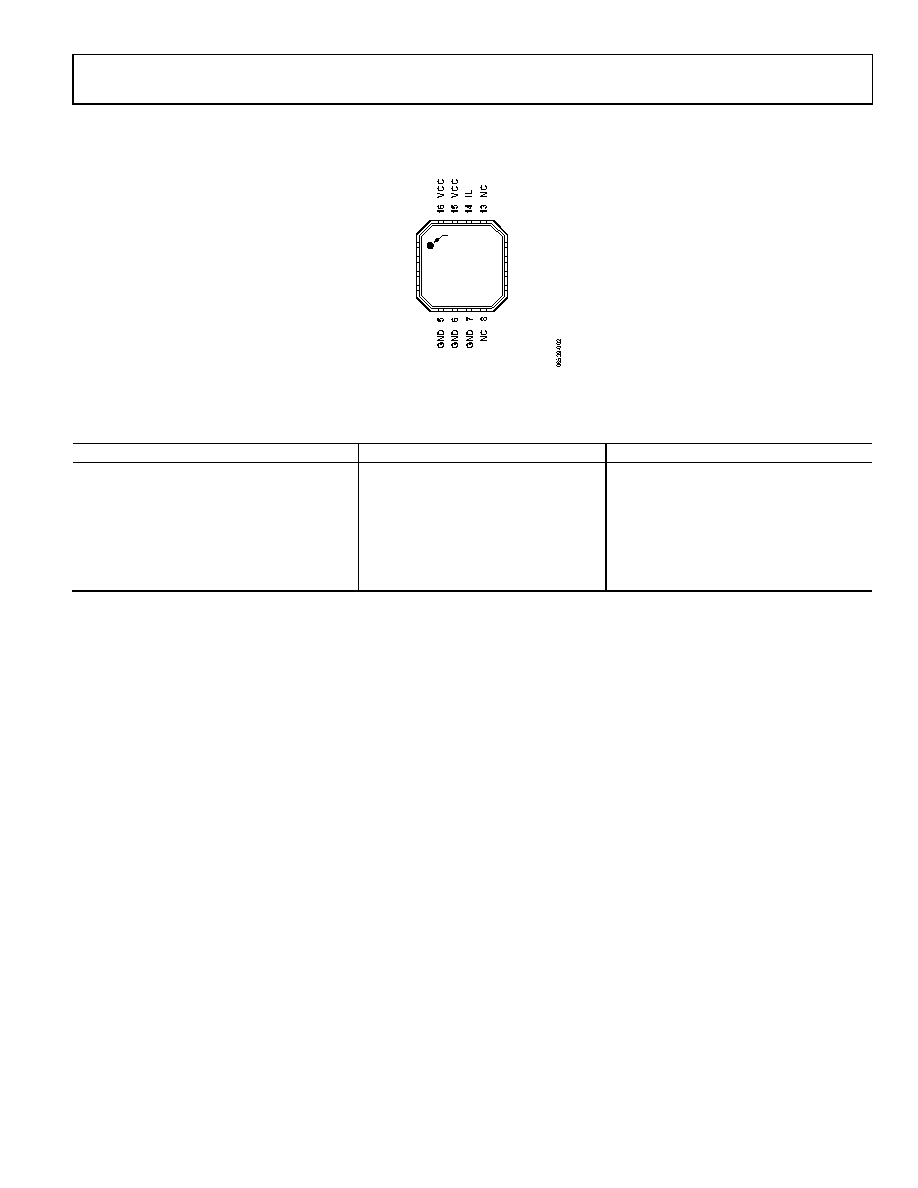

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
NC = NO CONNECT
1
VCC
2
VCC
3
GND
4
VIN
11 GND
12 VOUT1
10 VOUT2
9GND
ADA4304-2
TOP VIEW
(Not to Scale)
PIN 1
INDICATOR
Figure 4. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Description
1, 2, 15, 16
VCC
Supply Pin
3, 5 to 7, 9, 11
GND
Ground
4
VIN
Input
8, 13
NC
No Connection
10
VOUT2
Output 2
12
VOUT1
Output 1
14
IL
Bias Pin
