3-Line Filters
B84143-A*-R21
for Converters and Power Electronics

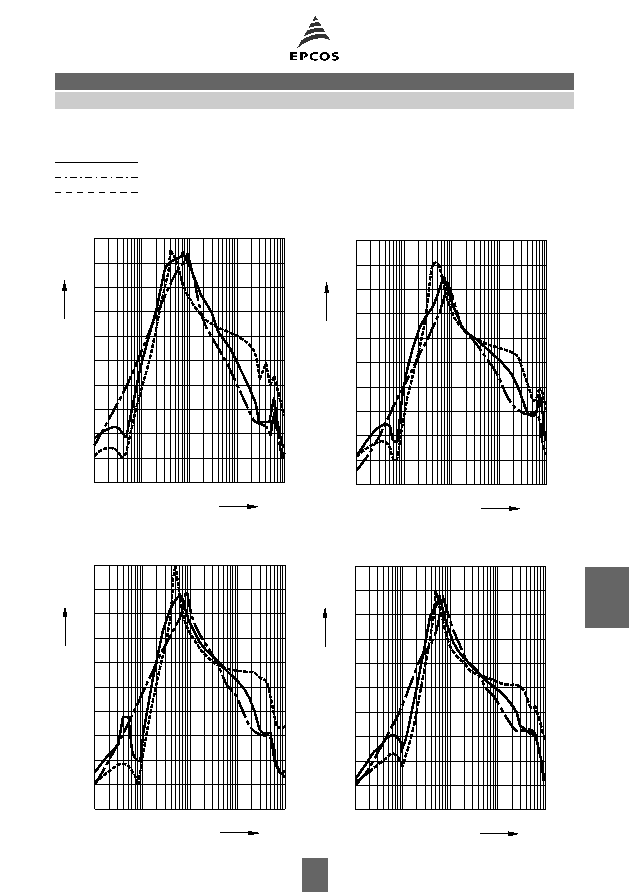

Insertion loss (typical values at Z = 50
Ω)
unsymmetrical, adjacent branches terminated
common mode, all branches in parallel (asymmetrical)
differential mode (symmetrical)
B84143-A25-R21
B84143-A36-R21
B84143-A50-R21/B84143-A80-R21
B84143-A120-R21
SSB1194-J
10 4
Hz
5
10
10 6
10 7
10 8
0
α
e
f
20
40
60
80
dB
100
SSB1195-S
10 4
Hz
5
10
10 6
10 7
10 8
0
α
e
f
20
40
60
80
dB
100
SSB1196-1
10 4
Hz
5
10
10 6
10 7
10 8
0
α
e
f
20
40
60
80
100
dB
SSB1197-9
10 4
Hz
5
10
10 6
10 7
10 8
0
α
e
f
20
40
60
80
dB
100
