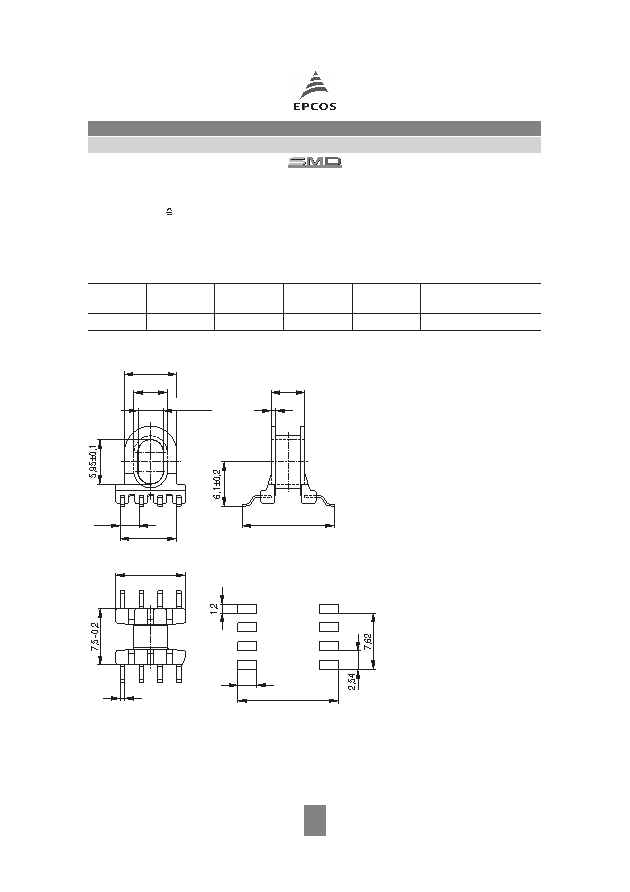

SMD coil former with gullwing terminals

Material:

GFR liquid crystal polymer (UL 94 V-0, insulation class to IEC 60085:

F

max. operating temperature 155 °C), color code natural or black

Solderability: to IEC 60068-2-20, Test Ta, method 1 (aging 3): 350 °C, 1 s

Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350 °C, 3,5 s

permissible soldering temperature for wire-wrap connection on coil former: 400°C, 1 s

Winding:

see “Processing Notes”, page 160

Sections

mm

µΩ

Terminals

Ordering code

1

4,1

22,9

191,8

8

B65858-A1008-T1

FEP0009-P

0,2

0,15

2,54

0,6

12,4±0,2

0,2

0,6

Recommended PCB layout

13,6

2,5

3 x 2,54 = 7,62

3,45+0,15

B65858

Accessories

EPX 7/9

Preliminary data
