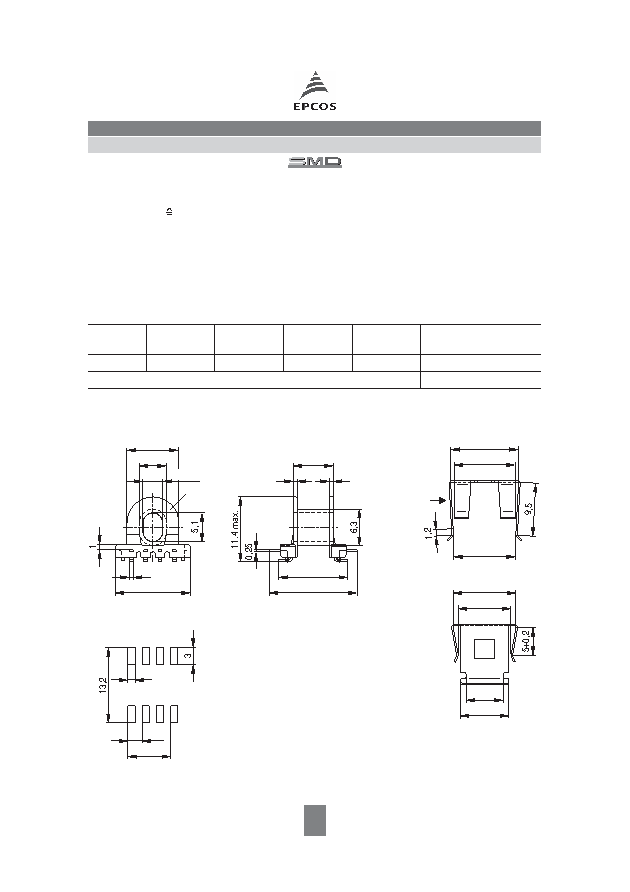

SMD coil former with U terminals

Material:

GFR liquid crystal polymer (UL 94 V-0, insulation class to IEC 60085:

F

max. operating temperature 155 °C), color code black

Solderability: to IEC 60068-2-20, Test Ta, method 1 (aging 3): 235 °C, 2 s

Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350 °C, 3,5 s

permissible soldering temperature for wire-wrap connection on coil former: 400°C, 1 s

Winding:

see “Processing Notes”, page 160

Cap yoke

Without ground terminal, made of stainless spring steel, 0,25 mm thick

Coil former

Cap yoke

Sections

mm

µΩ

Terminals

Ordering code

1

12,4

24,4

67,8

8

B65860-F1108-T1

Cap yoke

B65860-C2000

FEP0015-H

3,5 min.

4,7

9,1 max.

13,2 max.

LCP

0,6

7 max.

0,6

0,6

12,2

15,5 max.

2,54

7,62

1,2

Recommended PCB layout

FEP0016-V

12

10,8

11

9,2

11,1

6,5

8,6

View A

A

B65860

Accessories

EPX 10

Preliminary data
