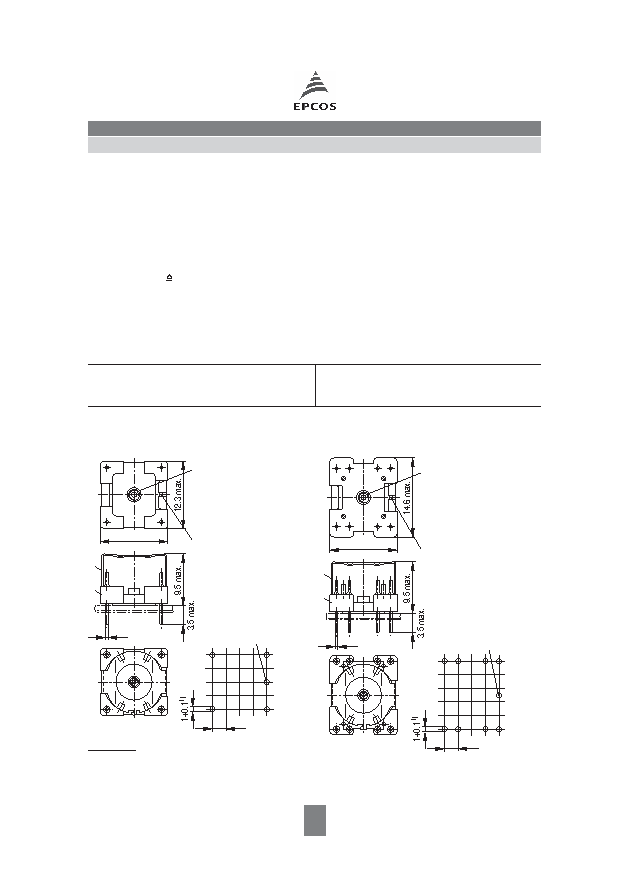

Mounting assembly for printed circuit boards

Terminal carrier

Material:

GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:

F

max. operating temperature 155 °C), color code black

Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): 235 °C, 2 s

Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350 °C, 3,5 s

Yoke

Spring yoke, made of tinned nickel silver (0,25 mm), with ground terminal

4 solder terminals

8 solder terminals

Complete mounting assembly

(4 solder terminals)

Ordering code: B65535-B2

Complete mounting assembly

(8 solder terminals)

Ordering code: B65535-B3

1) 1,3 hole also permissible

a) Yoke

b) Terminal carrier with 4 solder terminals

c) Terminal carrier with 8 solder terminals

FPK0293-D

12,3 max.

2

3

1

4

ø0,5

3

2

4

1

2,54

Erdungspunkt

Erdungsanschluß

M1,4

Gewindeführung für

Abgleichschraube

a

b

FPK0294-L

12,3 max.

ø0,5

8

2,54

Erdungsanschluß

M1,4

Gewindeführung für

Abgleichschraube

3

a

c

41

2

7

6

8

5

5

1

4

Erdungspunkt

Hole arrangement

View in mounting

direction

Ground

M1,4

Thread for

adjusting screw

Ground terminal

Hole arrangement

View in mounting

direction

Ground

M1,4

Thread for

adjusting screw

Ground terminal

B65535

Accessories

P 11

× 7
