4.0x4.0mm RIGHT ANGLE SURFACE MOUNT

LED LAMP

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Part Number: KA-4040ZGS

Green

Features

Single color.

Suitable for all SMT assembly and solder process.

Available on tape and reel.

Ideal for backlighting.

Package : 500pcs / reel.

Moisture sensitivity level : level 3.

RoHS compliant.

Description

The Green source color devices are made with InGaN

on Sapphire Light Emitting Diode.

Static electricity and surge damage the LEDS.

It is recommended to use a wrist band or anti-electrostatic

glove when handling the LEDs.

All devices, equipment and machinery must be electrically

grounded.

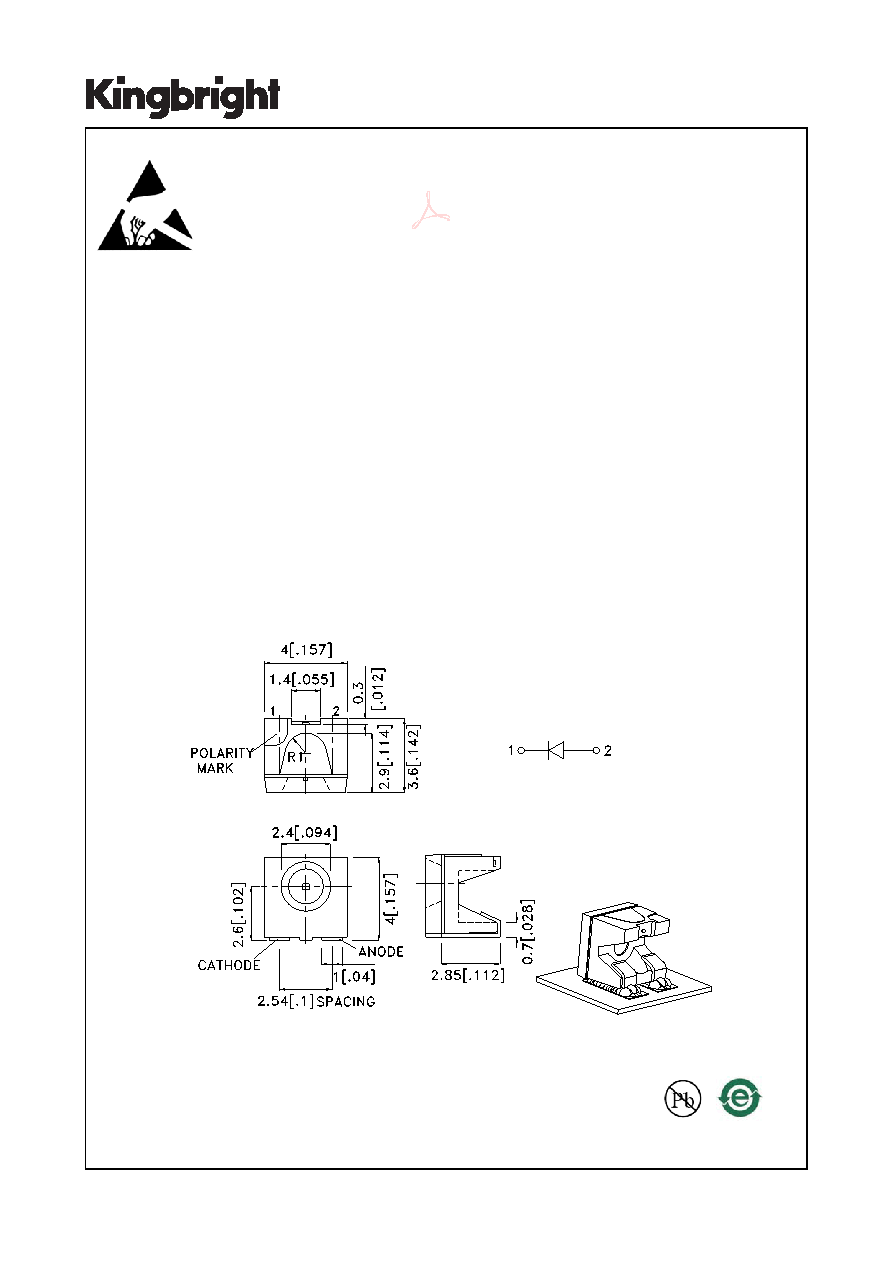

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

4. The device has a single mounting surface. The device must be mounted according to the specifications.
