CUI DEVICES | MODEL: PJ-059B | DESCRIPTION: DC POWER JACK
date 03/15/2023 | page 2 of 3
cuidevices.com

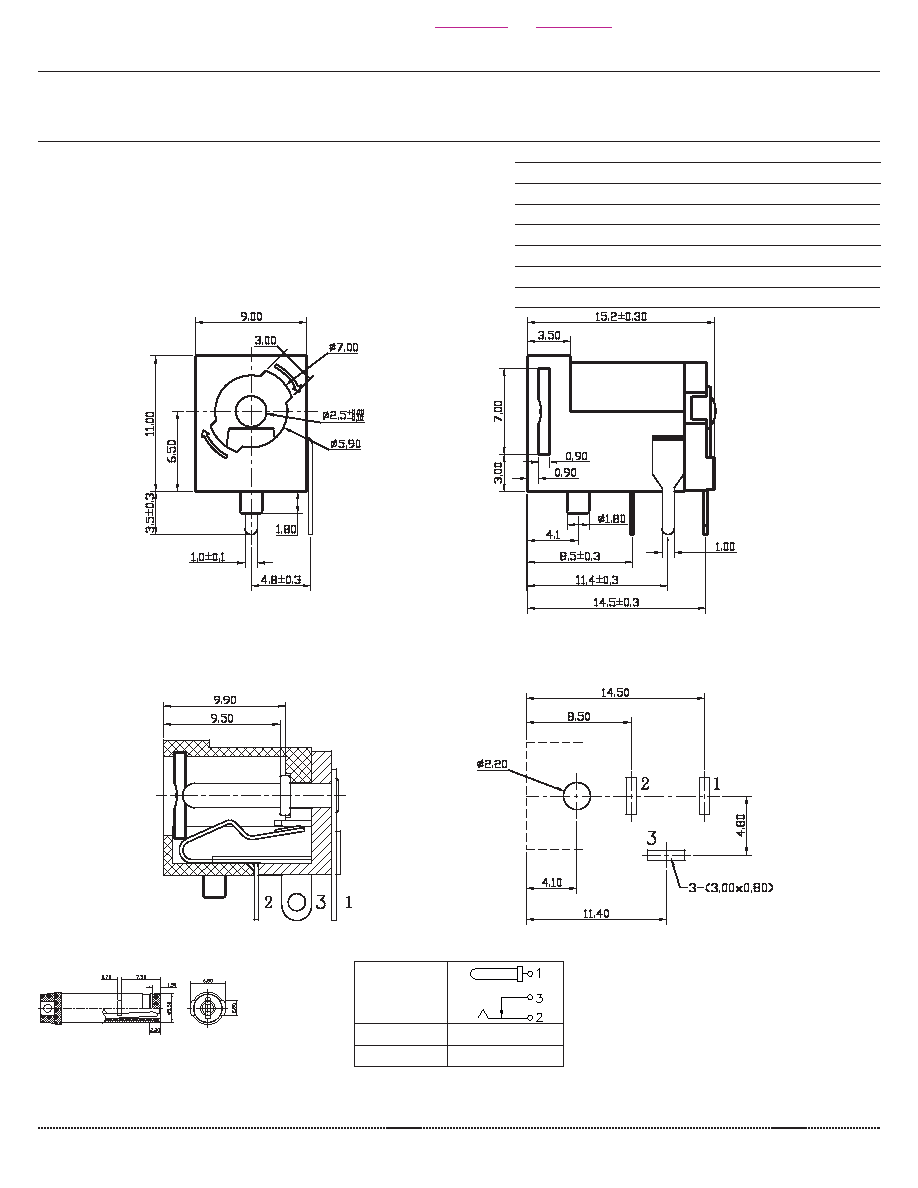

MECHANICAL DRAWING
MATING PLUG
Jack Insertion Depth: 9.5 mm
SCHEMATIC
Model
PJ-059B
Center Pin
Ø2.5 mm
Recommended PCB Layout
Top View
units: mm
tolerance:
X. ±0.50 mm
X.X ±0.30 mm
X.XX ±0.20 mm
X.XXX ±0.10 mm
PCB: ±0.05 mm
unless otherwise specified
DESCRIPTION
MATERIAL
PLATING/COLOR
center pin
brass
nickel
terminal 1
brass t=0.30
tin
terminal 2
bronze t=0.25
tin
terminal 3
brass t=0.30
tin
cover
PBT (UL94V-0)
black
housing
PBT (UL94V-0)
black
Additional Resources: Product Page | PCB Footprint
