PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

5CLIN

8NC

NC 4

6NC

RFIN 2

7RFOUT

NC 3

NC1

PIN 1

INDICATOR

TOP VIEW

(Not to Scale)

ADL5533

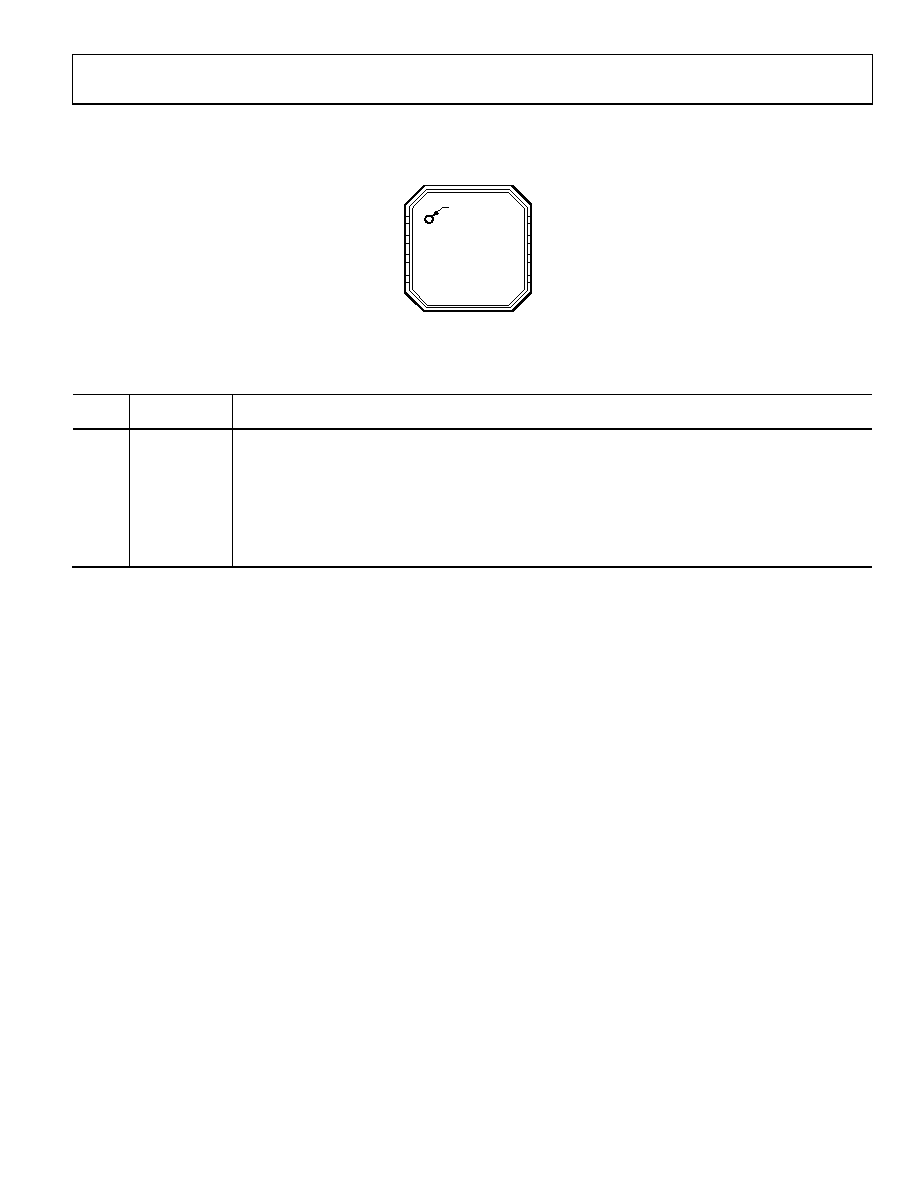

Figure 2. Pin Configuration

Table 3. Pin Function Descriptions Single

Pin

No.

Mnemonic

Description

2

RFIN

RF Input: Requires a DC blocking capacitor.

7

RFOUT

RF Output and Bias: DC bias is provided to this pin through an inductor. RF path requires a DC blocking

capacitor.

1, 3, 4,

6, 8

NC

No Connect

5

CLIN

A 10 nF capacitor connected between pin 5 and ground provides decoupling for the on board linearizer.

Exposed

Paddle

Internally connected to GND. Solder to a low impedance ground plane
