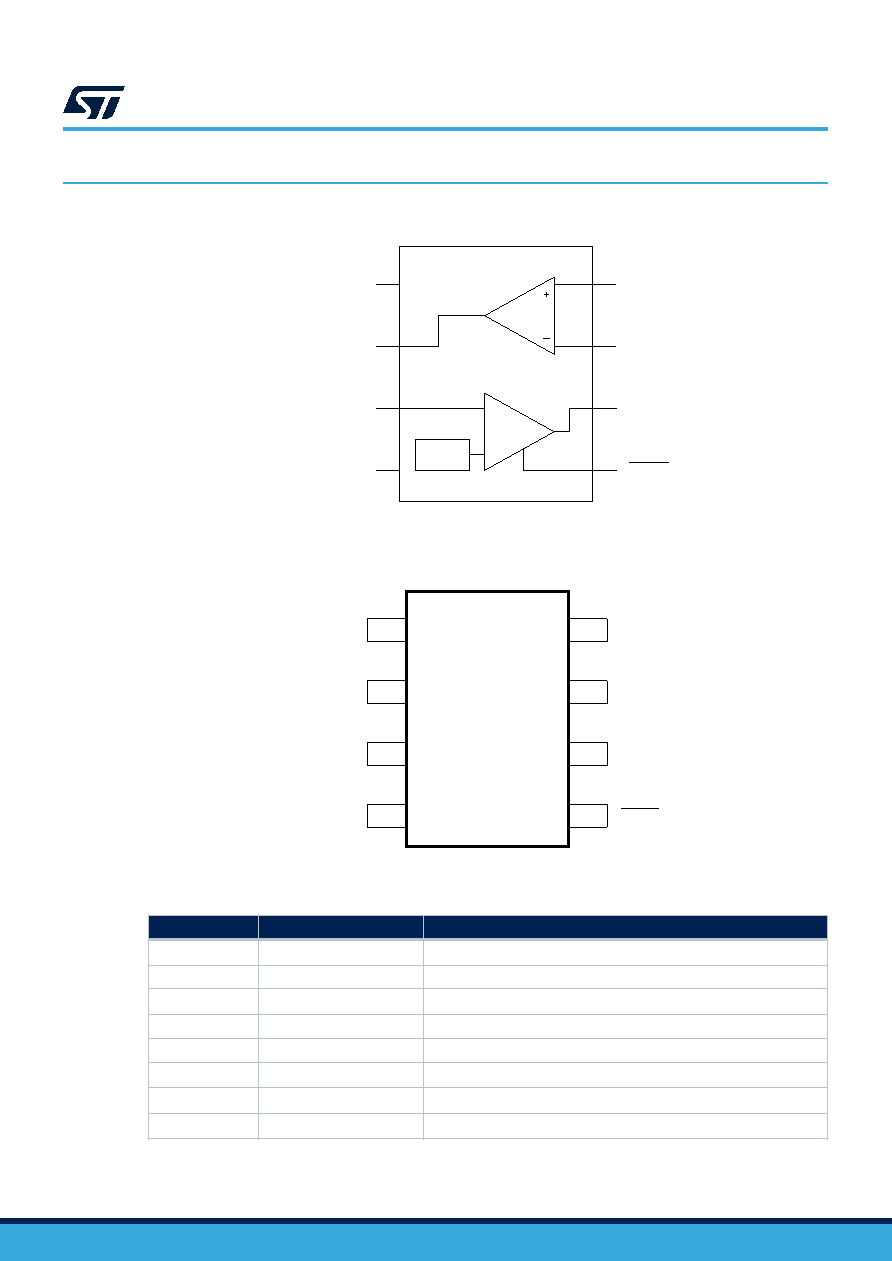

2 / 34 page ![]() 1 Block diagram and pin description Figure 1. Block diagram + – Comparator Gain 0.6 V VIN+ VIN- CMPOUT RESET VCC OUT CMP GND IN Reference Figure 2. Pin connections (top view) VIN+ VIN- CMPOUT RESET VCC OUT CMP GND 8 7 6 5 1 2 3 4 IN Table 1. Pin description Pin Pin name Description 1 VCC Supply voltage 2 OUT Current sense amplifier, output 3 CMPIN Comparator input 4 GND Ground 5 RESET Comparator reset pin, active low 6 CMPOUT Comparator output 7 VIN- Current sense amplifier, negative input 8 VIN+ Current sense amplifier, positive input TSC200, TSC201, TSC202 Block diagram and pin description DS13882 - Rev 2 page 2/34 |
|
