ADRF5162

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

analog.com

Rev. 0 | 7 of 11

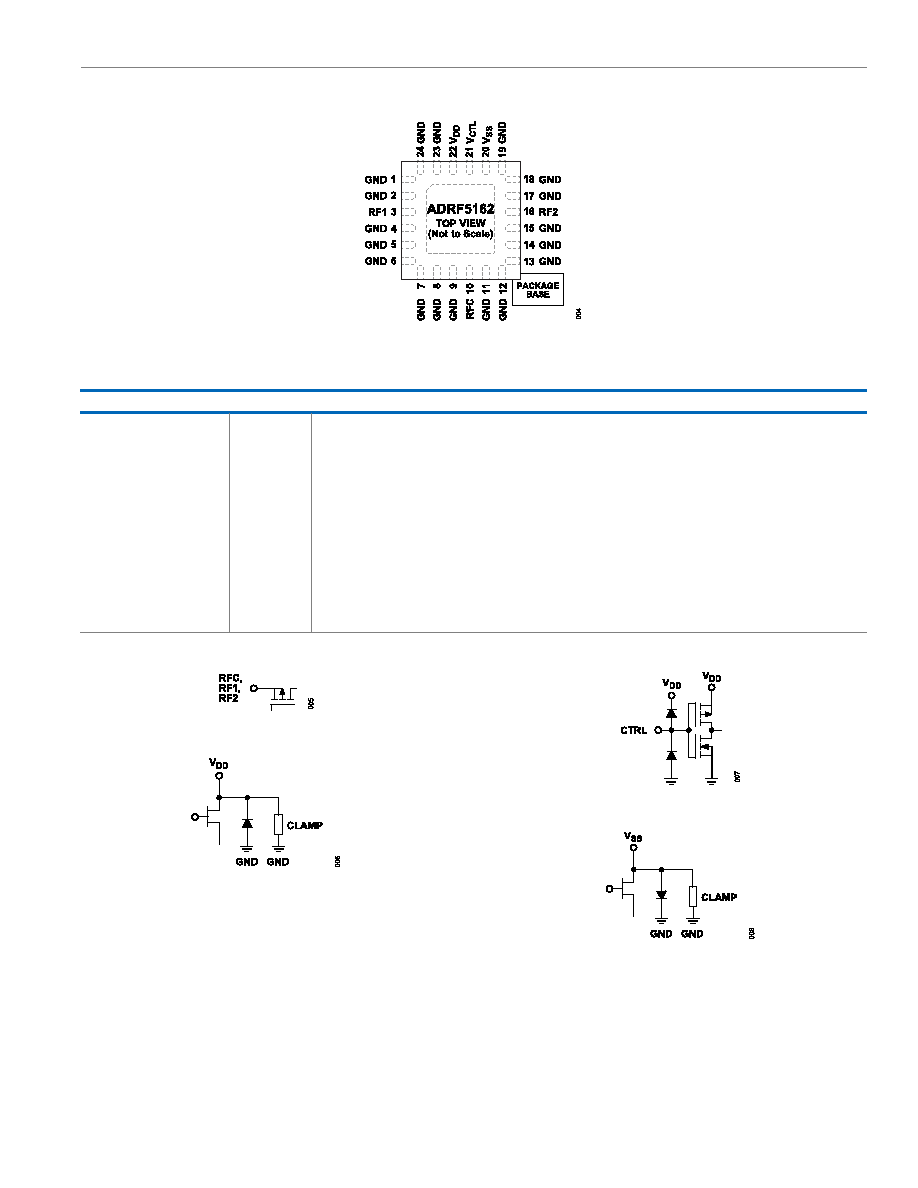

Figure 4. Pin Configuration (Top View)

Table 5. Pin Function Descriptions

Pin No.

Mnemonic

Description

1, 2, 4 to 9, 11 to 15, 17 to 19,

23, 24

GND

Ground. These pins must be connected to the RF/DC ground of the PCB.

3

RF1

RF Throw Port 1. This pin is DC-coupled to 0 V and AC matched to 50 Ω. No DC blocking capacitor is required when the

RF line potential is equal to 0 V DC.

10

RFC

RF Common Port. This pin is DC-coupled to 0 V and AC matched to 50 Ω. No DC blocking capacitor is required when the

RF line potential is equal to 0 V DC.

16

RF2

RF Throw Port 2. This pin is DC-coupled to 0 V and AC matched to 50 Ω. No DC blocking capacitor is required when the

RF line potential is equal to 0 V DC.

20

VSS

Negative Supply Voltage.

21

CTRL

Control Input. For the truth table, see Table 6.

22

VDD

Positive Supply Voltage.

EPAD

Exposed Pad. The exposed pad must be connected to the RF/DC ground of the PCB.

INTERFACE SCHEMATICS

Figure 5. RF Pins (RFC, RF1, and RF2)

Figure 6. VDD Pin

Figure 7. Digital Pin (CTRL)

Figure 8. VSS Pin
