O-CS41 Series

41 x 30 x 16 mm

Datasheet #2213A

Precision Ultra Low Phase Noise OCXO in 41x30mm SMD Package with

OSC Disable and Oven Alarm features for Instrumentation

Revision [B]: 12/19/2023

www.nelfc.com

Not all combinations are available. Consult Factory.

Packaging

Blank

Bulk

Output Frequency

Please specify the frequency in units of MHz

out to 3-digit accuracy after the decimal.

Example: 10.000MHZ

Supply Voltage

Code

Specification

F

12V, NOM

Environmental

Code

Specification

R

RoHS complaint, not designed for

reflow

Output

Code

Specification

S

Sinewave

Aging

Code

Specification

05

5E-10 = 0.5 ppb/day

Temperature Stability

Code

Specification

59

5x10-9

19

E grade 1x10-9

Phase Noise (see Table)

Code

Specification

X

Per Table

Operating Temperature Range

Code

In 5ºC steps

GX

-10°C to 75°C*

IX

0°C to 75°C, E grade

Operable to 80°C

Deviation Slope

Code

Specification

P

Positive, 0 to Vref

Temperature Code Table

Letter

Temp °C

Letter

Temp °C

Letter

Temp °C

Letter

Temp °C

Letter

Temp °C

Letter

Temp °C

A

-40

F

-15

K

10

P

35

U

60

Z

85

B

-35

G

-10

L

15

Q

40

V

65

C

-30

H

-5

M

20

R

45

W

70

D

-25

I

0

N

25

S

50

X

75

E

-20

J

5

O

30

T

55

Y

80

OCXO

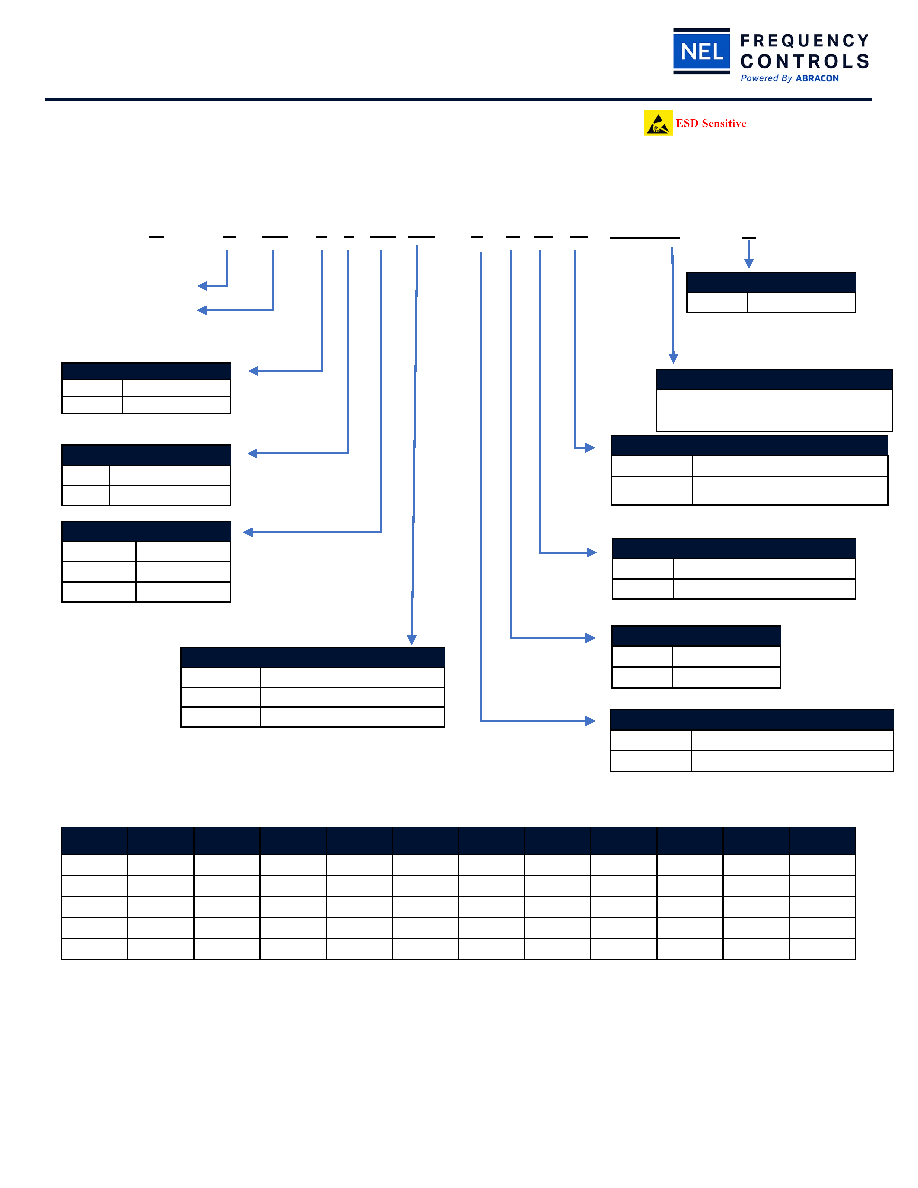

Creating a Part Number

Conventional Power

Package Code

SMD 41x30x16, 6 pads

O -

C

S41

F S XX XX -

P - X - 05 – R – XX.XXX MHZ - X

Notes:

2* It’s assumed that phase noise test is performed under static conditions (no vibration), in still air, and care is taken for minimizing EMI. Cross correlation

method is recommended with equipment having adequate performance

3* Longer storage time, especially at low temperatures, may affect both retrace and setability parameters. It may require few days on power for re-stabilization

4) All parameters, unless otherwise specified, are at nominal conditions, i.e.: T=25°C, Nominal Vcc & Nominal Load.

5) Additional retrace from OSC DIS to OSC EN is within normal aging and temperature stability range of frequency deviation. Cannot be specified separately.

6* E grade phase noise test is performed with internal bias to Vc = 2.5 V, provided by resistive divider from Vref. Resistors are low noise metal film. After the

test the bias is removed.
