SMT TOROID INDUCTOR

SMT TOROID INDUCTOR

SMT TOROID INDUCTOR

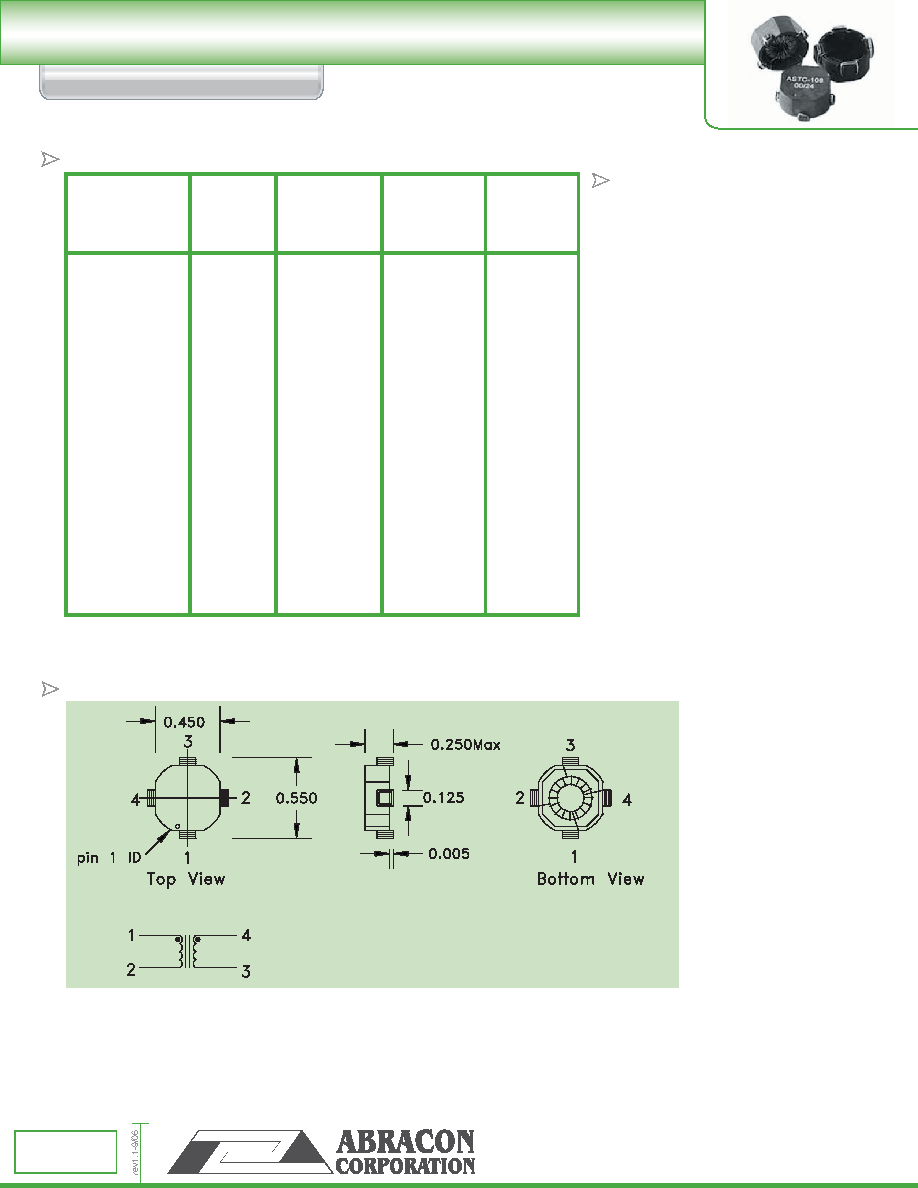

ASTC-04 SERIES

|||||||||||||||

STANDARD SPECIFICATIONS:

PHYSICAL CHARACTERISTICS:

TECHNICAL INFORMATION:

• Inductance measured @ 100KHz, 0.1VRMS

• Turns Ratio: 1:1± 2%

• Hipot: 250VRMS, 1 minutes between windings

• Operating Temperature: -40°C to 85°C

• Package: Tape and Reel is standard

Add -T for Tape and Reel

RoHS compliance effective 0526,

label on reel and box

Dimension: inch

Part

L (µH)

Full load

DCR Max

DC Bias

Number

± 20%

Inductance

Parallel

Parallel

(µH) Min

(mΩ)(A)

ASTC-04-R47

0.44

0.32

4

7.00

ASTC-04-R68

0.78

0.55

5

6.00

ASTC-04-1

1.23

0.85

5

5.00

ASTC-04-2

1.76

1.06

7

5.90

ASTC-04-3

4.90

2.59

14

4.40

ASTC-04-4

8.28

4.29

19

3.50

ASTC-04-5

9.60

4.82

20

3.40

ASTC-04-6

14.16

6.76

24

3.00

ASTC-04-7

19.60

10.68

55

2.10

ASTC-04-8

25.92

13.32

64

2.00

ASTC-04-9

33.12

16.82

72

1.80

ASTC-04-10

50.18

25.03

111

1.50

ASTC-04-11

67.08

35.29

158

1.20

ASTC-04-12

99.23

54.56

303

0.92

ASTC-04-13

148.23

77.17

372

0.82

ASTC-04-14

200.70

111.08

545

0.64

ASTC-04-15

298.12

147.92

672

0.62

ABRACON IS

ABRACON IS

ISO 9001 / QS 9000

ISO 9001 / QS 9000

CERTIFIED

CERTIFIED

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688
