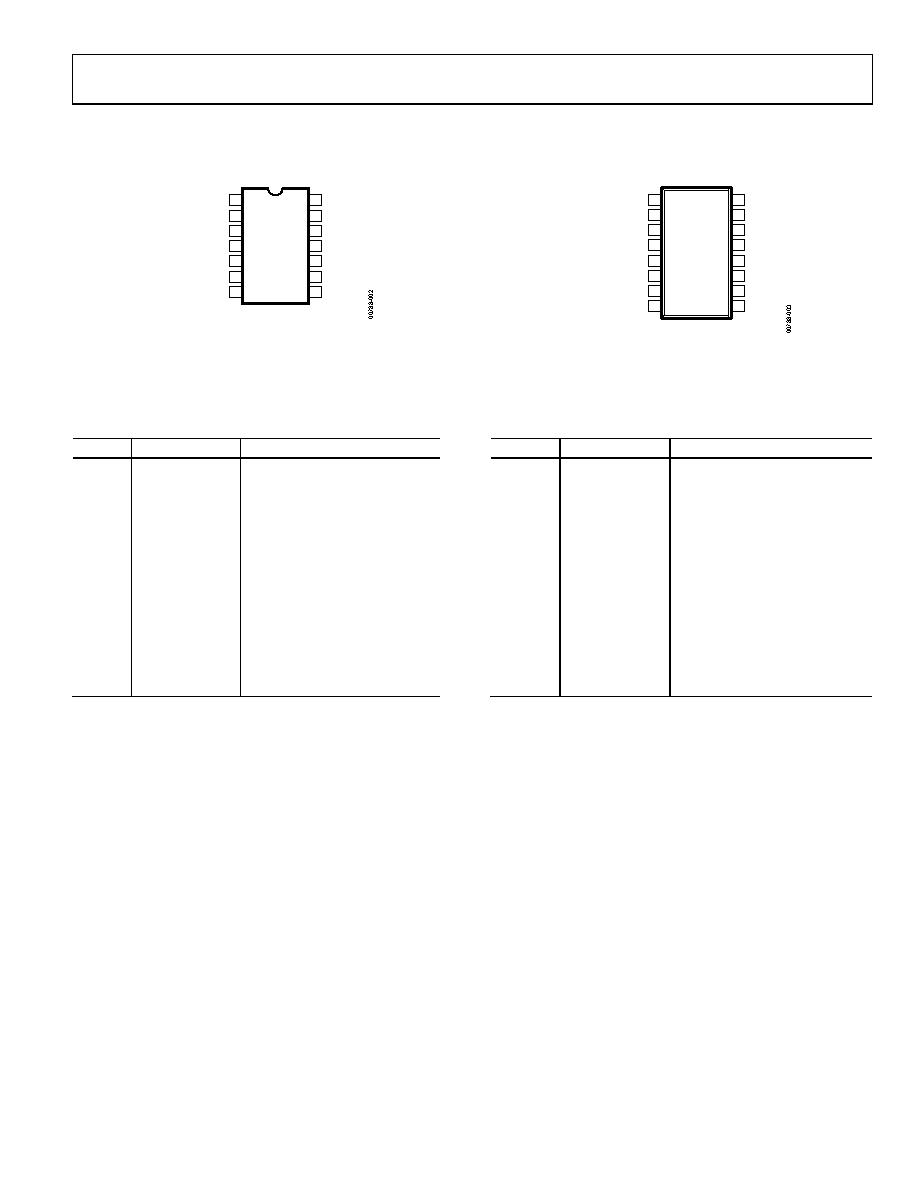

Data Sheet
AD637
PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS
BUFF IN 1
NIC
2
COMMON
3
OUTPUT OFFSET 4
BUFF OUT
14
VIN
13
NIC
12
+VS
11
CS
5
–VS
10
DEN INPUT
6
RMS OUT
9
dB OUTPUT
7
CAV
8
NIC = NO INTERNAL CONNECTION
AD637
TOP VIEW
(Not to Scale)
Figure 2. 14-Lead SBDIP/CERDIP Pin Configuration
BUFF IN 1
NIC
2
COMMON
3
OUTPUT OFFSET 4
BUFF OUT
16
VIN
15
NIC
14
+VS
13
CS
5
–VS
12
DEN INPUT
6
RMS OUT
11
dB OUTPUT
7
CAV
10
NIC
8
NIC
9
NIC = NO INTERNAL CONNECTION
AD637
TOP VIEW
(Not to Scale)
Figure 3. 16-Lead SOIC_W Pin Configuration
Table 5. 14-Lead SBDIP/CERDIP Pin Function Descriptions
Pin No.
Mnemonic
Description
1
BUFF IN
Buffer Input
2, 12
NIC
No Internal Connection
3
COMMON
Analog Common
4
OUTPUT OFFSET
Output Offset
5
CS
Chip Select
6
DEN INPUT
Denominator Input
7
dB OUTPUT
dB Output
8
CAV
Averaging Capacitor Connection
9
RMS OUT
RMS Output
10
−VS
Negative Supply Rail
11
+VS
Positive Supply Rail
13
VIN
Signal Input
14
BUFF OUT
Buffer Output
Table 6. 16-Lead SOIC_W Pin Function Descriptions
Pin No.
Mnemonic
Description
1
BUFF IN
Buffer Input
2, 8, 9, 14
NIC
No Internal Connection
3
COMMON
Analog Common
4
OUTPUT OFFSET
Output Offset
5
CS
Chip Select
6
DEN INPUT
Denominator Input
7
dB OUTPUT
dB Output
10
CAV
Averaging Capacitor Connection
11
RMS OUT
RMS Output
12
−VS
Negative Supply Rail
13
+VS
Positive Supply Rail
15
VIN
Signal Input
16
BUFF OUT
Buffer Output
Rev. L | Page 11 of 25
