AD737

Data Sheet

Rev. J | Page 8 of 24

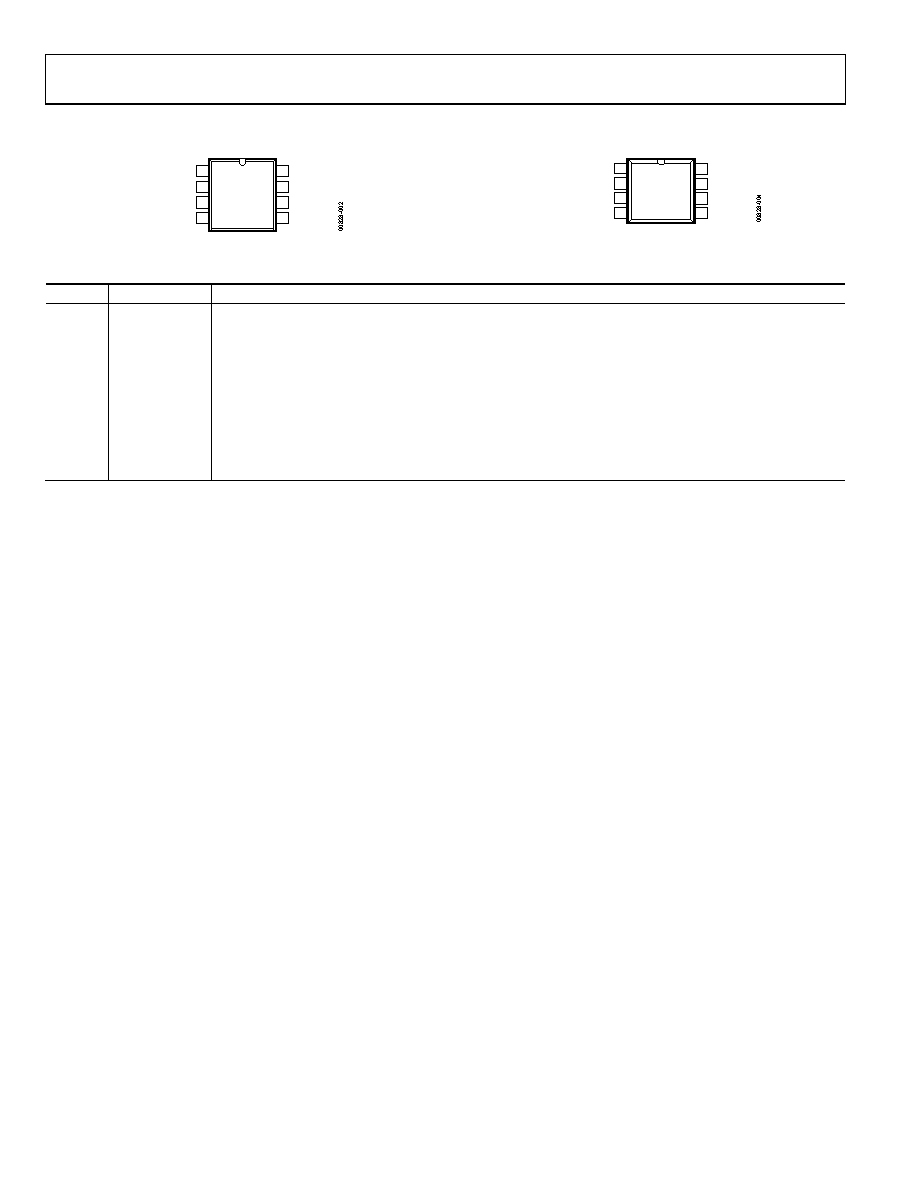

PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS

Figure 2. SOIC_N Pin Configuration (R-8)

Figure 3. PDIP Pin Configuration (N-8)

Table 4. Pin Function Descriptions

Pin No.

Mnemonic

Description

1

CC

Coupling Capacitor Connection for Indirect DC Coupling to Pin 2. In addition, CC is an alternative low

impedance input access to an 8 kΩ voltage to current (V to I) resistor.

2

VIN

RMS Input to FET.

3

POWER DOWN

Disables the AD737. When Pin 3 is grounded or pulled low, the AD737 is enabled; when Pin 3 is pulled high, it

changes to power saving mode.

4

–VS

Negative Power Supply.

5

CAV

Averaging Capacitor Connection.

6

OUTPUT

DC Output (Negative Going Polarity).

7

+VS

Positive Power Supply.

8

COM

Common.

CC 1

VIN 2

POWER DOWN 3

–VS 4

COM

8

+VS

7

OUTPUT

6

CAV

5

AD737

TOP VIEW

(Not to Scale)

1

2

3

4

8

7

6

5

AD737

TOP VIEW

(Not to Scale)

CC

VIN

POWER DOWN

–VS

COM

+VS

OUTPUT

CAV
