 11 / 28 page
background image
1997 Nov 04
11
Philips Semiconductors
Product specification
IC card interface
TDA8002

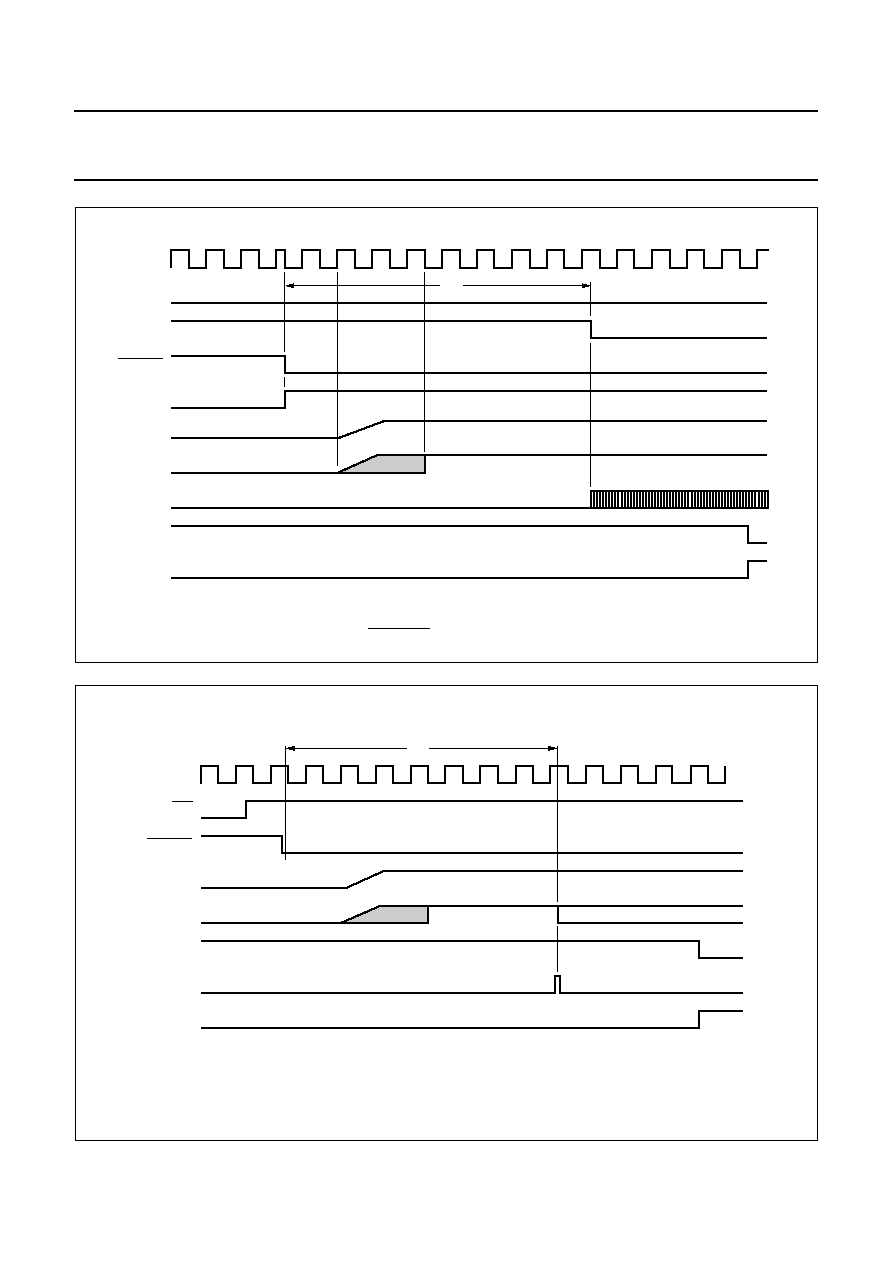

Fig.9 Activation sequence using CMDVCC, CLKDIV1 and CLKDIV2 signals to enable CLK.
handbook, full pagewidth
MGE737
OSC_INT/64
CMDVCC
VUP
VCC
I/O
CLK
RSTIN
RST
high - Z
tact
t0
t1
t2
t3
CLKDIV1
CLKDIV2
Fig.10 Activation sequence for synchronous application.
handbook, full pagewidth
MGE738
OSC_INT/64
VCC
I/O
RSTIN
RST
STROBE
high - Z
tact
CMDVCC
PRES, OFF
