2N65-TC
Power MOSFET
UNISONIC TECHNOLOGIES CO., LTD
4 of 7
www.unisonic.com.tw
QW-R205-435.B

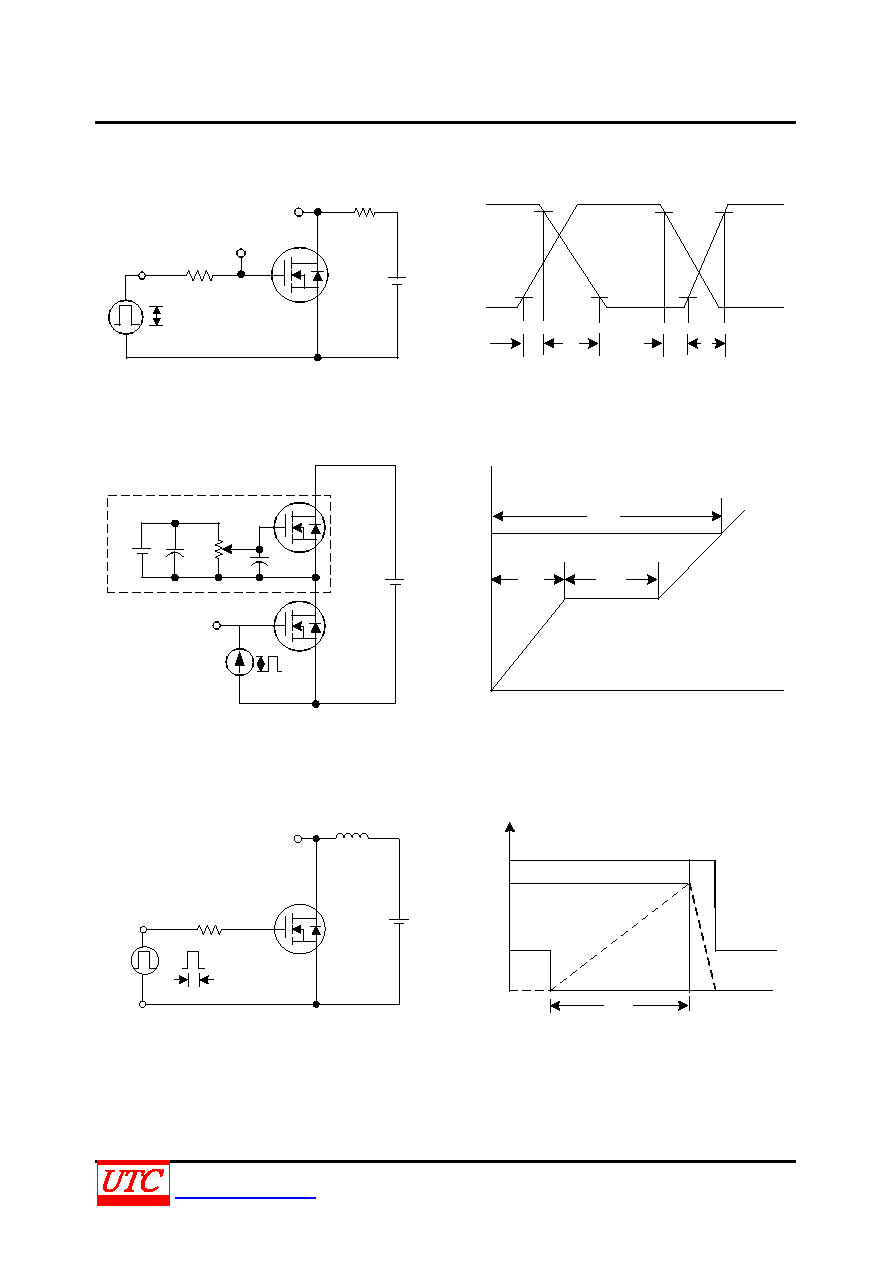

TEST CIRCUITS AND WAVEFORMS
VGS
D.U.T.
RG
VDS
RL
VDD
Pulse Width
≤ 1μs
Duty Factor
≤0.1%
VDS
90%
10%
VGS
tD(ON)
tR
tD(OFF)
tF
Switching Test Circuit
Switching Waveforms
DUT
VDS
Same Type
as D.U.T.
VGS
Charge
QGS
QGD
QG
VGS
Gate Charge Test Circuit
Gate Charge Waveform
D.U.T.
RD
VDS
L
VDD
tp
VDD
tp
Time
BVDSS
IAS
ID(t)
VDS(t)
Unclamped Inductive Switching Test Circuit
Unclamped Inductive Switching Waveforms
