Data Sheet
AD823A
Rev. | Page 7 of 20

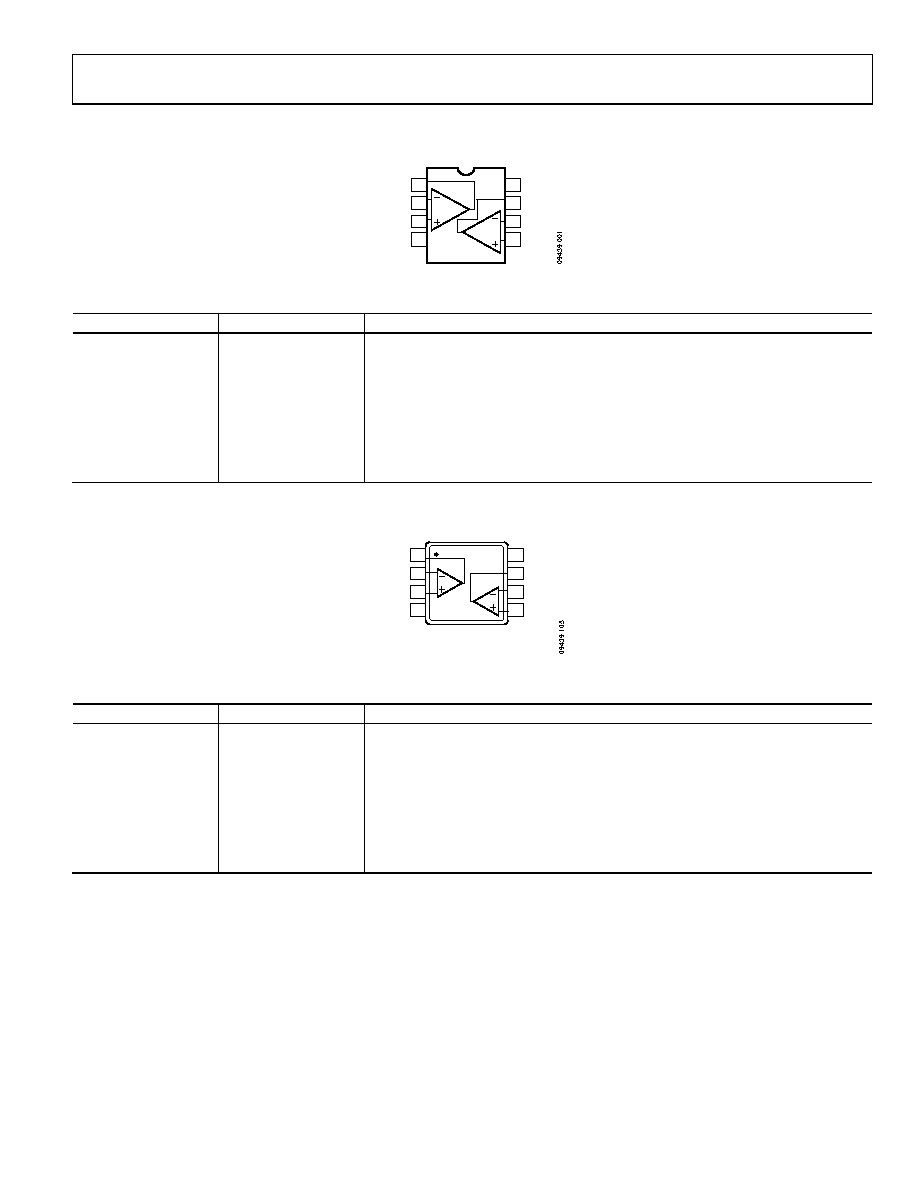

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
AD823A
OUT1
+IN2
–IN2
OUT2
+VS
–IN1
+IN1
–VS
1
2
3
4
8
7
6
5
Figure 5. 8-Lead SOIC Pin Configuration
Table 6. Pin Function Descriptions
Pin No.
Mnemonic
Description
1
OUT1
Output 1.
2
−IN1
Inverting Input 1.
3
+IN1
Noninverting Input 1.
4
−VS
Negative Supply.
5
+IN2
Noninverting Input 2.
6
−IN2
Inverting Input 2.
7
OUT2
Output 2.
8
+VS
Positive Supply.
OUT1
1
–IN1
2
+IN1
3
–VS 4
+VS
8
OUT2
7
–IN2
6
+IN2
5
AD823A
TOP VIEW
(Not to Scale)
Figure 6. 8-Lead MSOP Pin Configuration
Table 7. Pin Function Descriptions
Pin No.
Mnemonic
Description
1
OUT1
Output 1.
2
−IN1
Inverting Input 1.
3
+IN1
Noninverting Input 1.
4
−VS
Negative Supply.
5
+IN2
Noninverting Input 2.
6
−IN2
Inverting Input 2.
7
OUT2
Output 2.
8
+VS
Positive Supply.
